McLaren Senna GTR - 7 - CLOSURES - 7.2 - DOORS STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AD151CP ASSY DOOR COUPE-NON-AUDIO-LH $99,759.57 To Order
15AD098CP DOOR ASSY - NON AUDIO - LH $87,969.79 To Order
15AC519CP DOOR ASSY - NON AUDIO - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
15AD152CP DOOR ASSY - NON AUDIO - RH $99,759.57 To Order
15AD099CP DOOR ASSY - NON AUDIO - RH $87,969.79 To Order
15AC523CP DOOR ASSY - NON AUDIO - RH Enquire To Order
Photo Part No Description Price (each) Stock
15AA093RP ASSY DOOR BLADE LH $4,758.44 To Order
Photo Part No Description Price (each) Stock
00RB103 Trim Panel Clip - Raymond - 017842 Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
15AD160CP DOOR FR ACCESS PNL-RH-MACHINED Enquire To Order
Photo Part No Description Price (each) Stock
14AB825CP DOOR PANEL - UPPER - CARBON - OPTION - LH Enquire To Order
14AB797CP DOOR PANEL - UPPER - CARBON - FOR PAINT - LH $463.23 To Order
Photo Part No Description Price (each) Stock
14AB816CP DOOR PANEL - UPPER - CARBON - FOR PAINT - RH $463.23 To Order
14AB831CP DOOR PANEL - UPPER - CARBON - OPTION - RH Enquire To Order
Photo Part No Description Price (each) Stock
15AA095RP ASSY DOOR BLADE RH $4,758.44 To Order
Photo Part No Description Price (each) Stock
15AA543RP ASSY EXTENSION DOOR BLADE FIN $3,965.36 To Order
15AA229RP ASSY EXTENSION DOOR BLADE FIN - FINISHER LH - CFG $3,965.36 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15AA545RP ASSY EXTENSION DOOR BLADE FIN $3,965.36 To Order
15AA225RP ASSY EXTENSION DOOR BLADE FIN - FINISHER RH - CFG $3,965.36 To Order

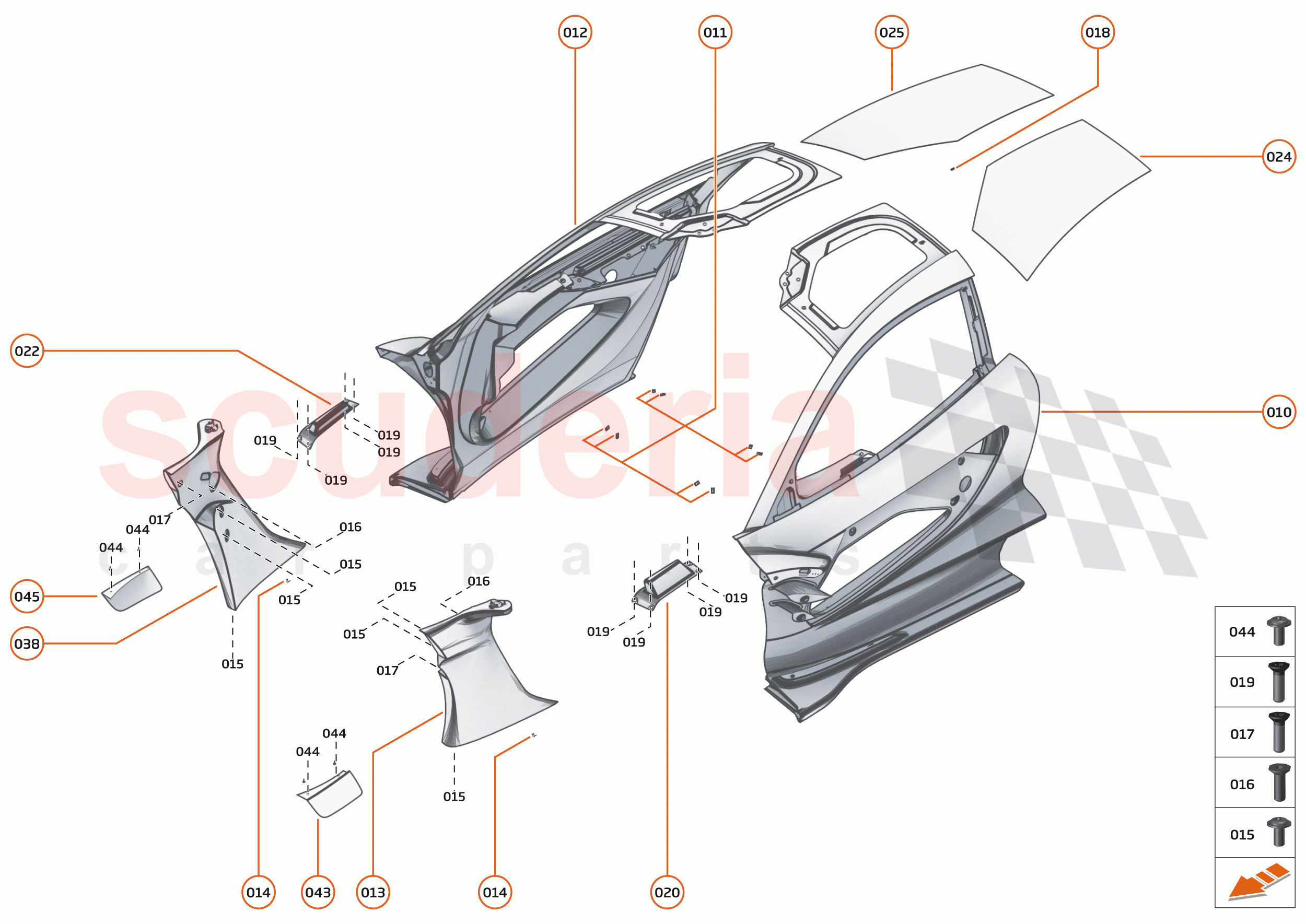

7 - CLOSURES - 7.2 - DOORS STRUCTURE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AD151CP
ASSY DOOR COUPE-NON-AUDIO-LH 		$99,759.57 1
TO
010 15AD098CP
DOOR ASSY - NON AUDIO - LH 		$87,969.79 1
TO
010 15AC519CP
DOOR ASSY - NON AUDIO - LH 		- 1
PE
 Enquire
011 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- 4
PE
 Enquire
012 15AD152CP
DOOR ASSY - NON AUDIO - RH 		$99,759.57 1
TO
012 15AD099CP
DOOR ASSY - NON AUDIO - RH 		$87,969.79 1
TO
012 15AC523CP
DOOR ASSY - NON AUDIO - RH 		- 1
PE
 Enquire
013 15AA093RP
ASSY DOOR BLADE LH 		$4,758.44 1
TO
014 00RB103
Trim Panel Clip - Raymond - 017842 		- 1
PE
 Enquire
015 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- -
PE
 Enquire
015 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- -
PE
 Enquire
016 00RA311
Screw - M6x16 - Hex Socket 		- 1
PE
 Enquire
019 00RA635
COUNTERSUNK - TORX HEAD SCREW M5X16 		- 4
PE
 Enquire
020 15AD159CP
DOOR FR ACCESS PANEL-LH-MACHIN 		- 1
PE
 Enquire
022 15AD160CP
DOOR FR ACCESS PNL-RH-MACHINED 		- 1
PE
 Enquire
024 14AB825CP
DOOR PANEL - UPPER - CARBON - OPTION - LH 		- 1
PE
 Enquire
024 14AB797CP
DOOR PANEL - UPPER - CARBON - FOR PAINT - LH 		$463.23 1
TO
025 14AB816CP
DOOR PANEL - UPPER - CARBON - FOR PAINT - RH 		$463.23 1
TO
025 14AB831CP
DOOR PANEL - UPPER - CARBON - OPTION - RH 		- 1
PE
 Enquire
038 15AA095RP
ASSY DOOR BLADE RH 		$4,758.44 1
TO
040 15AA753CP
PANEL - DOOR LOWER - LH 		- 1
PE
 Enquire
041 15AA754CP
PANEL - DOOR LOWER - RH 		- 1
PE
 Enquire
043 15AA543RP
ASSY EXTENSION DOOR BLADE FIN 		$3,965.36 1
TO
043 15AA229RP
ASSY EXTENSION DOOR BLADE FIN - FINISHER LH - CFG 		$3,965.36 1
TO
044 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- -
PE
 Enquire
045 15AA545RP
ASSY EXTENSION DOOR BLADE FIN 		$3,965.36 1
TO
045 15AA225RP
ASSY EXTENSION DOOR BLADE FIN - FINISHER RH - CFG 		$3,965.36 1
TO
