McLaren Senna GTR - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AA551RP ASSY ACCESS PNL-WASHER FLUID - $2,204.73 To Order
15AA091RP ASSY ACCESS PNL-WASHER FLUID - - WASHER FLUID - CFG $1,871.64 To Order
15AC914CP ACCESS PANEL - WASHER FLUID - GLOSS CARBON Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15AA553RP ASSY FR CLAM INR - CFS $19,025.88 To Order
15AA367RP ASSY FR CLAM INR - CFG $19,025.88 To Order
15AD172CP INNER CLAM - FRONT - DARK GLOSS CARBON Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA410 BOLT - BUTTON - FLANGE - M6X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
15AA420RP QR PIT KING HEAD $206.18 To Order
Photo Part No Description Price (each) Stock
12A4099RP WASHER - NYLON 20X37X3 $2.92 To Order
Photo Part No Description Price (each) Stock
15AA421RP QR PIT KING TOP HAT - M6 X 1 X $126.88 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC016 WASHER - M6X12.5X1.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC056 Washer - M5x12.5x1 Form C Enquire To Order

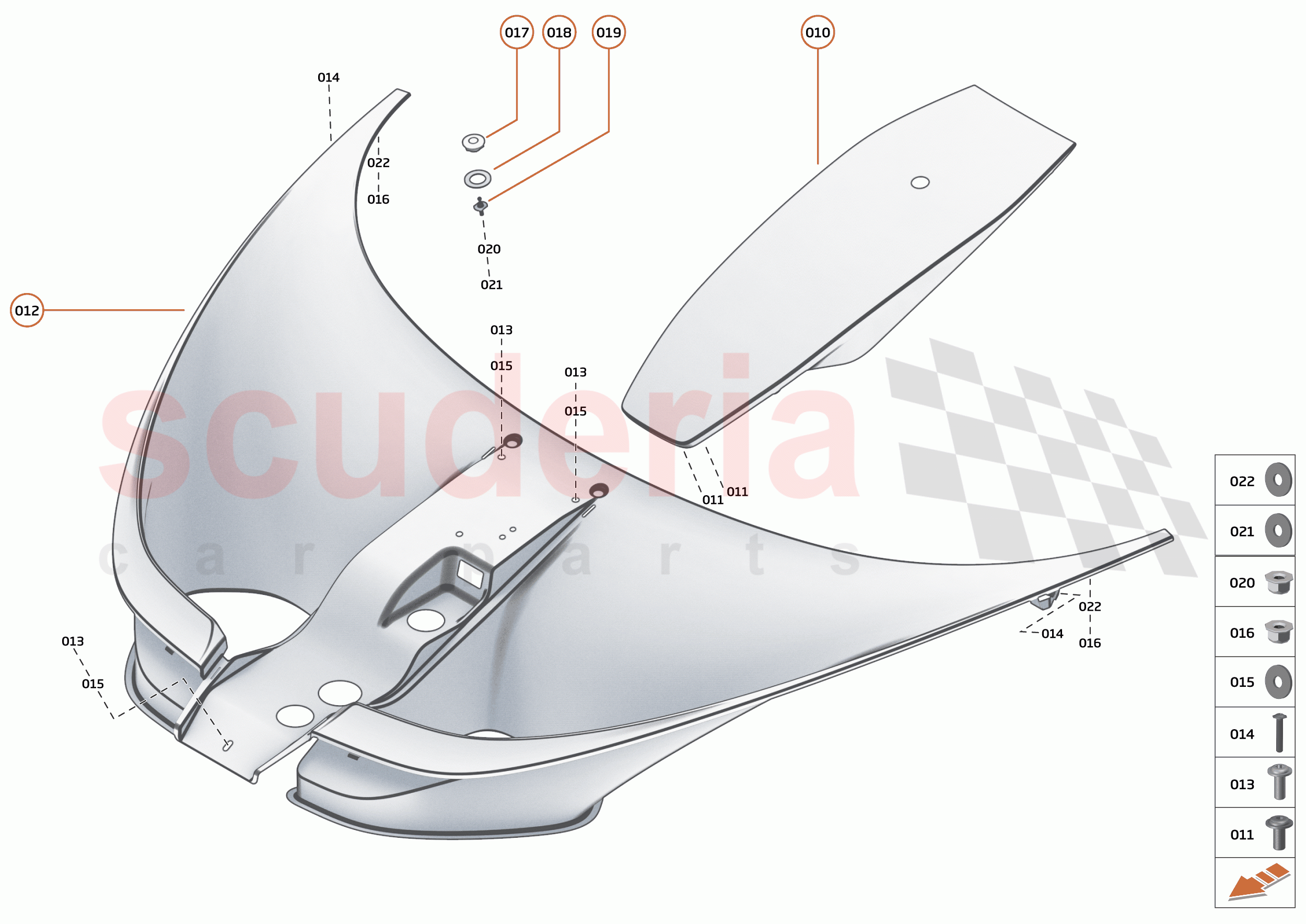

7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AA551RP
ASSY ACCESS PNL-WASHER FLUID - 		$2,204.73 1
TO
010 15AA091RP
ASSY ACCESS PNL-WASHER FLUID - - WASHER FLUID - CFG 		$1,871.64 1
TO
010 15AC914CP
ACCESS PANEL - WASHER FLUID - GLOSS CARBON 		- 1
PE
 Enquire
011 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
012 15AA553RP
ASSY FR CLAM INR - CFS 		$19,025.88 1
TO
012 15AA367RP
ASSY FR CLAM INR - CFG 		$19,025.88 1
TO
012 15AD172CP
INNER CLAM - FRONT - DARK GLOSS CARBON 		- 1
PE
 Enquire
013 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 3
PE
 Enquire
014 00RA410
BOLT - BUTTON - FLANGE - M6X40 		- 2
PE
 Enquire
015 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 3
PE
 Enquire
016 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 2
PE
 Enquire
017 15AA420RP
QR PIT KING HEAD 		$206.18 1
TO
018 12A4099RP
WASHER - NYLON 20X37X3 		$2.92 1
TO
019 15AA421RP
QR PIT KING TOP HAT - M6 X 1 X 		$126.88 1
TO
020 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
021 00RC016
WASHER - M6X12.5X1.8 		- 1
PE
 Enquire
022 00RC056
Washer - M5x12.5x1 Form C 		- -
PE
 Enquire
