4 - Floors - 4.4 - Rear Non-Structural Floors

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AA513RP ASSY RR DIFFUSER - CFS $67,474.33 To Order
15AA071RP ASSY RR DIFFUSER - CFG $72,576.39 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC103 WASHER - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
15AA355RP SCR-CAP HD-HX-M5X0.8X15-SS-00 $6.78 To Order
Photo Part No Description Price (each) Stock
15AA329RP CLEVIS UPR DIFFUSER STAY $396.52 To Order
Photo Part No Description Price (each) Stock
15AA292RP CLEVIS LWR DIFFUSER STAY $634.45 To Order
Photo Part No Description Price (each) Stock
15AA289RP BAR STAY DIFFUSER M5 X 140MM $130.89 To Order
Photo Part No Description Price (each) Stock
15AA290RP CLIP SNAP-LOCK CLEVIS M5 X 20M $26.15 To Order
Photo Part No Description Price (each) Stock
00RA152 SCREW CAP - M6X25 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
00RC097 WASHER - 6.4X12X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA739 HALF NUT M5 X 0.8 Enquire To Order

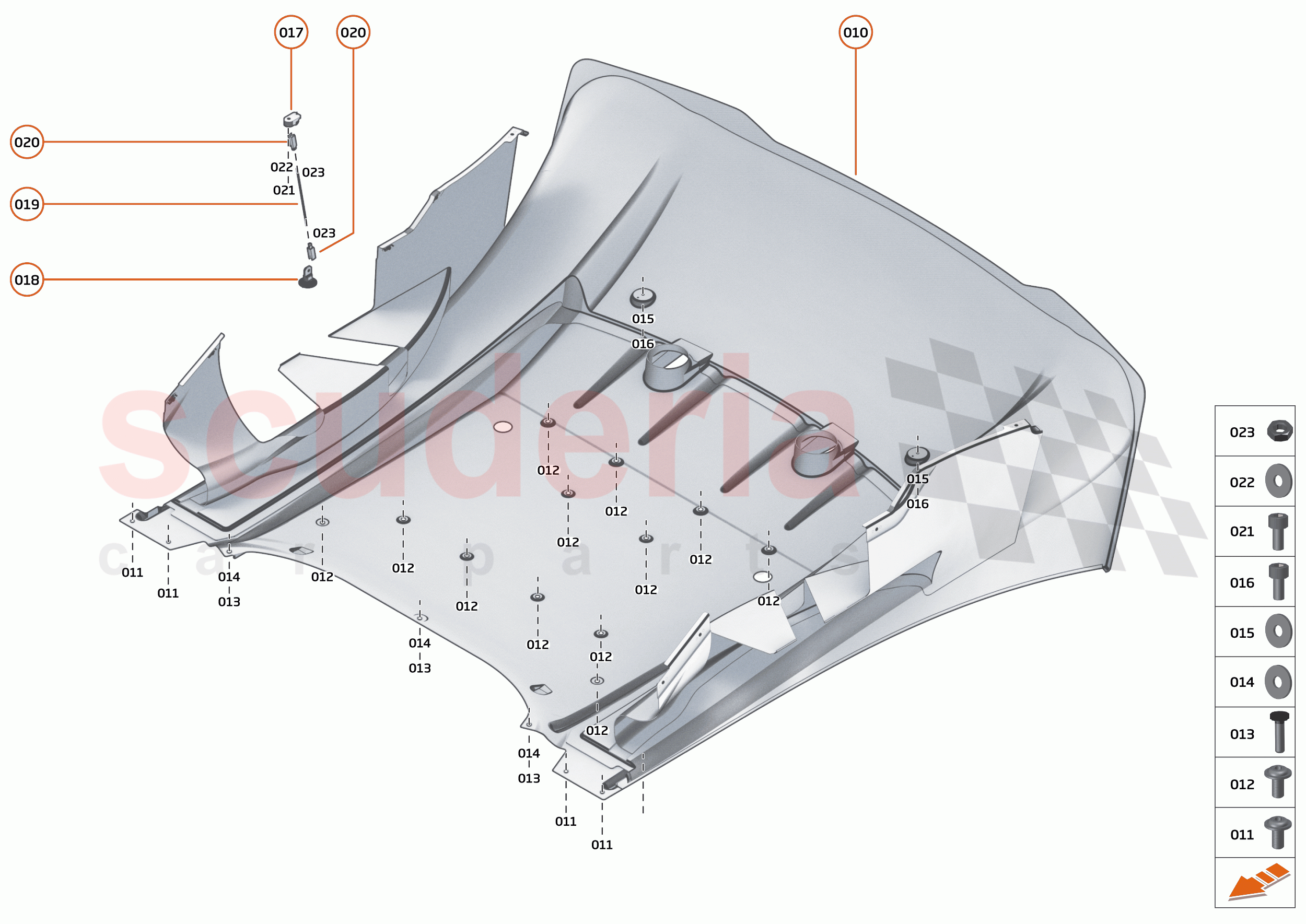

4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AA513RP
ASSY RR DIFFUSER - CFS 		$67,474.33 1
TO
010 15AA071RP
ASSY RR DIFFUSER - CFG 		$72,576.39 1
TO
011 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
012 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- -
PE
 Enquire
013 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- 3
PE
 Enquire
014 00RC013
WASHER - M6X18X1.6 		- 3
PE
 Enquire
015 00RC103
WASHER - M5X10 		- 2
PE
 Enquire
016 15AA355RP
SCR-CAP HD-HX-M5X0.8X15-SS-00 		$6.78 2
TO
017 15AA329RP
CLEVIS UPR DIFFUSER STAY 		$396.52 2
TO
018 15AA292RP
CLEVIS LWR DIFFUSER STAY 		$634.45 2
TO
019 15AA289RP
BAR STAY DIFFUSER M5 X 140MM 		$130.89 2
TO
020 15AA290RP
CLIP SNAP-LOCK CLEVIS M5 X 20M 		$26.15 4
TO
021 00RA152
SCREW CAP - M6X25 - HEX SOCKET 		- 2
PE
 Enquire
022 00RC097
WASHER - 6.4X12X1.6 		- 2
PE
 Enquire
023 00RA739
HALF NUT M5 X 0.8 		- 4
PE
 Enquire
024 15AC583CP
REAR DIFFUSER - CARBON FIBRE GLOSS 		- 1
PE
 Enquire
