3 - Rear Structures - 3.1 - Rear Frame

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $2.00 To Order
Photo Part No Description Price (each) Stock
15AC169CP CROSS BEAM - TRANSMISSION FLOOR $2,379.22 To Order
11A4416CP CROSS BEAM - TRANSMISSION FLOOR $1,289.04 To Order
Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
15AA480RP ASSY-RR FRAME $15,861.50 To Order
Photo Part No Description Price (each) Stock
11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM $25.37 To Order
Photo Part No Description Price (each) Stock
11A1241CP Shim - 1mm - Rear - Upper $16.22 To Order
Photo Part No Description Price (each) Stock
11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 $15.21 To Order
Photo Part No Description Price (each) Stock
11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM $15.21 To Order
Photo Part No Description Price (each) Stock
11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM $9.89 To Order
Photo Part No Description Price (each) Stock
11A1734CP Shim - 0.5mm - Rear - Lower $14.21 To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL BODYSIDE REAR LOWE $16.09 To Order
Photo Part No Description Price (each) Stock
15AA393RP NUT PLATE-AIRJACK-RR $475.83 To Order
Photo Part No Description Price (each) Stock
15AA394RP NUT PLATE-AIRJACK LANCE $793.06 To Order
Photo Part No Description Price (each) Stock
15AA395RP NUT PLATE-TOWING EYE-RR $1,427.53 To Order
Photo Part No Description Price (each) Stock
15AA396RP NUT PLATE-RR CAMERA MTG BRKT $459.97 To Order
Photo Part No Description Price (each) Stock
15AA397RP REINF BRKT RR PYLON-LH $1,427.53 To Order
Photo Part No Description Price (each) Stock
15AA398RP REINF BRKT RR PYLON-RH $1,427.53 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
ZZVA097QP BLIND OPEN RIVET - 120CSK 3.2 X 9 $1.30 To Order
Photo Part No Description Price (each) Stock
A1BA423QP STUD REAR WISHBONE INBOARD $46.94 To Order
Photo Part No Description Price (each) Stock
00RA616 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A8158RP BRKT-BUMPER-RR-MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
11A8232RP BRKT-BUMPER-RR-MNTG RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3801CP FRAME-BULKHEAD MNTG LWR-RH-MAC Enquire To Order
11A0990CP FRAME-BULKHEAD MNTG LWR-RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3799CP FRAME-BULKHEAD MNTG LWR-LH-MACH Enquire To Order
11A0989CP FRAME-BULKHEAD MNTG LWR-LH Enquire To Order
Photo Part No Description Price (each) Stock
15AB656CP REAR CRASH CAN-RH $2,379.21 To Order

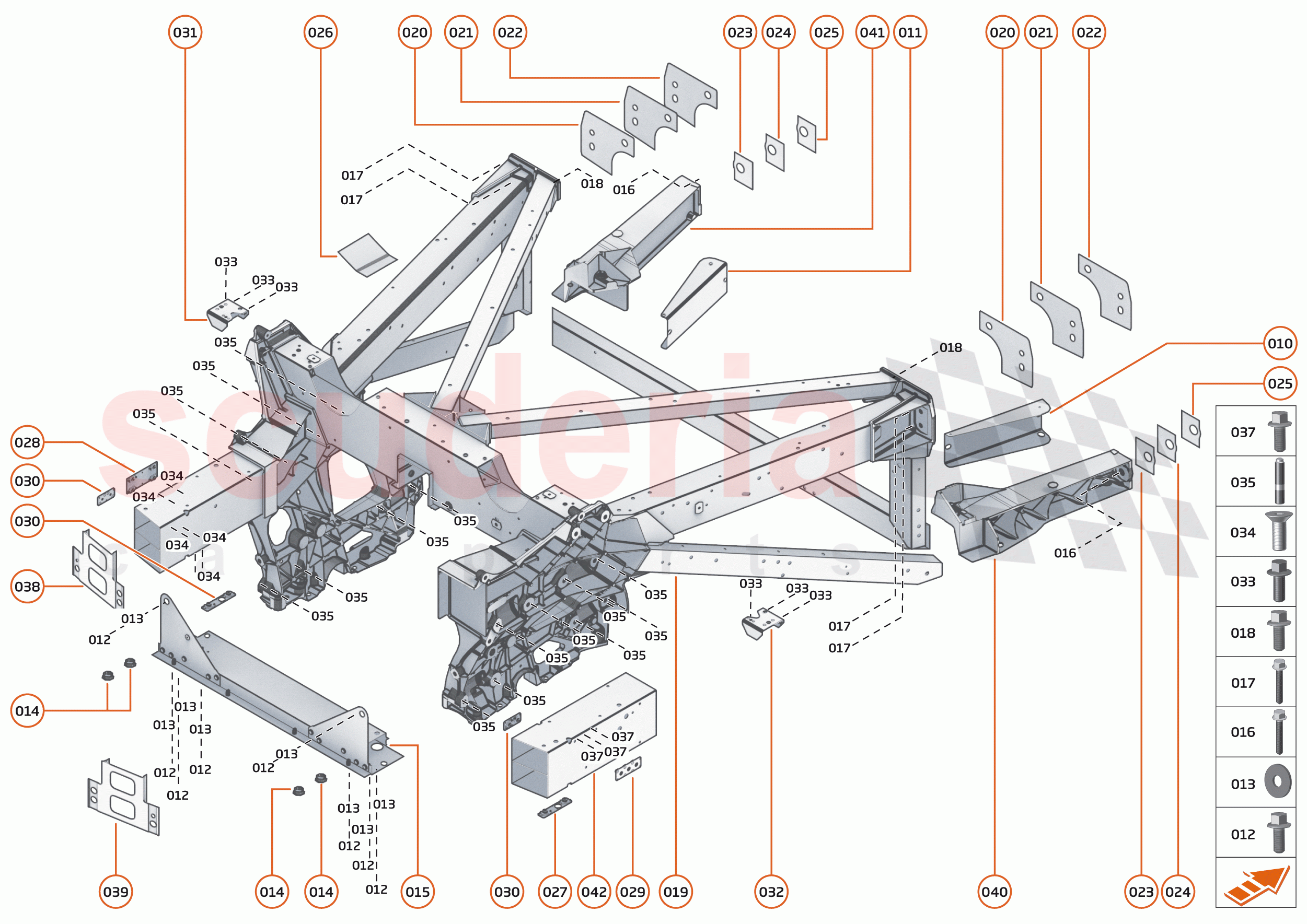

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
011 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
012 00RA457
SCREW - M10X30-10.9 - HEX 		- 8
PE
 Enquire
013 00RC065
WASHER - M10X21X2.0 		- 8
PE
 Enquire
014 11A4284CP
PLUG - DOME - 25 DIAMETER 		$2.00 4
TO
015 15AC169CP
CROSS BEAM - TRANSMISSION FLOOR 		$2,379.22 1
TO
015 11A4416CP
CROSS BEAM - TRANSMISSION FLOOR 		$1,289.04 1
TO
016 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2
PE
 Enquire
017 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4
PE
 Enquire
018 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2
PE
 Enquire
019 15AA480RP
ASSY-RR FRAME 		$15,861.50 1
TO
020 11A1240CP
SHIM REAR FRAME TO24UB-UPR-2MM 		$25.37 1
TO
021 11A1241CP
Shim - 1mm - Rear - Upper 		$16.22 1
TO
022 11A1242CP
SHIM REAR FRAME TO TUB-UPR-0.5 		$15.21 1
TO
023 11A1732CP
SHIM REAR FRAME TO TUB-LWR-2MM 		$15.21 1
TO
024 11A1733CP
SHIM REAR FRAME TO TUB-LWR-1MM 		$9.89 1
TO
025 11A1734CP
Shim - 0.5mm - Rear - Lower 		$14.21 1
TO
026 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE 		$16.09 1
TO
027 15AA393RP
NUT PLATE-AIRJACK-RR 		$475.83 2
TO
028 15AA394RP
NUT PLATE-AIRJACK LANCE 		$793.06 1
TO
029 15AA395RP
NUT PLATE-TOWING EYE-RR 		$1,427.53 1
TO
030 15AA396RP
NUT PLATE-RR CAMERA MTG BRKT 		$459.97 2
TO
031 15AA397RP
REINF BRKT RR PYLON-LH 		$1,427.53 1
TO
032 15AA398RP
REINF BRKT RR PYLON-RH 		$1,427.53 1
TO
033 00RA313
SCREW - M6X16 - HEX - SILVER 		- 6
PE
 Enquire
034 ZZVA097QP
BLIND OPEN RIVET - 120CSK 3.2 X 9 		$1.30 12
TO
035 A1BA423QP
STUD REAR WISHBONE INBOARD 		$46.94 16
TO
036 15AA120RP
TOWING EYE RR 		$3,732.12 1
TO
037 00RA616
BOLT - M10X1.5 - HEX 		- 3
PE
 Enquire
038 11A8158RP
BRKT-BUMPER-RR-MNTG LH 		- 1
PE
 Enquire
039 11A8232RP
BRKT-BUMPER-RR-MNTG RH 		- 1
PE
 Enquire
040 14A3801CP
FRAME-BULKHEAD MNTG LWR-RH-MAC 		- 1
PE
 Enquire
040 11A0990CP
FRAME-BULKHEAD MNTG LWR-RH 		- 1
PE
 Enquire
041 14A3799CP
FRAME-BULKHEAD MNTG LWR-LH-MACH 		- 1
PE
 Enquire
041 11A0989CP
FRAME-BULKHEAD MNTG LWR-LH 		- 1
PE
 Enquire
042 15AB656CP
REAR CRASH CAN-RH 		$2,379.21 1
TO
