McLaren Senna - 32 - HVAC - 32.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A4228CP HOSE - HEATER TO PUMP - HVAC $304.64 To Order
Photo Part No Description Price (each) Stock
14A1799CP HOSE - HEATER TO ENGINE - HVAC $284.34 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15A0146CP HOSE - COMPRESSOR TO CONDENSOR - 134A $192.93 To Order
15A0145CP HOSE - COMPRESSOR TO CONDENSOR $192.93 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
14AB753CP HOSE - HVAC COMPRESSOR - REAR - R134A $132.00 To Order
14AB752CP HOSE - COMPRESSOR - REAR - R1234YF $132.00 To Order
Photo Part No Description Price (each) Stock
15A0147CP HOSE - CONDENSOR LATERAL - LH $132.00 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
15A0148CP HOSE - CONDENSOR LATERAL - RH $152.32 To Order
Photo Part No Description Price (each) Stock
15AB472CP HOSE - CONDENSOR LATERAL - CENTRE $100.68 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $467.13 To Order
Photo Part No Description Price (each) Stock
15A0149CP HOSE - CONDENSER TO RECIEVER DRIER $101.53 To Order
Photo Part No Description Price (each) Stock
13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR $345.26 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $322.24 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $65.98 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $76.15 To Order
Photo Part No Description Price (each) Stock
14A3051CP INTERNAL HEAT EXCHANGER UNIT $324.96 To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $96.45 To Order
Photo Part No Description Price (each) Stock
14A1800CP PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR $142.16 IN STOCK
Photo Part No Description Price (each) Stock
14A3034CP CLIP - HEATER PIPE $66.75 To Order

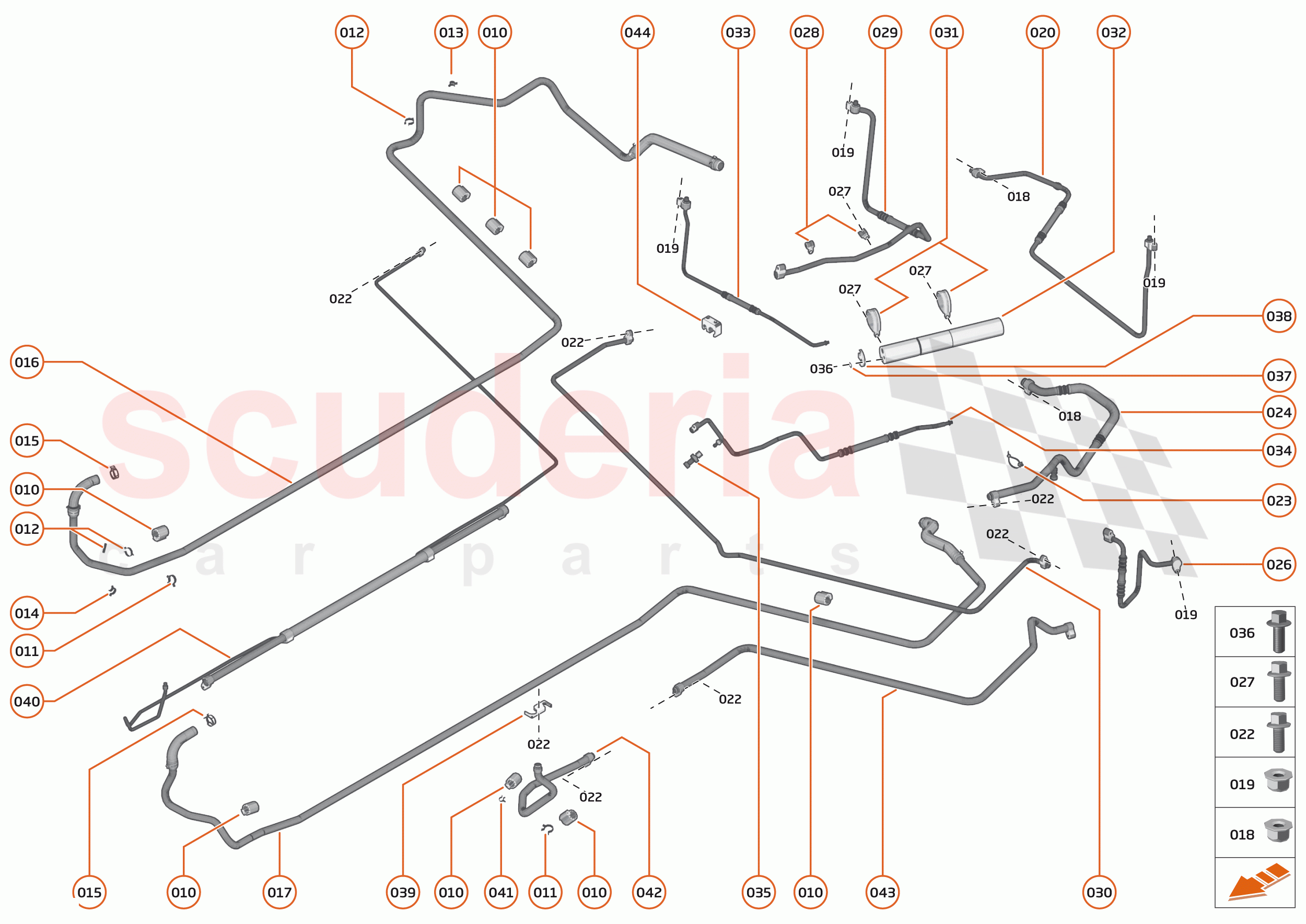

32 - HVAC - 32.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA367
PIPE PROTECTOR - 19MM ID 		- 8
PE
 Enquire
011 00RB007
CLIP - 18-20MM - FEMALE 		- 2
PE
 Enquire
012 00RB008
CLIP - 18-20MM - MALE 		- 3
PE
 Enquire
013 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1
PE
 Enquire
014 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
015 00RB202
CLAMP - SPRING BAND - 23X12 		- 2
PE
 Enquire
016 14A4228CP
HOSE - HEATER TO PUMP - HVAC 		$304.64 1
TO
017 14A1799CP
HOSE - HEATER TO ENGINE - HVAC 		$284.34 1
TO
018 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2
PE
 Enquire
019 00RA075
NUT - M8-8 - HEX 		- 4
PE
 Enquire
020 15A0146CP
HOSE - COMPRESSOR TO CONDENSOR - 134A 		$192.93 1
TO
020 15A0145CP
HOSE - COMPRESSOR TO CONDENSOR 		$192.93 1
TO
022 00RA120
SCREW - M6X25 - HEX 		- 7
PE
 Enquire
023 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
024 14AB753CP
HOSE - HVAC COMPRESSOR - REAR - R134A 		$132.00 1
TO
024 14AB752CP
HOSE - COMPRESSOR - REAR - R1234YF 		$132.00 1
TO
026 15A0147CP
HOSE - CONDENSOR LATERAL - LH 		$132.00 1
TO
027 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
028 00RB027
P-CLIP - DIAMETER 13 - M6 		- 2
PE
 Enquire
029 15A0148CP
HOSE - CONDENSOR LATERAL - RH 		$152.32 1
TO
030 15AB472CP
HOSE - CONDENSOR LATERAL - CENTRE 		$100.68 1
TO
031 00RB029
P CLIP - DIA 45-M6 		- 2
PE
 Enquire
032 12A2757CP
RECEIVER DRIER - HVAC 		$467.13 1
TO
033 15A0149CP
HOSE - CONDENSER TO RECIEVER DRIER 		$101.53 1
TO
034 13A4104CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$345.26 1
TO
035 11A6627CP
SENSOR - PRESSURE - HVAC 		$322.24 1
TO
036 00RA002
BOLT - M8X20 - HEX 		- 1
PE
 Enquire
037 00RC038
WASHER - WAVE M8 		- 1
PE
 Enquire
038 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$65.98 1
TO
039 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$76.15 1
TO
040 14A3051CP
INTERNAL HEAT EXCHANGER UNIT 		$324.96 1
TO
041 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
042 13A3307CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER 		$96.45 1
TO
043 14A1800CP
PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR
IN STOCK 		$142.16 1
IN
044 14A3034CP
CLIP - HEATER PIPE 		$66.75 1
TO
