McLaren Senna - 26 - NVH - HEAT INSULATION - 26.2 - INSULATION - VEHICLE MOUNTED

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
00RG054 CLIP - FIRTREE - 8X14 Enquire To Order
Photo Part No Description Price (each) Stock
14E0066CP HEATSHIELD - BULKHEAD - RH $161.11 To Order
Photo Part No Description Price (each) Stock
15EA014CP HEATSHIELD - BULKHEAD - LH $385.87 To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA146 SCRIVET - DIA 8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
14E0074CP NVH - BULKHEAD - CENTRE $75.52 To Order
Photo Part No Description Price (each) Stock
14H0083CP GASKET - BULKHEAD $14.21 To Order
Photo Part No Description Price (each) Stock
15EA007CP HEATSHIELD - MUFFLER - FRONT $164.86 To Order
Photo Part No Description Price (each) Stock
15EA021CP HEATSHIELD - MUFFLER - LOWER $284.34 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
15EA018CP BRACKET - MUFFLER - LOWER HEATSHIELD $101.53 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
15EA009CP AIR GUIDE - FRONT - LH $184.77 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
15EA011CP AIR GUIDE - FRONT - RH $184.77 To Order
Photo Part No Description Price (each) Stock
15EA019CP HEATSHIELD UPPER - MUFFLER $223.40 To Order

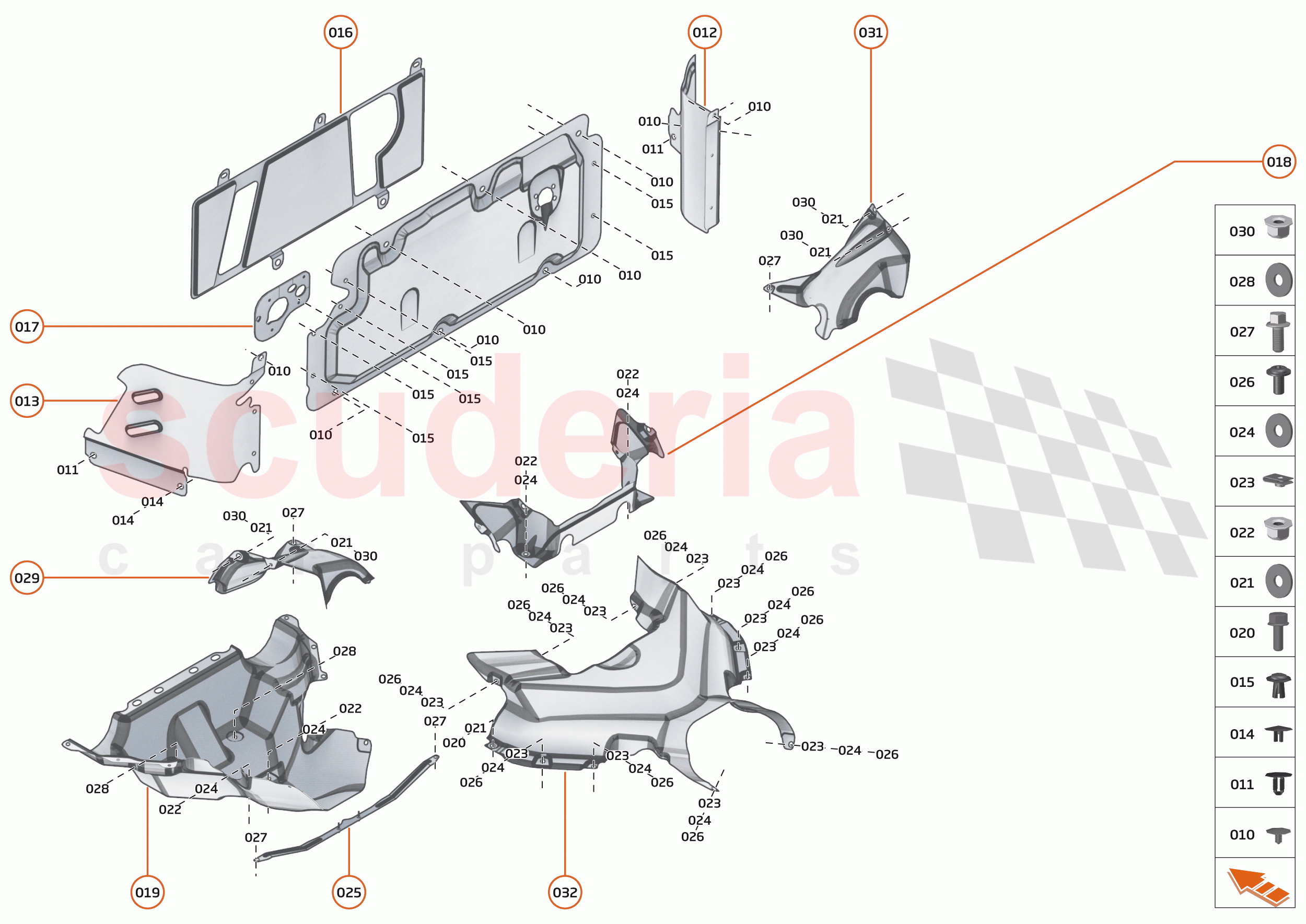

26 - NVH - HEAT INSULATION - 26.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RG003
FIRTREE 7.2X15X24 		- 9
PE
 Enquire
011 00RG054
CLIP - FIRTREE - 8X14 		- 2
PE
 Enquire
012 14E0066CP
HEATSHIELD - BULKHEAD - RH 		$161.11 1
TO
013 15EA014CP
HEATSHIELD - BULKHEAD - LH 		$385.87 1
TO
014 00RM005
ANIXTER RIVET - BLACK 		- 2
PE
 Enquire
015 00RA146
SCRIVET - DIA 8 X 14 		- 7
PE
 Enquire
016 14E0074CP
NVH - BULKHEAD - CENTRE 		$75.52 1
TO
017 14H0083CP
GASKET - BULKHEAD 		$14.21 1
TO
018 15EA007CP
HEATSHIELD - MUFFLER - FRONT 		$164.86 1
TO
019 15EA021CP
HEATSHIELD - MUFFLER - LOWER 		$284.34 1
TO
020 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
021 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 6
PE
 Enquire
022 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
023 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- 10
PE
 Enquire
024 00RC017
WASHER - M5X15X1.2 		- 14
PE
 Enquire
025 15EA018CP
BRACKET - MUFFLER - LOWER HEATSHIELD 		$101.53 1
TO
026 00RA064
BOLT - M5X12 - HEX 		- 10
PE
 Enquire
027 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
028 00RC043
WASHER - M6XOD25 		- 2
PE
 Enquire
029 15EA009CP
AIR GUIDE - FRONT - LH 		$184.77 1
TO
030 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 4
PE
 Enquire
031 15EA011CP
AIR GUIDE - FRONT - RH 		$184.77 1
TO
032 15EA019CP
HEATSHIELD UPPER - MUFFLER
Superseded parts: 15EA001CP; 		$223.40 1
TO
