McLaren Senna - 24 - LUBRICATION SYSTEM OFF - ENGINE - 24.3 - ENGINE OIL FILL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13FA051CP CAP - ENGINE - OIL FILLER $65.98 To Order
Photo Part No Description Price (each) Stock
15FA336CP FILLER TUBE - OIL TANK $523.66 To Order
Photo Part No Description Price (each) Stock
15FA335CP FILLER PIPE ASSY - INC BRACKETS Enquire To Order
Photo Part No Description Price (each) Stock
00RB139 STEPLESS EAR CLAMP - 34.6-706DR Enquire To Order
Photo Part No Description Price (each) Stock
15FA293CP HOSE - OIL FILLER TUBE $132.00 To Order
Photo Part No Description Price (each) Stock
15FA294CP FILLER HOSE - TOP Enquire To Order
Photo Part No Description Price (each) Stock
15FA178CP BOWL - OIL FILLER $71.07 To Order
Photo Part No Description Price (each) Stock
11F0895CP SEAL - OIL FILLER BOWL $65.98 To Order

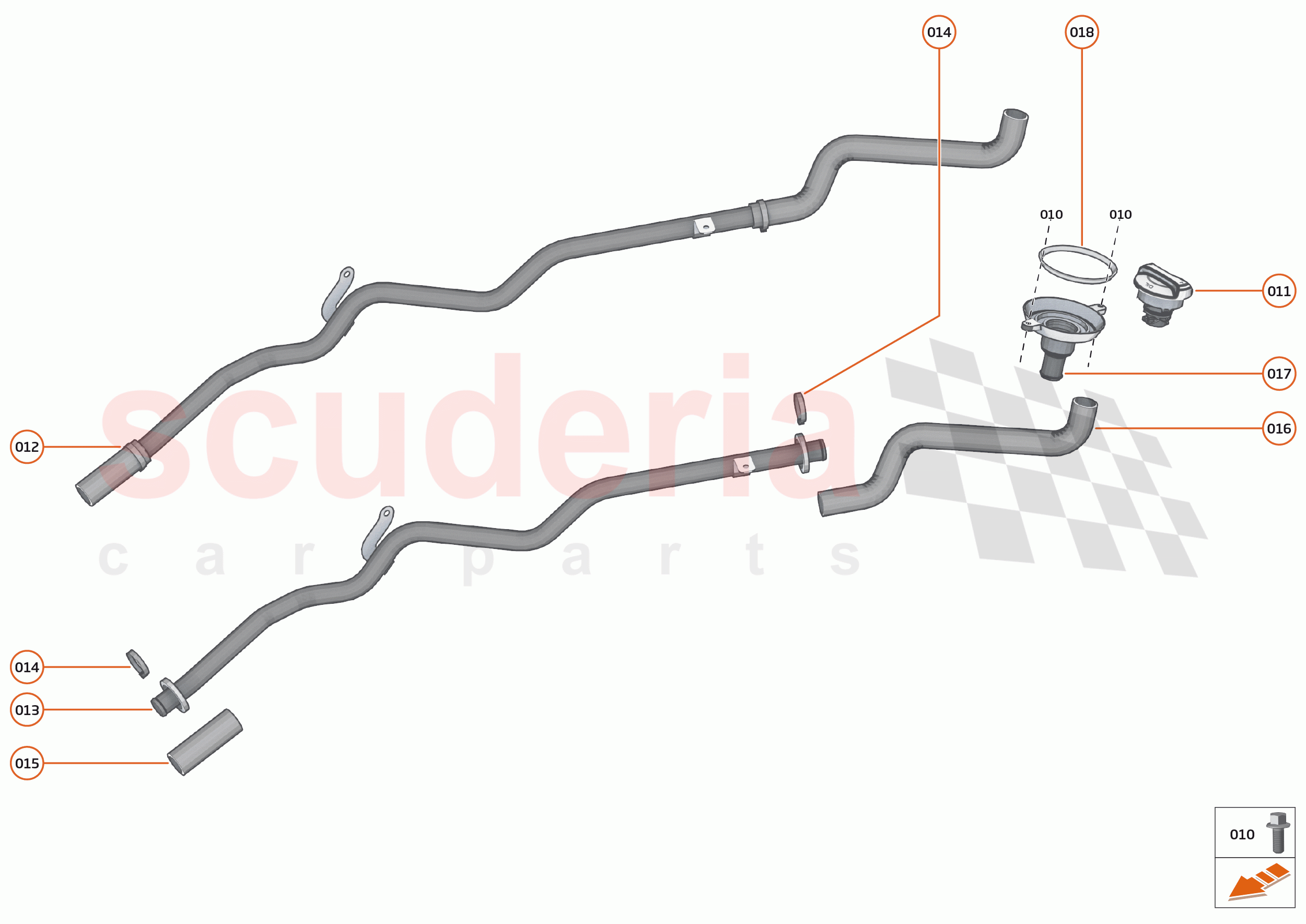

24 - LUBRICATION SYSTEM OFF - ENGINE - 24.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
011 13FA051CP
CAP - ENGINE - OIL FILLER 		$65.98 1
TO
012 15FA336CP
FILLER TUBE - OIL TANK 		$523.66 1
TO
013 15FA335CP
FILLER PIPE ASSY - INC BRACKETS 		- 1
PE
 Enquire
014 00RB139
STEPLESS EAR CLAMP - 34.6-706DR 		- 2
PE
 Enquire
015 15FA293CP
HOSE - OIL FILLER TUBE 		$132.00 1
TO
016 15FA294CP
FILLER HOSE - TOP 		- 1
PE
 Enquire
017 15FA178CP
BOWL - OIL FILLER 		$71.07 1
TO
018 11F0895CP
SEAL - OIL FILLER BOWL 		$65.98 1
TO
