McLaren Senna - 22 - ENGINE - 22.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15FA377CP INLET MANIFOLD ASSY - ENGINE $34,643.53 To Order
Photo Part No Description Price (each) Stock
14F0360CP GASKET - INLET MANIFOLD - ENGINE $55.84 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1740CP THROTTLE BODY - ENGINE $819.72 To Order
Photo Part No Description Price (each) Stock
11F2289CP SEAL - THROTTLE BODY - ENGINE $40.60 To Order
Photo Part No Description Price (each) Stock
11F1797CP SCREW - CAP HEAD - M6X45 $8.91 To Order
Photo Part No Description Price (each) Stock
14F0322CP SENSOR - TMAP - INLET MANIFOLD - ENGINE $70.46 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
14F0766CP ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD $79.32 To Order
Photo Part No Description Price (each) Stock
15FA047CP STUB PIPE - PURGE INLET MANIFOLD - RH Enquire To Order
Photo Part No Description Price (each) Stock
14F0584CP STUB PIPE - PURGE INLET MANIFOLD - LH Enquire To Order

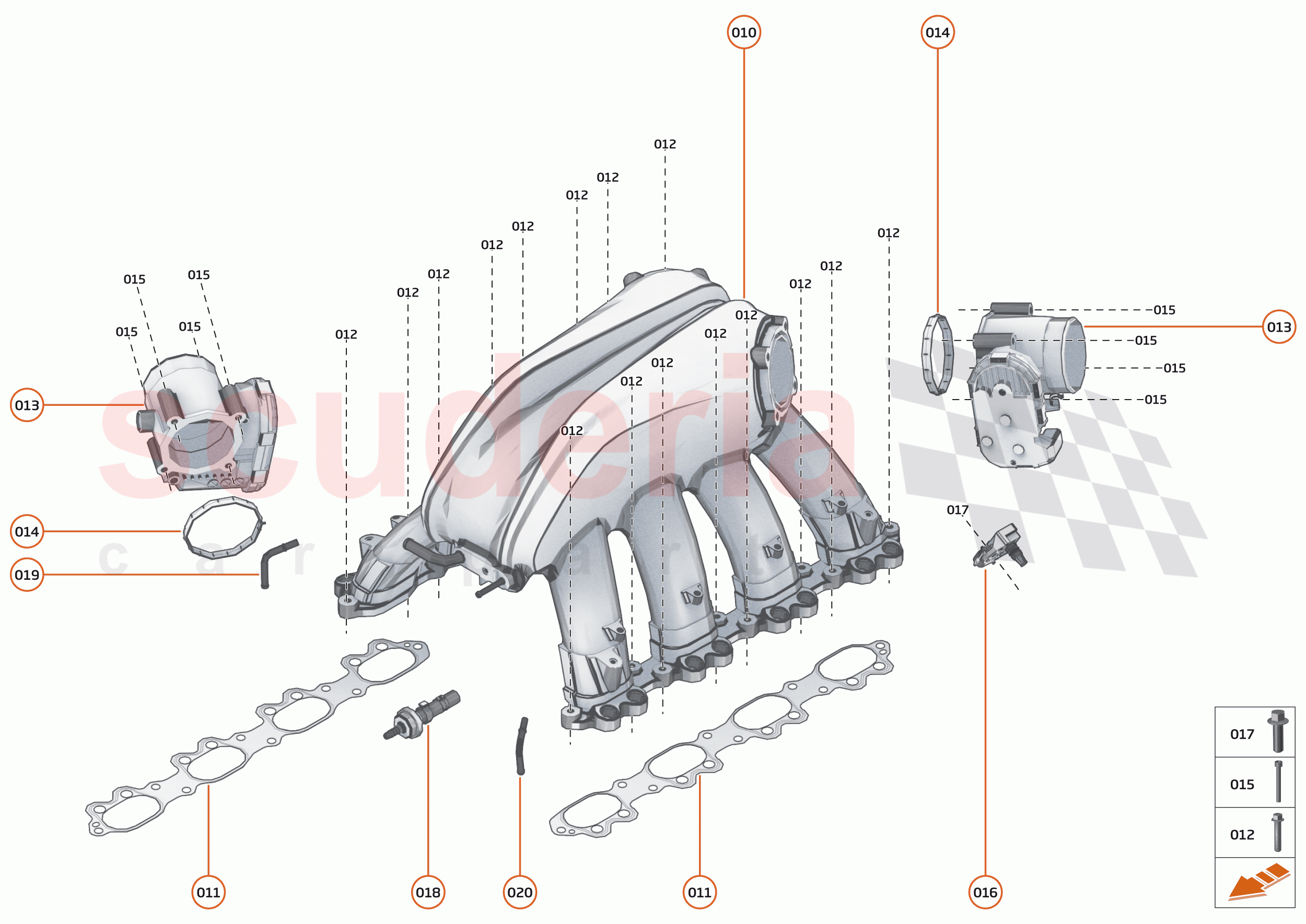

22 - ENGINE - 22.3 - INLET MANIFOLD of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15FA377CP
INLET MANIFOLD ASSY - ENGINE
Superseded parts: 15F0020CP; 		$34,643.53 1
TO
011 14F0360CP
GASKET - INLET MANIFOLD - ENGINE 		$55.84 2
TO
012 11F1776CP
BOLT - M6X30 - HEX 		$10.14 16
TO
013 11F1740CP
THROTTLE BODY - ENGINE 		$819.72 2
TO
014 11F2289CP
SEAL - THROTTLE BODY - ENGINE 		$40.60 2
TO
015 11F1797CP
SCREW - CAP HEAD - M6X45 		$8.91 8
TO
016 14F0322CP
SENSOR - TMAP - INLET MANIFOLD - ENGINE 		$70.46 1
TO
017 11F1793CP
BOLT - M6X20 - HEX 		$11.14 1
TO
018 14F0766CP
ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD 		$79.32 1
TO
019 15FA047CP
STUB PIPE - PURGE INLET MANIFOLD - RH 		- 1
PE
 Enquire
020 14F0584CP
STUB PIPE - PURGE INLET MANIFOLD - LH 		- 1
PE
 Enquire
