18 - Brakes - 18.8 - Brake Boost System

McLaren Senna

Find Your Part

McLaren Senna - 18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13CA211RP BRAKE BOOSTER - INC MASTER CYLINDER $1,218.63 To Order
Photo Part No Description Price (each) Stock
12C0306CP EXTENSION ROD - BRAKE BOOSTER $264.02 To Order
Photo Part No Description Price (each) Stock
12C0308CP BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET $50.76 To Order
Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $75.52 To Order
Photo Part No Description Price (each) Stock
11AA035CP FOAM GASKET - FRONT DUCT - END $25.15 To Order
Photo Part No Description Price (each) Stock
00RA573 BOLT - M10X1 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA585 STUD BALL - M6X9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB184 CLIP - SNAPLOC - 18X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RB187 CLIP - SNAPLOC - 14X7 Enquire To Order
Photo Part No Description Price (each) Stock
14C0125CP BRACKET - ABS MODULATOR $40.26 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15MA186CP SENSOR - YAW RATE $324.96 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12M0735CP SENSOR - WHEEL SPEED $152.32 To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $201.40 To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
12C0290CP BRACKET - BRAKE BOOSTER MOUNTING $690.54 To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED $1,726.40 To Order
11E0022CP HEATSHIELD-WHEEL S24SOR $50.76 To Order

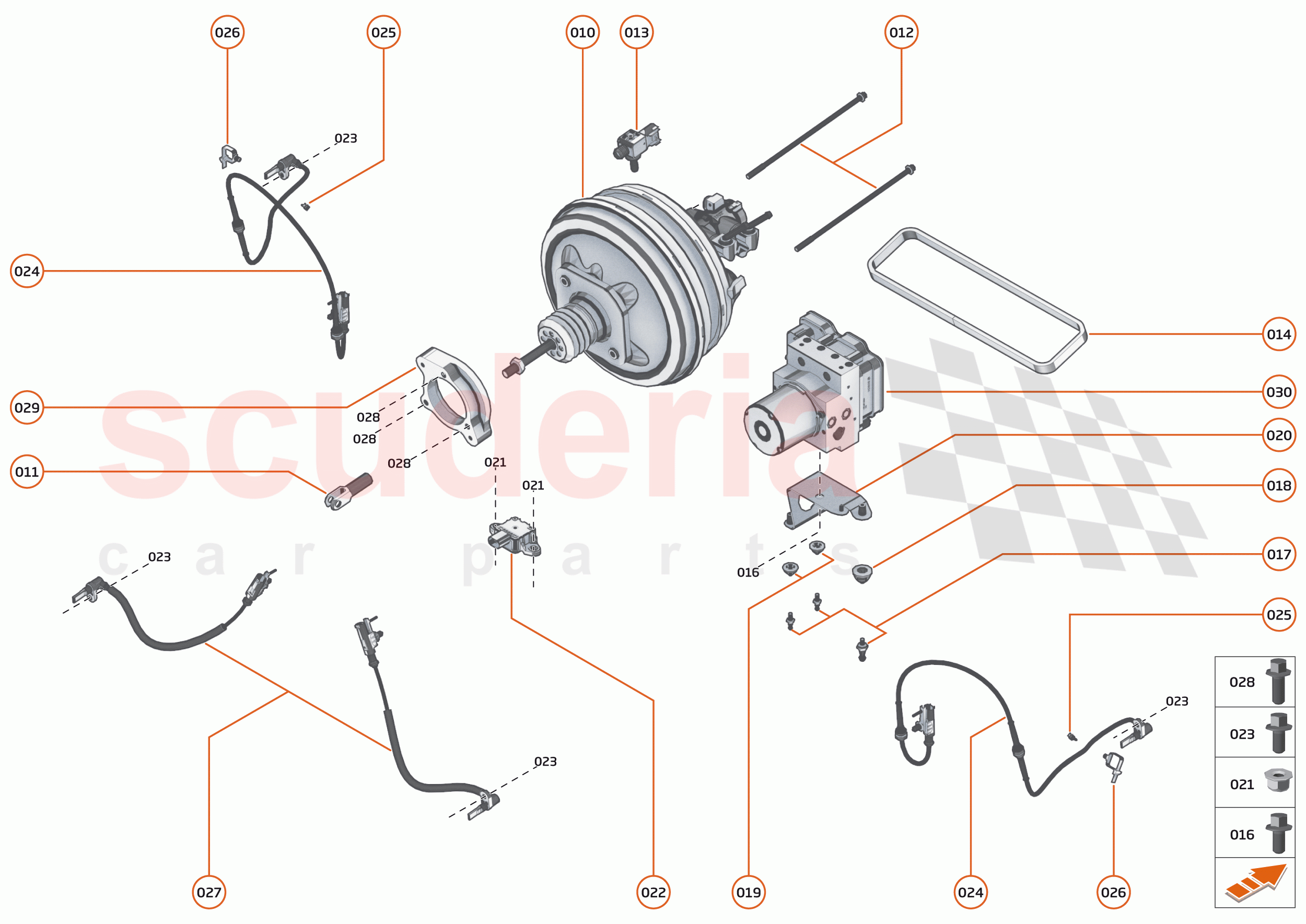

18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13CA211RP
BRAKE BOOSTER - INC MASTER CYLINDER 		$1,218.63 1
TO
011 12C0306CP
EXTENSION ROD - BRAKE BOOSTER 		$264.02 1
TO
012 12C0308CP
BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET 		$50.76 1
TO
013 13M0801CP
VACUUM SENSOR WITH CHECK VALVE 		$75.52 1
TO
014 11AA035CP
FOAM GASKET - FRONT DUCT - END 		$25.15 1
TO
015 00RA360
STUD BALL - M6X19 		- 1
PE
 Enquire
016 00RA573
BOLT - M10X1 - HEX 		- 1
PE
 Enquire
017 00RA585
STUD BALL - M6X9 		- 2
PE
 Enquire
018 00RB184
CLIP - SNAPLOC - 18X10 		- 1
PE
 Enquire
019 00RB187
CLIP - SNAPLOC - 14X7 		- 2
PE
 Enquire
020 14C0125CP
BRACKET - ABS MODULATOR 		$40.26 1
TO
021 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
022 15MA186CP
SENSOR - YAW RATE 		$324.96 1
TO
023 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
024 12M0735CP
SENSOR - WHEEL SPEED 		$152.32 2
TO
025 00RB042
SWIVEL PIPE CLIP 		- 2
PE
 Enquire
026 00RB035
Cable Tie - Female - Dia 8-20 		- 2
PE
 Enquire
027 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$201.40 2
TO
028 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 3
PE
 Enquire
029 12C0290CP
BRACKET - BRAKE BOOSTER MOUNTING 		$690.54 1
TO
030 13C0205CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED 		$1,726.40 1
TO
030 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$50.76 -
TO
