18 - Brakes - 18.7 - Pedal Box

McLaren Senna

Find Your Part

McLaren Senna - 18 - BRAKES - 18.7 - PEDAL BOX

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA236 BOLT-HEX HEAD-FLANGE-M8X70-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
13CA034CP BRAKE PEDAL ASSY - RHD Enquire To Order
11CA001CP BRAKE PEDAL ASSY - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11CA005CP PIN - PISTON ROD TO BRAKE PEDAL $3.43 To Order
Photo Part No Description Price (each) Stock
11C0286CP SPRING CLIP - CLEVIS PIN $6.06 To Order
Photo Part No Description Price (each) Stock
00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Enquire To Order
Photo Part No Description Price (each) Stock
11CA002CP THROTTLE PEDAL $966.78 To Order
Photo Part No Description Price (each) Stock
15CA139CP BRAKE FLUID RESERVOIR - RHD $304.64 To Order
15CA012CP BRAKE FLUID RESERVOIR - LHD $284.34 To Order
Photo Part No Description Price (each) Stock
00RB050 Saddle Clamp - 13-15 Enquire To Order
Photo Part No Description Price (each) Stock
15CA210CP BRACKET - BRAKE FLUID RESERVOIR $64.49 To Order
Photo Part No Description Price (each) Stock
00RA373 SCREW - HEX HEAD - LOCK - M6X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA458 BOLT - M6X10 - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
11CA003CP PAD-PEDAL-BRAKE Enquire To Order

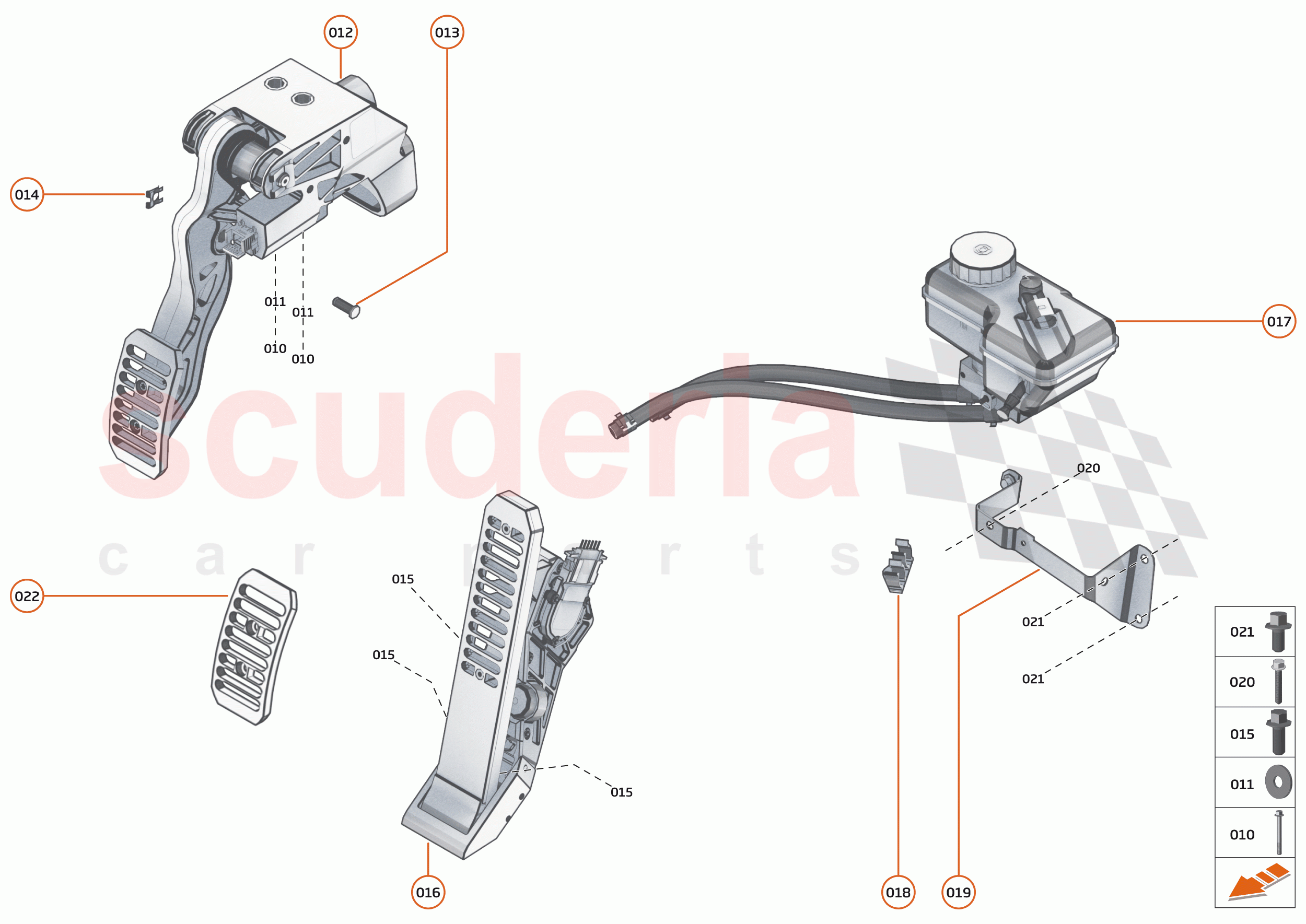

18 - BRAKES - 18.7 - PEDAL BOX of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA236
BOLT-HEX HEAD-FLANGE-M8X70-8.8 		- 2
PE
 Enquire
011 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 2
PE
 Enquire
012 13CA034CP
BRAKE PEDAL ASSY - RHD 		- 1
PE
 Enquire
012 11CA001CP
BRAKE PEDAL ASSY - LHD 		- 1
PE
 Enquire
013 11CA005CP
PIN - PISTON ROD TO BRAKE PEDAL 		$3.43 1
TO
014 11C0286CP
SPRING CLIP - CLEVIS PIN 		$6.06 1
TO
015 00RA581
BOLT - HEX HEAD - FLANGE - M6X30 		- 3
PE
 Enquire
016 11CA002CP
THROTTLE PEDAL 		$966.78 1
TO
017 15CA139CP
BRAKE FLUID RESERVOIR - RHD 		$304.64 1
TO
017 15CA012CP
BRAKE FLUID RESERVOIR - LHD 		$284.34 1
TO
018 00RB050
Saddle Clamp - 13-15 		- 1
PE
 Enquire
019 15CA210CP
BRACKET - BRAKE FLUID RESERVOIR 		$64.49 1
TO
020 00RA373
SCREW - HEX HEAD - LOCK - M6X25 - 8.8 		- 1
PE
 Enquire
021 00RA458
BOLT - M6X10 - FLANGED 		- 1
PE
 Enquire
022 11CA003CP
PAD-PEDAL-BRAKE 		- 1
PE
 Enquire
