18 - Brakes - 18.10 - Brake Pipes

McLaren Senna

Find Your Part

McLaren Senna - 18 - BRAKES - 18.10 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15CA079CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH $120.83 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB134 DOUBLE PIPE CLIP IAC27 Enquire To Order
Photo Part No Description Price (each) Stock
00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB180 CLIP - FIRTREE - 23.8X4 Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
15CA077CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH $120.83 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
15CA097CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD $75.52 To Order
15CA116CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD $85.58 To Order
Photo Part No Description Price (each) Stock
15CA099CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD $75.52 To Order
15CA114CP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD $85.58 To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP-DOUBLE-DIA 6 24 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15CA148CP BRACKET - BRAKE HOSE TO BODY - FRONT - RH $81.23 To Order
Photo Part No Description Price (each) Stock
15CA146CP BRACKET - BRAKE HOSE TO BODY - FRONT - LH $81.23 To Order
Photo Part No Description Price (each) Stock
12C0294CP CLIP - SPRING - HOSE BRACKET $25.37 To Order
Photo Part No Description Price (each) Stock
12C0296CP WASHER - SPRING CLIP $65.98 To Order
Photo Part No Description Price (each) Stock
11C0237CP CLAMP - CHASSIS TUNNEL $40.60 To Order
Photo Part No Description Price (each) Stock
13C0188CP BRAKE HOSE - CARBON - REAR $85.58 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA580 SCREW - M6X1X16 Enquire To Order
Photo Part No Description Price (each) Stock
14C0065CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH $55.84 To Order
Photo Part No Description Price (each) Stock
14C0067CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH $55.84 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14CA078CP BRACKET - BRAKE PIPE - REAR - LH $35.23 To Order
Photo Part No Description Price (each) Stock
14C0007CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH $76.15 To Order
Photo Part No Description Price (each) Stock
11C0680CP BRAKE HOSE - IRON - CARBON - FRONT $65.98 To Order
Photo Part No Description Price (each) Stock
11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS $25.37 To Order
Photo Part No Description Price (each) Stock
11C0592CP WASHER - COPPER - BRAKE HOSE $4.44 To Order

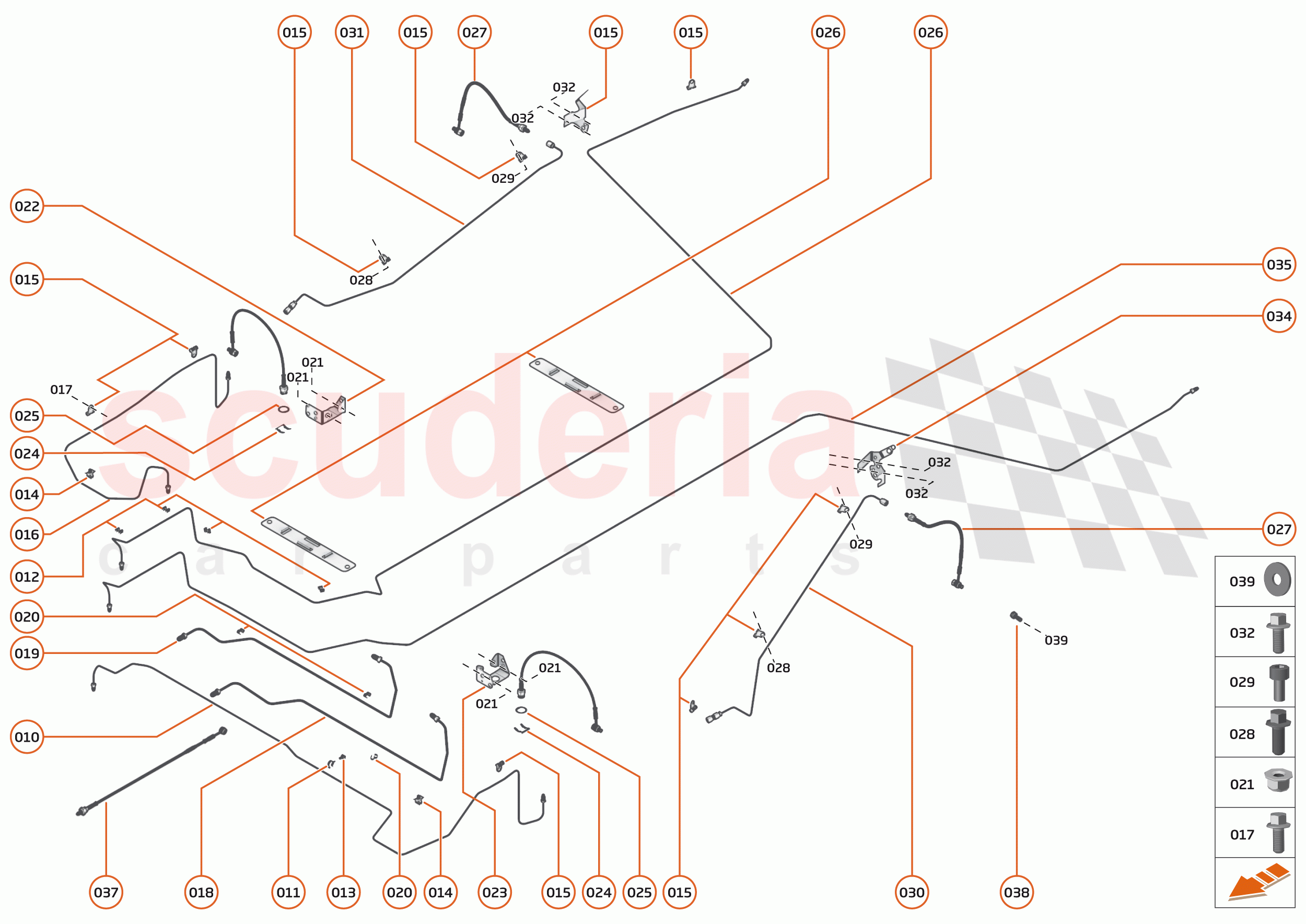

18 - BRAKES - 18.10 - BRAKE PIPES of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15CA079CP
BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH 		$120.83 1
TO
011 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
012 00RB134
DOUBLE PIPE CLIP IAC27 		- 4
PE
 Enquire
013 00RB168
SWIVEL CLIP - 4.3-5.2 - FEMALE 		- 1
PE
 Enquire
014 00RB180
CLIP - FIRTREE - 23.8X4 		- 2
PE
 Enquire
015 00RB063
P CLIP - DIA 6 (M6) 		- 9
PE
 Enquire
016 15CA077CP
BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH 		$120.83 1
TO
017 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1
PE
 Enquire
018 15CA097CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - RHD 		$75.52 1
TO
018 15CA116CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD 		$85.58 1
TO
019 15CA099CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - RHD 		$75.52 1
TO
019 15CA114CP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - LHD 		$85.58 1
TO
020 00RB043
CLIP-DOUBLE-DIA 6 24 		- 3
PE
 Enquire
021 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
022 15CA148CP
BRACKET - BRAKE HOSE TO BODY - FRONT - RH 		$81.23 1
TO
023 15CA146CP
BRACKET - BRAKE HOSE TO BODY - FRONT - LH 		$81.23 1
TO
024 12C0294CP
CLIP - SPRING - HOSE BRACKET 		$25.37 2
TO
025 12C0296CP
WASHER - SPRING CLIP 		$65.98 2
TO
026 11C0237CP
CLAMP - CHASSIS TUNNEL 		$40.60 2
TO
027 13C0188CP
BRAKE HOSE - CARBON - REAR 		$85.58 2
TO
028 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
029 00RA580
SCREW - M6X1X16 		- 2
PE
 Enquire
030 14C0065CP
BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH 		$55.84 1
TO
031 14C0067CP
BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH 		$55.84 1
TO
032 00RX001
BOLT - M5X16 - HEX 		- 4
PE
 Enquire
033 14CA077CP
BRACKET - BRAKE PIPE - REAR - RH 		$35.23 1
TO
034 14CA078CP
BRACKET - BRAKE PIPE - REAR - LH 		$35.23 1
TO
035 14C0007CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH 		$76.15 1
TO
036 14C0165CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH 		$132.00 1
TO
037 11C0680CP
BRAKE HOSE - IRON - CARBON - FRONT 		$65.98 2
TO
038 11C0501CP
BRAKE HOSE BANJO BOLT INC WASHERS 		$25.37 1
TO
039 11C0592CP
WASHER - COPPER - BRAKE HOSE 		$4.44 1
TO
