McLaren Senna - 17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $45.68 To Order
Photo Part No Description Price (each) Stock
15BA145CP WISHBONE - FRONT - UPPER - LH $1,726.40 To Order
Photo Part No Description Price (each) Stock
15BA147CP WISHBONE - FRONT - UPPER - RH $1,726.40 To Order
Photo Part No Description Price (each) Stock
00RX031 BOLT - M10X35 - HEX HEAD - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $13.18 To Order
Photo Part No Description Price (each) Stock
15BA249CP WISHBONE - FRONT - LOWER - LH $4,598.48 To Order
Photo Part No Description Price (each) Stock
12B0494CP SPACER - DIA 20 $19.27 To Order
Photo Part No Description Price (each) Stock
12B0507CP DOWEL - RING - SUSPENSION BUSH $81.23 To Order
Photo Part No Description Price (each) Stock
12B0761CP BOLT - M10X72 - HEX - FLANGE $142.16 To Order
Photo Part No Description Price (each) Stock
15BA250CP WISHBONE - FRONT - LOWER - RH $4,578.49 To Order
Photo Part No Description Price (each) Stock
15BA194CP BRACKET - SENSOR - DISPLACEMENT - FRONT - LH - 675LT $45.68 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12B0269CP LINK ROD - SENSOR - DISPLACEMENT - 92MM $223.40 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $152.32 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA258CP BRACKET - SENSOR - DISPLACEMENT - FRONT - RH $45.68 To Order
Photo Part No Description Price (each) Stock
11B1552CP Ball Joint - Gaiter - Kit $50.34 To Order
Photo Part No Description Price (each) Stock
14BA039CP BALL JOINT - GAITER - LOWER - KIT $4.21 To Order

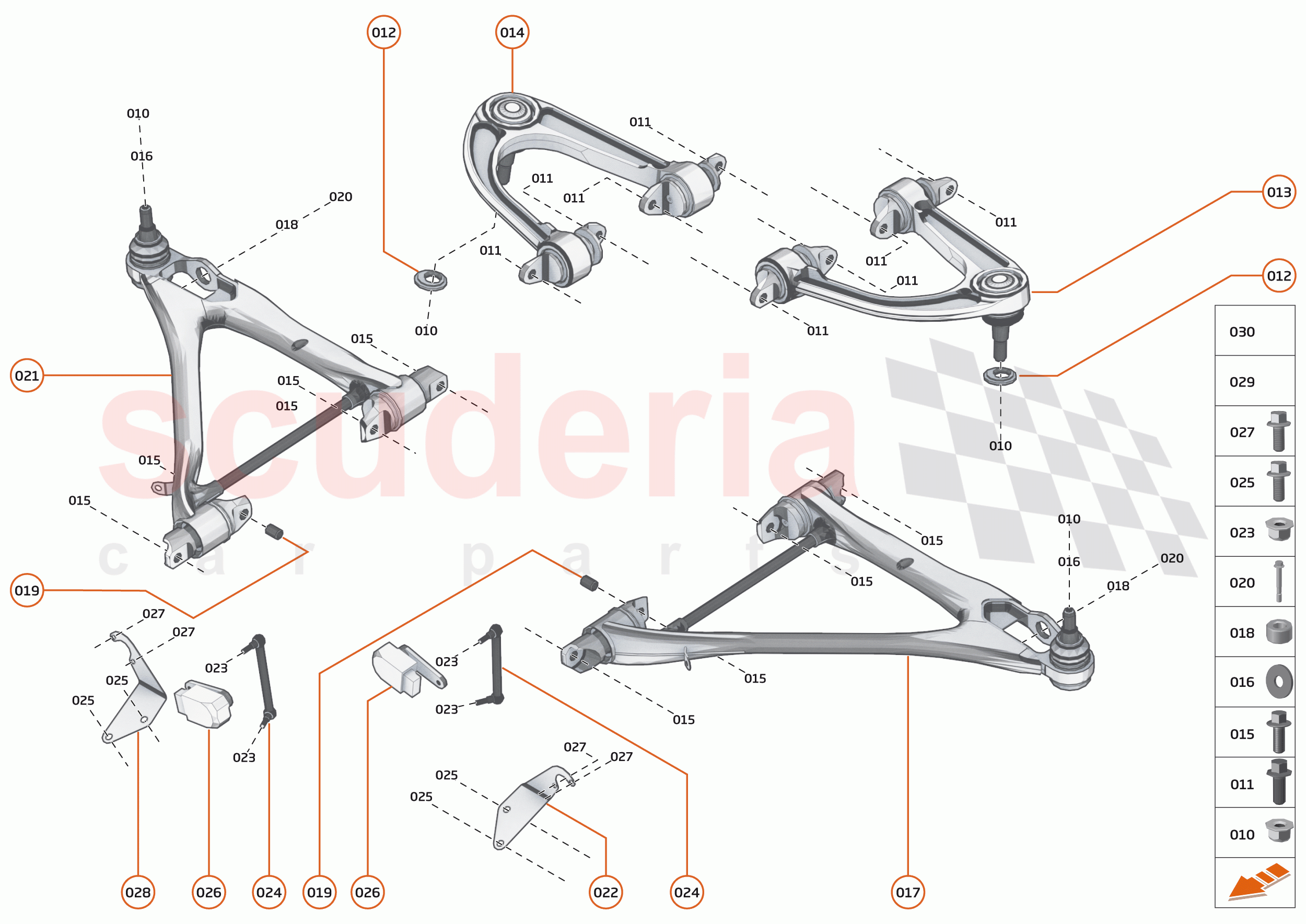

17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 4
PE
 Enquire
011 00RA457
SCREW - M10X30-10.9 - HEX 		- 8
PE
 Enquire
012 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$45.68 2
TO
013 15BA145CP
WISHBONE - FRONT - UPPER - LH 		$1,726.40 1
TO
014 15BA147CP
WISHBONE - FRONT - UPPER - RH 		$1,726.40 1
TO
015 00RX031
BOLT - M10X35 - HEX HEAD - FLANGE 		- 8
PE
 Enquire
016 11B0320CP
WASHER - DIA 35X3.9X14.5 		$13.18 2
TO
017 15BA249CP
WISHBONE - FRONT - LOWER - LH 		$4,598.48 1
TO
018 12B0494CP
SPACER - DIA 20 		$19.27 2
TO
019 12B0507CP
DOWEL - RING - SUSPENSION BUSH 		$81.23 2
TO
020 12B0761CP
BOLT - M10X72 - HEX - FLANGE 		$142.16 2
TO
021 15BA250CP
WISHBONE - FRONT - LOWER - RH 		$4,578.49 1
TO
022 15BA194CP
BRACKET - SENSOR - DISPLACEMENT - FRONT - LH - 675LT 		$45.68 1
TO
023 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
024 12B0269CP
LINK ROD - SENSOR - DISPLACEMENT - 92MM 		$223.40 2
TO
025 00RA087
SCREW - M5X10 - HEX 		- 4
PE
 Enquire
026 11M0253CP
Sensor - Displacement 		$152.32 2
TO
027 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
028 15BA258CP
BRACKET - SENSOR - DISPLACEMENT - FRONT - RH 		$45.68 1
TO
029 11B1552CP
Ball Joint - Gaiter - Kit 		$50.34 2
TO
030 14BA039CP
BALL JOINT - GAITER - LOWER - KIT 		$4.21 2
TO
