McLaren Senna - 17 - SUSPENSION - 17.10 - SUSPENSION FLUID SYSTEMS - REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA201 BOLT - M5X0.8X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB127 P-CLIP - 12/13 - EPDM Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0252CP Sensor - Accelerometer $201.40 To Order
Photo Part No Description Price (each) Stock
15BA298CP PIPE - SUSPENSION REAR - LATERAL $1,320.19 To Order
Photo Part No Description Price (each) Stock
15BA297CP PIPE - SUSPENSION REAR - LATERAL $1,421.74 To Order
Photo Part No Description Price (each) Stock
15BA234CP ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH $9,103.98 To Order
Photo Part No Description Price (each) Stock
15BA302CP HOUSING - KINETIC DAMPER - MAPMU - REAR $1,611.30 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11D0124CP MOUNT - AV - RUBBER $35.54 To Order
Photo Part No Description Price (each) Stock
15BA004CP PIPE - KINETIC DAMPER BUMP - REAR LH $523.66 To Order
Photo Part No Description Price (each) Stock
00RA099 SCREW - M4X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA151CP KEEP PLATE - 14MM $48.37 To Order
Photo Part No Description Price (each) Stock
15BA005CP PIPE - KINETIC DAMPER BUMP - REAR RH $1,208.49 To Order
Photo Part No Description Price (each) Stock
15BA006CP PIPE - KINETIC DAMPER REBOUND - REAR LH $1,208.49 To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB131 HOSE SEPERATOR PHS6 Enquire To Order
Photo Part No Description Price (each) Stock
15BA007CP PIPE - KINETIC DAMPER REBOUND - REAR RH $1,289.04 To Order
Photo Part No Description Price (each) Stock
00RB098 P-CLIP - DIA 10 - SILICONE Enquire To Order
Photo Part No Description Price (each) Stock
15BA072CP PIPE ASSY - KINETIC DAMPER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
15BA143CP BRACKET - PIPEWORK - KINETIC DAMPER - REAR - LH $48.37 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA568 BOLT - M6X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA144CP BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH $49.18 To Order
Photo Part No Description Price (each) Stock
15BA141CP BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR LH $49.18 To Order
Photo Part No Description Price (each) Stock
15BA142CP BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR RH $49.18 To Order
Photo Part No Description Price (each) Stock
15BA235CP KDAMP-CARBON-ACCUM-BUMP-RR-LH $9,103.98 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
12B0743CP WASHER - PIPE - KENECTIC DAMPER $40.26 To Order

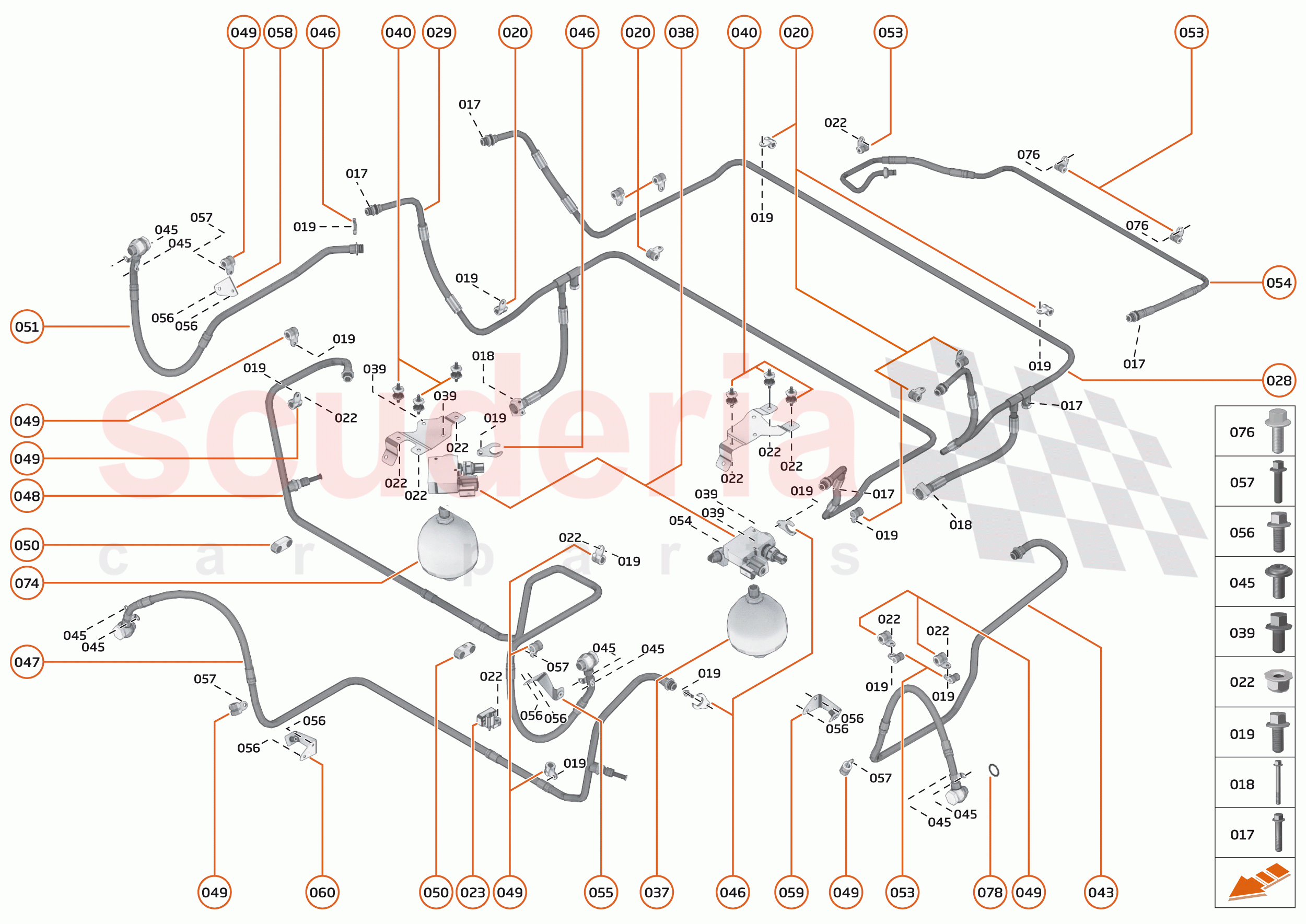

17 - SUSPENSION - 17.10 - SUSPENSION FLUID SYSTEMS - REAR of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 14BA263CP
O-RING - VITON - BLACK - 224000NT 		$50.76 2
TO
017 00RA201
BOLT - M5X0.8X30 - HEX 		- 5
PE
 Enquire
019 00RA313
SCREW - M6X16 - HEX - SILVER 		- 11
PE
 Enquire
020 00RB127
P-CLIP - 12/13 - EPDM 		- 9
PE
 Enquire
022 00RA055
NUT - M6 - LOCKING - HEX 		- 10
PE
 Enquire
023 11M0252CP
Sensor - Accelerometer 		$201.40 1
TO
028 15BA298CP
PIPE - SUSPENSION REAR - LATERAL 		$1,320.19 1
TO
029 15BA297CP
PIPE - SUSPENSION REAR - LATERAL 		$1,421.74 1
TO
037 15BA234CP
ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH 		$9,103.98 1
TO
038 15BA302CP
HOUSING - KINETIC DAMPER - MAPMU - REAR 		$1,611.30 2
TO
039 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
040 11D0124CP
MOUNT - AV - RUBBER 		$35.54 6
TO
041 15BA300CP
BRACKET - MAPMU KINETIC DAMPER - REBOUND - REAR 		$59.66 1
TO
042 15BA301CP
BRACKET - MAPMU KINETIC DAMPER - COMP - REAR 		$75.79 1
TO
043 15BA004CP
PIPE - KINETIC DAMPER BUMP - REAR LH 		$523.66 1
TO
045 00RA099
SCREW - M4X25 - HEX 		- 8
PE
 Enquire
046 15BA151CP
KEEP PLATE - 14MM 		$48.37 4
TO
047 15BA005CP
PIPE - KINETIC DAMPER BUMP - REAR RH 		$1,208.49 1
TO
048 15BA006CP
PIPE - KINETIC DAMPER REBOUND - REAR LH 		$1,208.49 1
TO
049 00RB191
P-CLIP - 14X15
Superseded parts: 00RB003; 		- 10
PE
 Enquire
050 00RB131
HOSE SEPERATOR PHS6 		- 2
PE
 Enquire
051 15BA007CP
PIPE - KINETIC DAMPER REBOUND - REAR RH 		$1,289.04 1
TO
053 00RB098
P-CLIP - DIA 10 - SILICONE 		- 3
PE
 Enquire
054 15BA072CP
PIPE ASSY - KINETIC DAMPER - REAR 		- 1
PE
 Enquire
055 15BA143CP
BRACKET - PIPEWORK - KINETIC DAMPER - REAR - LH 		$48.37 1
TO
056 00RX001
BOLT - M5X16 - HEX 		- 8
PE
 Enquire
057 00RA568
BOLT - M6X20 - HEX 		- 2
PE
 Enquire
058 15BA144CP
BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH 		$49.18 1
TO
059 15BA141CP
BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR LH 		$49.18 1
TO
060 15BA142CP
BRACKET - KINETIC DAMPERER - BUMP PIPE - REAR RH 		$49.18 1
TO
074 15BA235CP
KDAMP-CARBON-ACCUM-BUMP-RR-LH 		$9,103.98 1
TO
076 00RA061
Screw - M6x16 - Flange Hex 		- 2
PE
 Enquire
078 12B0743CP
WASHER - PIPE - KENECTIC DAMPER 		$40.26 1
TO
