10 - Closures Ancillaries - 10.3 - Door Hardware

McLaren Senna

Find Your Part

McLaren Senna - 10 - CLOSURES ANCILLARIES - 10.3 - DOOR HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AD251CP DOOR HANDLE LH $59.94 To Order
Photo Part No Description Price (each) Stock
13A4087CP SWITCH - DOOR RELEASE - PUSH BUTTON $100.68 To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RL009 TY-FAST PLATFORM-750-0-C Enquire To Order
Photo Part No Description Price (each) Stock
15AD252CP DOOR HANDLE RH $59.94 To Order
Photo Part No Description Price (each) Stock
00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA641 ROD END - GAS STRUT Enquire To Order
Photo Part No Description Price (each) Stock
15AC072CP BRACKET - GAS STRUT - FRONT - LH $198.27 To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15AC073CP BRACKET - GAS STRUT - FRONT - RH $198.27 To Order
Photo Part No Description Price (each) Stock
00RA152 SCREW CAP - M6X25 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
15AB224CP MOUNTING PLATE - DOOR BLADE $65.98 To Order
Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
15AA592CP STONE PROTECTION - DOOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
15AA850CP STONE PROTECTION - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
15AA592CP STONE PROTECTION - DOOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
15AC918CP ACCESS DOOR PANEL - REAR - LH $214.14 To Order
Photo Part No Description Price (each) Stock
15AC919CP ACCESS DOOR PANEL - REAR - RH $214.14 To Order
Photo Part No Description Price (each) Stock
15AC841CP MOUNT - GAS STRUT - LH $516.52 To Order
Photo Part No Description Price (each) Stock
15AC842CP MOUNT - GAS STRUT - RH $516.52 To Order

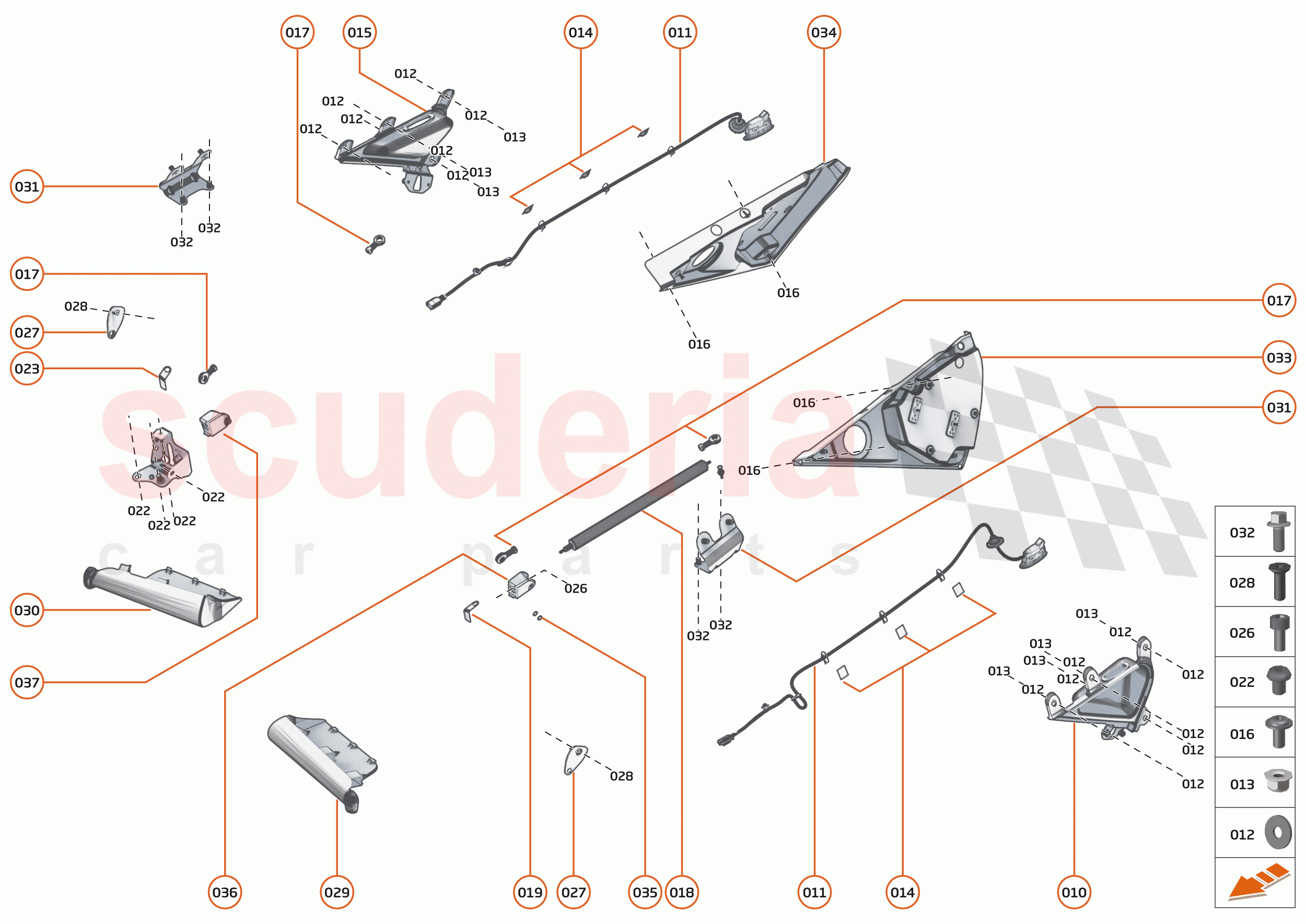

10 - CLOSURES ANCILLARIES - 10.3 - DOOR HARDWARE of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AD251CP
DOOR HANDLE LH 		$59.94 1
TO
011 13A4087CP
SWITCH - DOOR RELEASE - PUSH BUTTON 		$100.68 2
TO
012 00RC017
WASHER - M5X15X1.2 		- 16
PE
 Enquire
013 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 8
PE
 Enquire
014 00RL009
TY-FAST PLATFORM-750-0-C 		- 6
PE
 Enquire
015 15AD252CP
DOOR HANDLE RH 		$59.94 1
TO
016 00RA398
SCREW - SOCKET HEAD - FLANGED - M5X10 		- 4
PE
 Enquire
017 00RA641
ROD END - GAS STRUT 		- 4
PE
 Enquire
019 15AC072CP
BRACKET - GAS STRUT - FRONT - LH 		$198.27 1
TO
022 00RA019
SCREW - M6X12-10.9 - HEX 		- 8
PE
 Enquire
023 15AC073CP
BRACKET - GAS STRUT - FRONT - RH 		$198.27 1
TO
026 00RA152
SCREW CAP - M6X25 - HEX SOCKET 		- 2
PE
 Enquire
027 15AB224CP
MOUNTING PLATE - DOOR BLADE 		$65.98 2
TO
028 00RA311
Screw - M6x16 - Hex Socket 		- 2
PE
 Enquire

15AA592CP

STONE PROTECTION - DOOR - LH

 -
030 15AA850CP
STONE PROTECTION - DOOR - RH 		- 1
PE
 Enquire
032 00RA556
BOLT - HEX - FLANGED - M6X16 		- 4
PE
 Enquire
033 15AC918CP
ACCESS DOOR PANEL - REAR - LH 		$214.14 1
TO
034 15AC919CP
ACCESS DOOR PANEL - REAR - RH 		$214.14 1
TO
036 15AC841CP
MOUNT - GAS STRUT - LH 		$516.52 1
TO
037 15AC842CP
MOUNT - GAS STRUT - RH 		$516.52 1
TO
