7 - Closures - 7.2 - Doors Structure

McLaren Senna

Find Your Part

McLaren Senna - 7 - CLOSURES - 7.2 - DOORS STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AA377MP ASSY DOOR COUPE-NON-AUDIO-LH - VCF Enquire To Order
15AD098CP DOOR ASSY - NON AUDIO - LH $87,969.79 To Order
15AD096CP DOOR ASSY - LH $87,969.79 To Order
Photo Part No Description Price (each) Stock
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
15AA378MP ASSY DOOR COUPE-NON-AUDIO-RH - VCF Enquire To Order
15AD099CP DOOR ASSY - NON AUDIO - RH $87,969.79 To Order
15AD097CP DOOR ASSY - RH $87,969.79 To Order
Photo Part No Description Price (each) Stock
15AA682CP DOOR BLADE - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RB103 Trim Panel Clip - Raymond - 017842 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
11A3464CP SPACER - BULKHEAD GLASS $8.10 To Order
Photo Part No Description Price (each) Stock
00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
15AA679CP ACCESS DOOR PANEL - FRONT - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AB797CP DOOR PANEL - UPPER - CARBON - FOR PAINT - LH $463.23 To Order
Photo Part No Description Price (each) Stock
14AB816CP DOOR PANEL - UPPER - CARBON - FOR PAINT - RH $463.23 To Order
Photo Part No Description Price (each) Stock
15AC808CP TAPE - STONE PROTECTION - DOOR SKIRT - TOP LH $121.84 To Order
Photo Part No Description Price (each) Stock
15AC810CP TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM LH $45.68 To Order
Photo Part No Description Price (each) Stock
15AC804CP TAPE - STONE PROTECTION - DOOR INNER - TOP LH $40.60 To Order
Photo Part No Description Price (each) Stock
15AC806CP TAPE - STONE PROTECTION - DOOR INNER - BOTTOM LH $45.68 To Order
Photo Part No Description Price (each) Stock
15AC812CP TAPE - STONE PROTECTION - DOOR BLADE - OUTER RH $192.93 To Order
Photo Part No Description Price (each) Stock
15AC814CP TAPE - STONE PROTECTION - DOOR GLASS - LOWER RH $45.68 To Order
Photo Part No Description Price (each) Stock
15AC816CP TAPE - STONE PROTECTION - DOOR INNER - TOP RH $40.60 To Order
Photo Part No Description Price (each) Stock
15AC818CP TAPE - STONE PROTECTION - DOOR INNER - BOTTOM RH $50.76 To Order
Photo Part No Description Price (each) Stock
15AC820CP TAPE - STONE PROTECTION - DOOR SKIRT - TOP RH $132.00 To Order
Photo Part No Description Price (each) Stock
15AC822CP TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM RH $45.68 To Order
Photo Part No Description Price (each) Stock
15AC799CP TAPE - STONE PROTECTION - DOOR BLADE -OUTER LH $192.93 To Order
Photo Part No Description Price (each) Stock
15AC802CP TAPE - STONE PROTECTION - DOOR GLASS - LOWER LH $40.60 To Order
Photo Part No Description Price (each) Stock
15AA683CP DOOR BLADE - RH $4,531.84 To Order

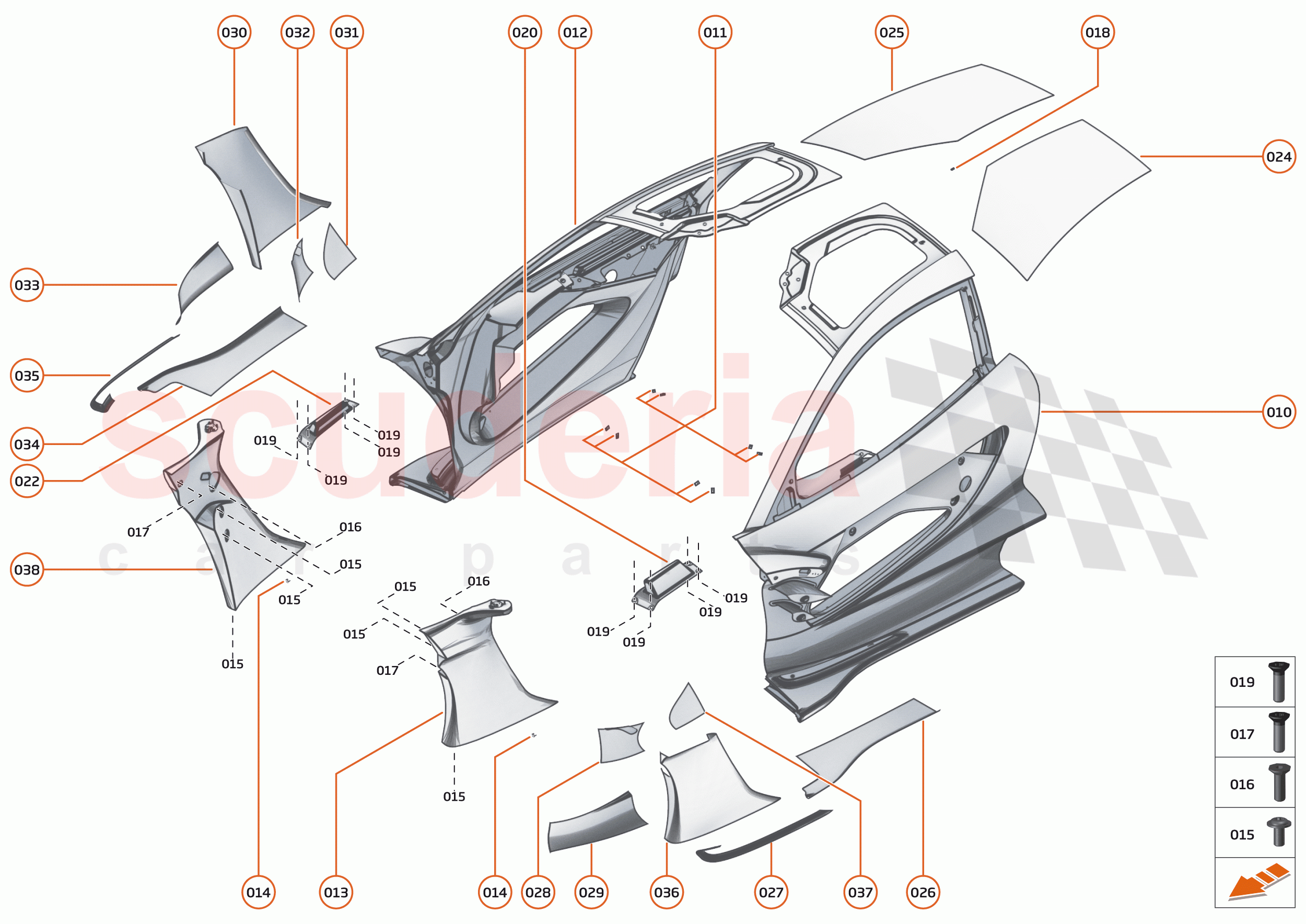

7 - CLOSURES - 7.2 - DOORS STRUCTURE of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AA377MP
ASSY DOOR COUPE-NON-AUDIO-LH - VCF 		- 1
PE
 Enquire
010 15AD098CP
DOOR ASSY - NON AUDIO - LH
Superseded parts: 15AC519CP; 		$87,969.79 1
TO
010 15AD096CP
DOOR ASSY - LH
Superseded parts: 15AC511CP; 		$87,969.79 1
TO
011 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- 8
PE
 Enquire
012 15AA378MP
ASSY DOOR COUPE-NON-AUDIO-RH - VCF 		- 1
PE
 Enquire
012 15AD099CP
DOOR ASSY - NON AUDIO - RH
Superseded parts: 15AC523CP; 		$87,969.79 1
TO
012 15AD097CP
DOOR ASSY - RH
Superseded parts: 15AC515CP; 		$87,969.79 1
TO
013 15AA682CP
DOOR BLADE - LH 		- 1
PE
 Enquire
014 00RB103
Trim Panel Clip - Raymond - 017842 		- 2
PE
 Enquire
015 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 8
PE
 Enquire
016 00RA311
Screw - M6x16 - Hex Socket 		- 2
PE
 Enquire
018 11A3464CP
SPACER - BULKHEAD GLASS 		$8.10 1
TO
019 00RA635
COUNTERSUNK - TORX HEAD SCREW M5X16 		- 8
PE
 Enquire
020 15AA679CP
ACCESS DOOR PANEL - FRONT - LH 		- 1
PE
 Enquire
021 15AA886CP
ACCESS DOOR PANEL - FRONT - RH 		- 1
PE
 Enquire
024 14AB797CP
DOOR PANEL - UPPER - CARBON - FOR PAINT - LH 		$463.23 1
TO
025 14AB816CP
DOOR PANEL - UPPER - CARBON - FOR PAINT - RH 		$463.23 1
TO
026 15AC808CP
TAPE - STONE PROTECTION - DOOR SKIRT - TOP LH 		$121.84 1
TO
027 15AC810CP
TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM LH 		$45.68 1
TO
028 15AC804CP
TAPE - STONE PROTECTION - DOOR INNER - TOP LH 		$40.60 1
TO
029 15AC806CP
TAPE - STONE PROTECTION - DOOR INNER - BOTTOM LH 		$45.68 1
TO
030 15AC812CP
TAPE - STONE PROTECTION - DOOR BLADE - OUTER RH 		$192.93 1
TO
031 15AC814CP
TAPE - STONE PROTECTION - DOOR GLASS - LOWER RH 		$45.68 1
TO
032 15AC816CP
TAPE - STONE PROTECTION - DOOR INNER - TOP RH 		$40.60 1
TO
033 15AC818CP
TAPE - STONE PROTECTION - DOOR INNER - BOTTOM RH 		$50.76 1
TO
034 15AC820CP
TAPE - STONE PROTECTION - DOOR SKIRT - TOP RH 		$132.00 1
TO
035 15AC822CP
TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM RH 		$45.68 1
TO
036 15AC799CP
TAPE - STONE PROTECTION - DOOR BLADE -OUTER LH 		$192.93 1
TO
037 15AC802CP
TAPE - STONE PROTECTION - DOOR GLASS - LOWER LH 		$40.60 1
TO
038 15AA683CP
DOOR BLADE - RH 		$4,531.84 1
TO
