Name: 6 - PANELS - 6.7 - REAR PANELS - CENTRE
Rating: 4.8 (1 reviews)

Find Your Part

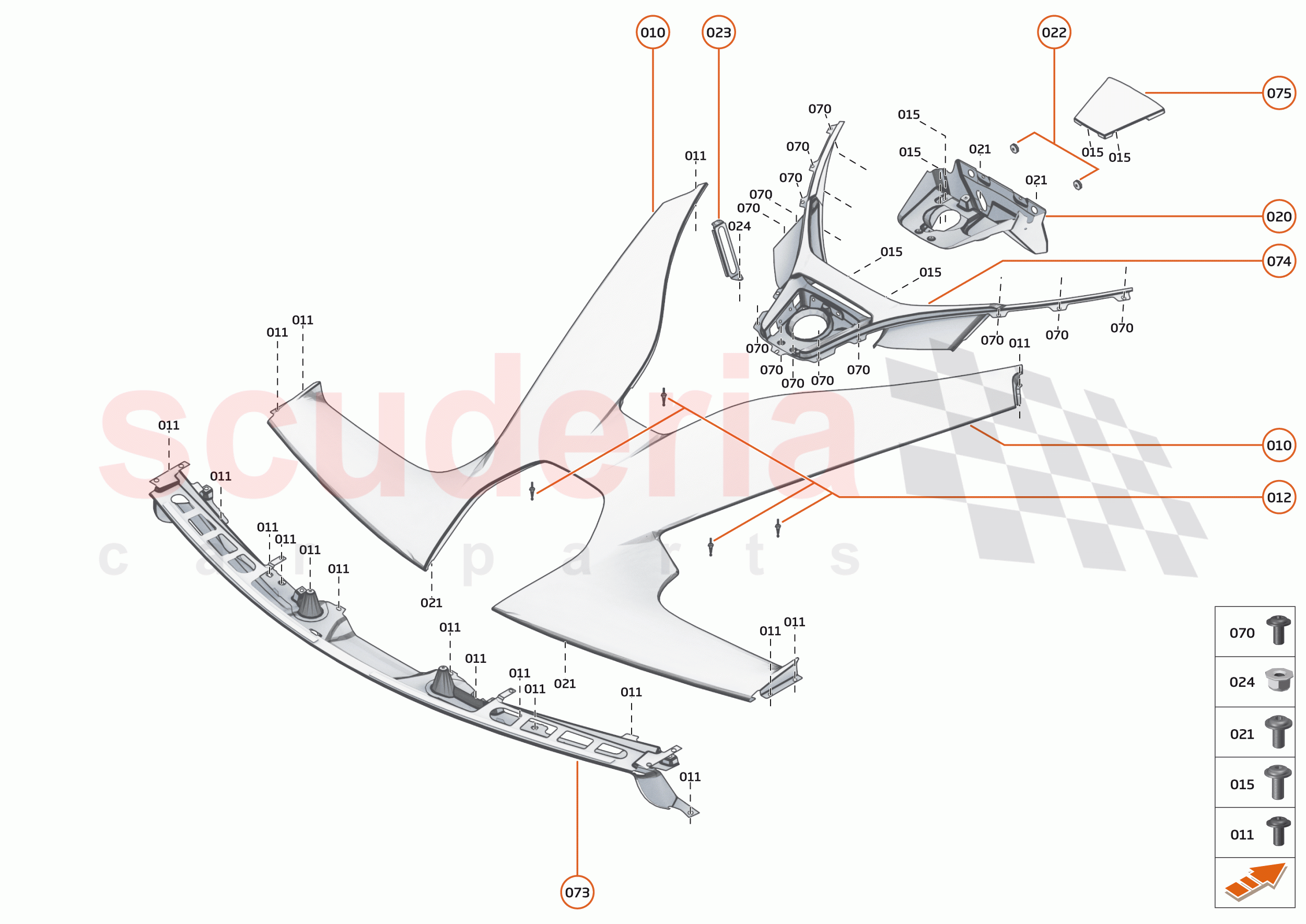

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15AB080CP	ASSY - REAR DECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA543	BALL STUD - REAR DECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC772CP	SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	$3,775.03	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG035	REEVITE - 15.9X3.2X8X82X5.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AB778CP	BRACKET - HIGH MOUNT STOP LIGHT	$55.51	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA408	BUTTON HD FLANGE - M4X8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC965CP	BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC870CP	ASSY CHMSL HOUSING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC960CP	ASSY OIL FILLER FLAP	Enquire	To Order

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	15AB080CP	ASSY - REAR DECK	15AB080CP ASSY - REAR DECK REAR DECK;	-	1	PE	Enquire
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-	22	PE	Enquire
012	00RA543	BALL STUD - REAR DECK	00RA543 BALL STUD - REAR DECK	-	4	PE	Enquire
015	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10	-	6	PE	Enquire
020	15AC772CP	SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	15AC772CP SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	$3,775.03	1	TO
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	4	PE	Enquire
022	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4	-	2	PE	Enquire
023	15AB778CP	BRACKET - HIGH MOUNT STOP LIGHT	15AB778CP BRACKET - HIGH MOUNT STOP LIGHT	$55.51	1	TO
024	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED	-	1	PE	Enquire
070	00RA408	BUTTON HD FLANGE - M4X8	00RA408 BUTTON HD FLANGE - M4X8	-	13	PE	Enquire
073	15AC965CP	BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	15AC965CP BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	-	1	PE	Enquire
074	15AC870CP	ASSY CHMSL HOUSING PANEL	15AC870CP ASSY CHMSL HOUSING PANEL	-	1	PE	Enquire
075	15AC960CP	ASSY OIL FILLER FLAP	15AC960CP ASSY OIL FILLER FLAP	-	1	PE	Enquire

Haven't found what you're looking for?

View Cart / Checkout

6 - Panels - 6.7 - Rear Panels - Centre

McLaren Senna
