5 - Upper Structures - 5.1 - Rear Upper Structure

McLaren Senna

Find Your Part

McLaren Senna - 5 - UPPER STRUCTURES - 5.1 - REAR UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RC105 Washer - M8x16x1.6 Enquire To Order

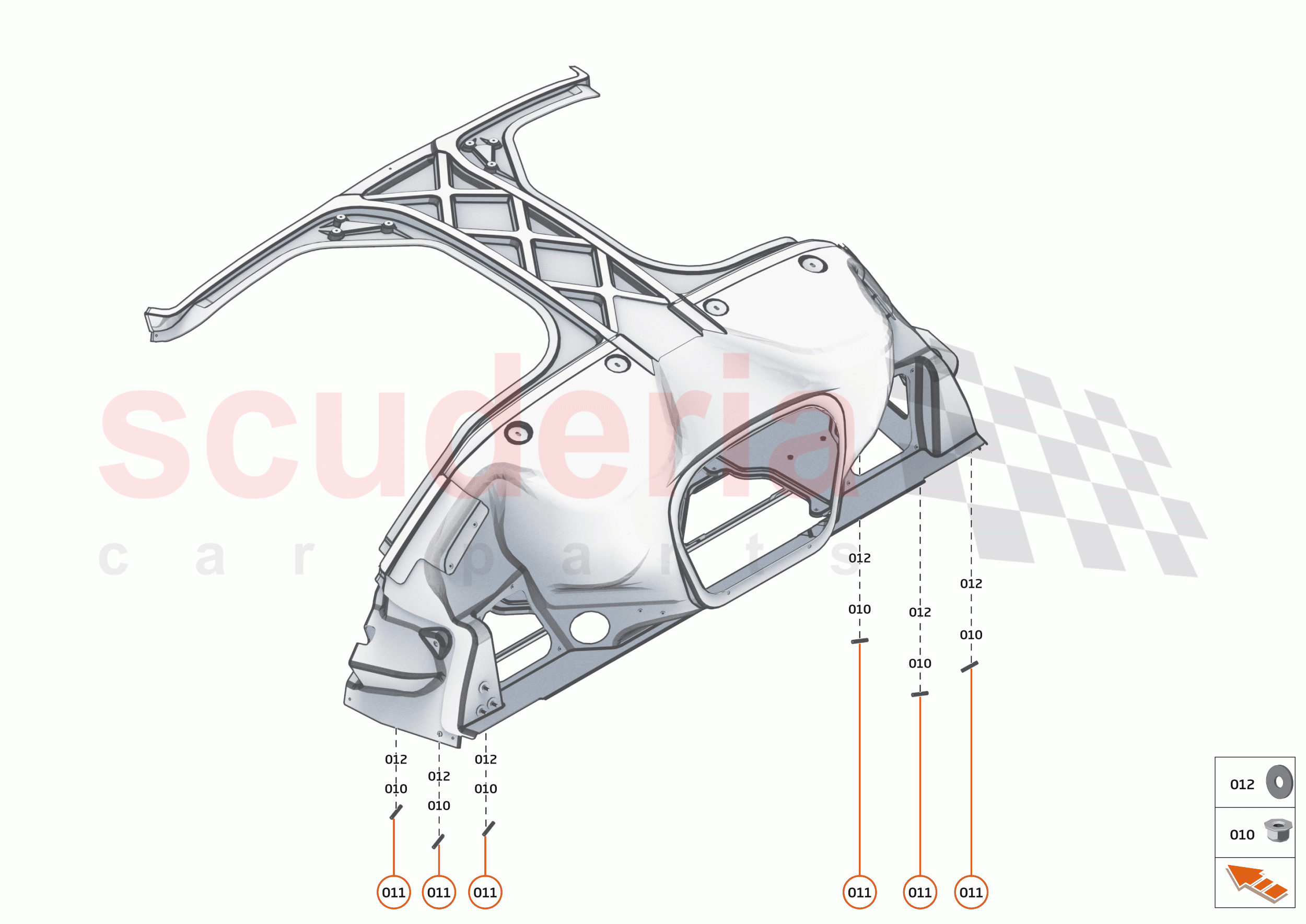

5 - UPPER STRUCTURES - 5.1 - REAR UPPER STRUCTURE of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA056
NUT - M8-8 - LOCK HEX 		- 6
PE
 Enquire
011 00RA242
STUD M8X1.25X35 		- 6
PE
 Enquire
012 00RC105
Washer - M8x16x1.6 		- 6
PE
 Enquire
