4 - Floors - 4.4 - Rear Non-Structural Floors

McLaren Senna

Find Your Part

McLaren Senna - 4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AB814CP ACCESS PANEL - DIFFUSER $55.84 To Order
Photo Part No Description Price (each) Stock
15AC583CP REAR DIFFUSER - CARBON FIBRE GLOSS Enquire To Order
Photo Part No Description Price (each) Stock
00RA301 Clip - Spier - M5 - 0.5/2.1-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order

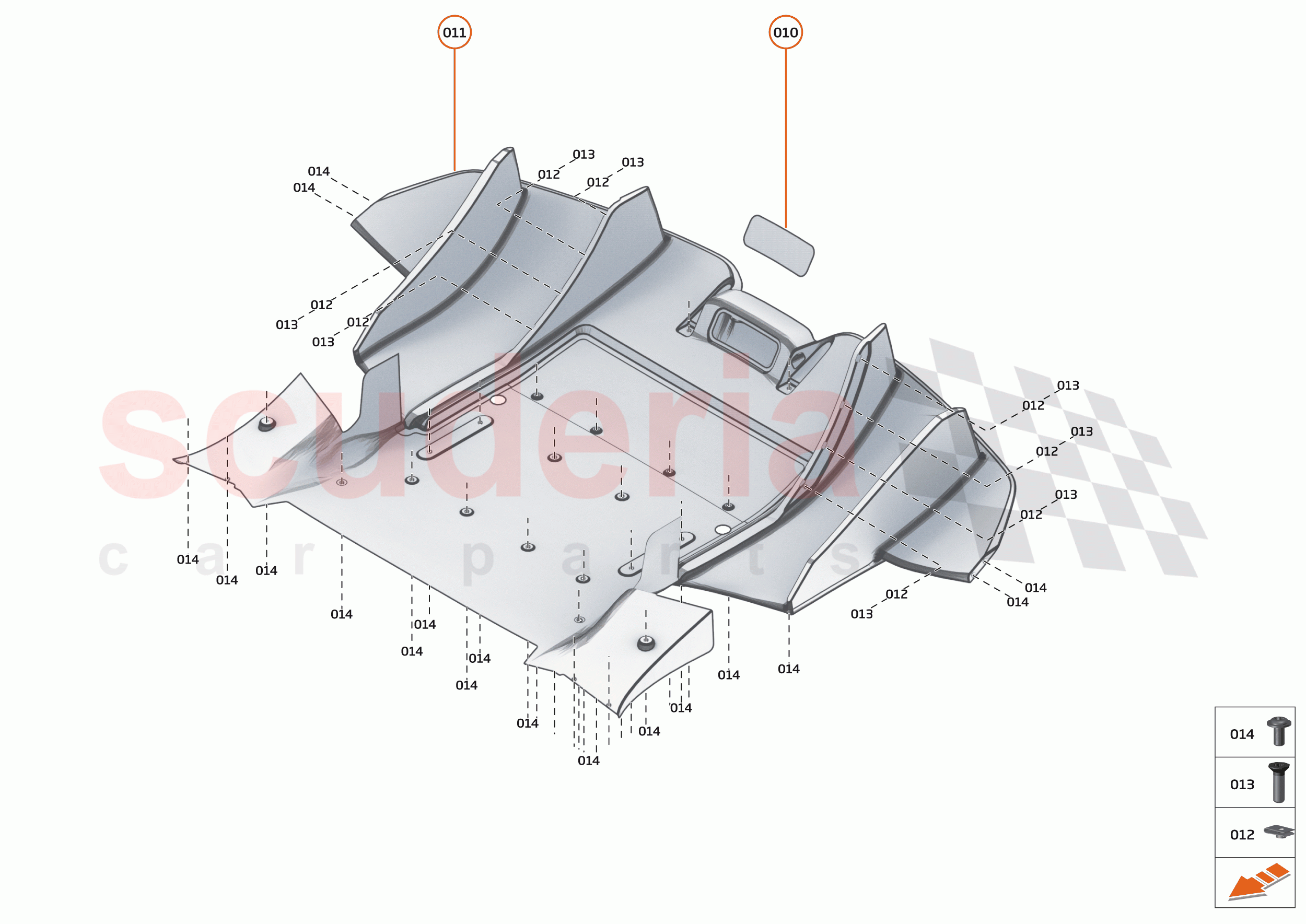

4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AB814CP
ACCESS PANEL - DIFFUSER 		$55.84 1
TO
011 15AC583CP
REAR DIFFUSER - CARBON FIBRE GLOSS 		- 1
PE
 Enquire
012 00RA301
Clip - Spier - M5 - 0.5/2.1-SS 		- 8
PE
 Enquire
013 00RA635
COUNTERSUNK - TORX HEAD SCREW M5X16 		- 8
PE
 Enquire
014 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
015 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 24
PE
 Enquire
016 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- -
PE
 Enquire
017 00RC013
WASHER - M6X18X1.6 		- -
PE
 Enquire
