McLaren Senna - 1 - FRONT STRUCTURES - 1.2 - FRONT SUBFRAME

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A9786CP BOLT - M10X85 - HEX $4.65 To Order
Photo Part No Description Price (each) Stock
15AB709CP SUBFRAME - FRONT $5,901.46 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order

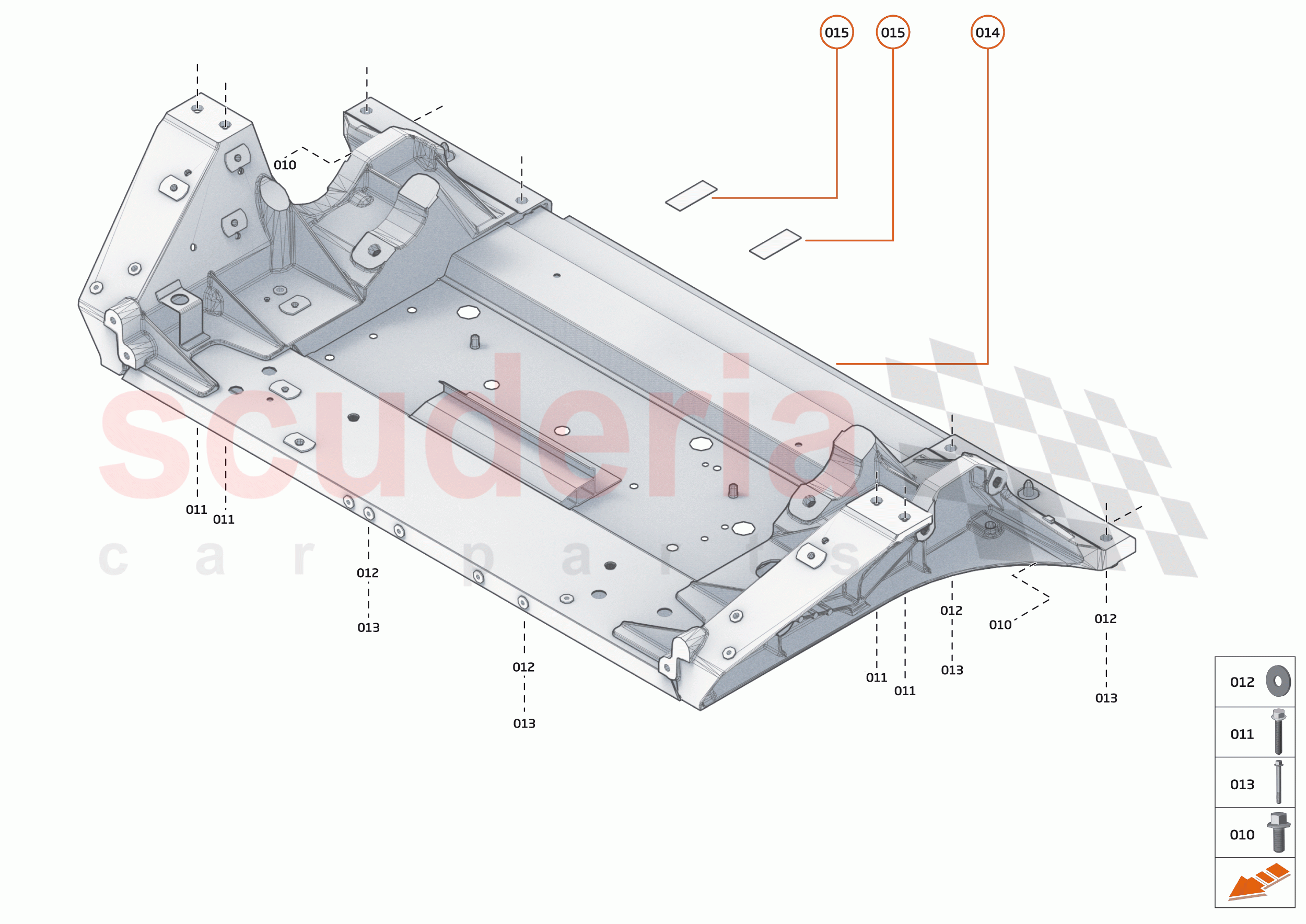

1 - FRONT STRUCTURES - 1.2 - FRONT SUBFRAME of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
011 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4
PE
 Enquire
012 00RC065
WASHER - M10X21X2.0 		- 4
PE
 Enquire
013 11A9786CP
BOLT - M10X85 - HEX 		$4.65 4
TO
014 15AB709CP
SUBFRAME - FRONT 		$5,901.46 1
TO
015 00RL004
FELT TAPE
FELT TAPE; 		- 2
PE
 Enquire
