26 - Fuel Tank - 26.3 - Fuel Filler Neck

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 26 - FUEL TANK - 26.3 - FUEL FILLER NECK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12K0217CP Fuel Filler - Assembly $548.37 To Order
Photo Part No Description Price (each) Stock
11K0194CP Seal - Fuel Filler $110.76 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12K0218CP Heatshield - Fuel Filler Hose $71.07 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
12K0100CP Hose - Recirculation - Fuel Filler $50.76 To Order
Photo Part No Description Price (each) Stock
00RB064 Hose Clamp -15.7 - Oetiker Enquire To Order
Photo Part No Description Price (each) Stock
00RB123 Oetiker Clip - 37.6 Enquire To Order

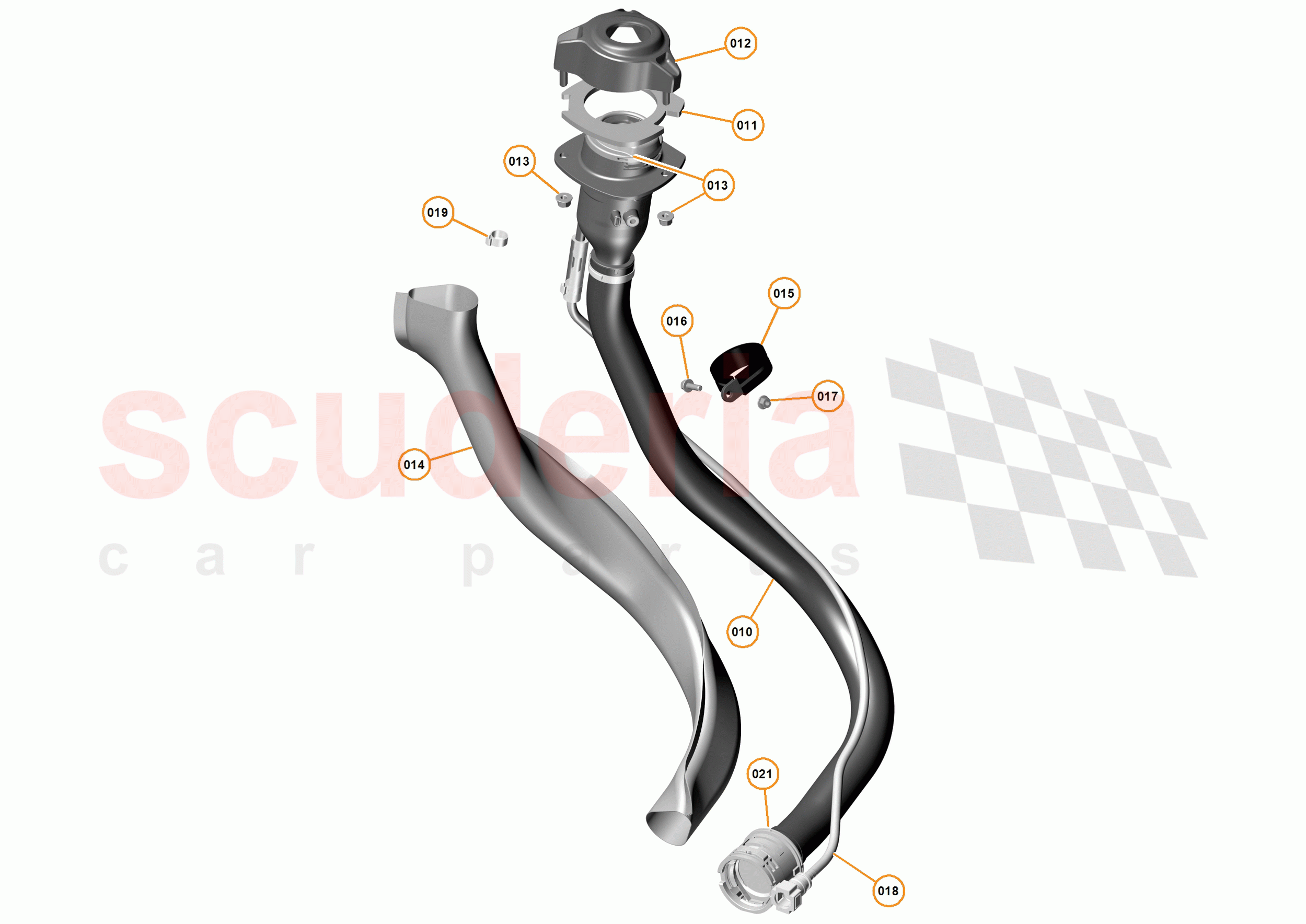

26 - FUEL TANK - 26.3 - FUEL FILLER NECK of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 12K0251CP
Seal - Finisher - Fuel Filler 		$3.84 1
TO
010 12K0217CP
Fuel Filler - Assembly 		$548.37 1
TO
011 11K0194CP
Seal - Fuel Filler 		$110.76 1
TO
013 00RA055
NUT - M6 - LOCKING - HEX 		- 3
PE
 Enquire
014 12K0218CP
Heatshield - Fuel Filler Hose 		$71.07 1
TO
015 00RB029
P CLIP - DIA 45-M6 		- 1
PE
 Enquire
016 00RA063
Screw - M5x16 - Hex 		- 1
PE
 Enquire
017 00RA054
Nut - M5 - Lock Hex 		- 1
PE
 Enquire
018 12K0100CP
Hose - Recirculation - Fuel Filler 		$50.76 1
TO
019 00RB064
Hose Clamp -15.7 - Oetiker 		- 1
PE
 Enquire
020 12K0249CP
Finisher - Fuel filler 		$2,802.87 1
TO
021 00RB123
Oetiker Clip - 37.6 		- 2
PE
 Enquire
