42 - Hybrid Drive Assembly - 42.1 - Hybrid Drive Clutch

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 42 - HYBRID DRIVE ASSEMBLY - 42.1 - HYBRID DRIVE CLUTCH

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12G0122CP Actuator - Clutch - Electro Hydraulic $4,678.46 To Order
Photo Part No Description Price (each) Stock
12G0427CP O-Ring - Clutch Actuator Reservoir - Adaptor $11.14 To Order
12G0429CP Reservoir Assembly - Clutch Actuator $507.76 To Order
Photo Part No Description Price (each) Stock
00RA028 BOLT - M8X25 - 10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA252 Screw - M6x20 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
12G0442CP Bracket - Mounting - Clutch Actuator $385.87 To Order
Photo Part No Description Price (each) Stock
12G0259CP Pipe Assembly - Clutch Actuator - Feed $1,299.87 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB047 Swivel Clip - 9-9.5 - Male-Female Enquire To Order
Photo Part No Description Price (each) Stock
12G0262CP Pipe Assy - CSC Bleed $1,379.54 To Order
Photo Part No Description Price (each) Stock
00RA152 SCREW CAP - M6X25 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
12G0437CP Washer - M6 - Plain - FTE Isolator $171.18 To Order
Photo Part No Description Price (each) Stock
12G0438CP Washer - M6 - Top-Hat - FTE Isolator $171.18 To Order

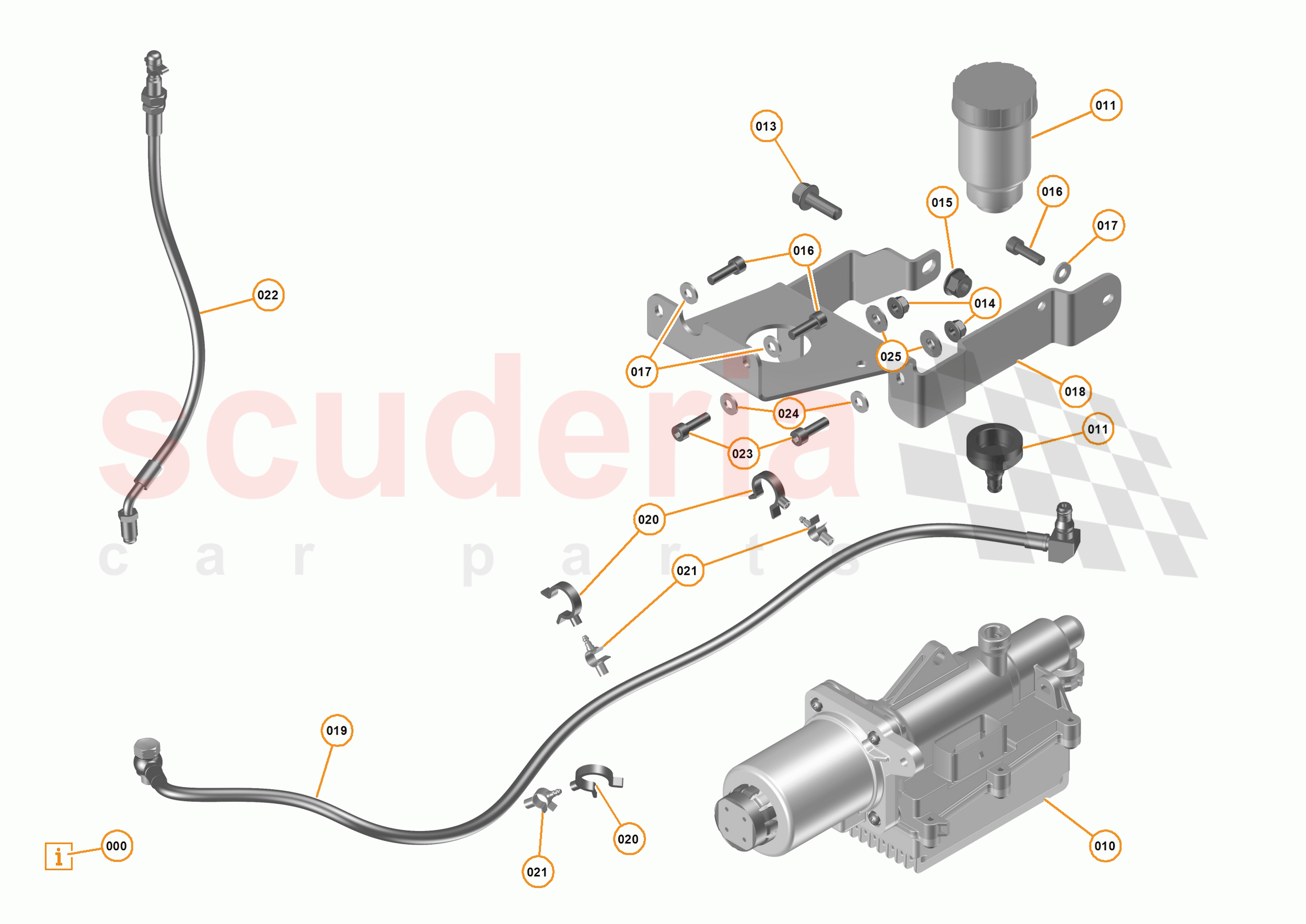

42 - HYBRID DRIVE ASSEMBLY - 42.1 - HYBRID DRIVE CLUTCH of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12G0122CP
Actuator - Clutch - Electro Hydraulic 		$4,678.46 1
TO
011 12G0427CP
O-Ring - Clutch Actuator Reservoir - Adaptor 		$11.14 1
TO
011 12G0429CP
Reservoir Assembly - Clutch Actuator 		$507.76 1
TO
013 00RA028
BOLT - M8X25 - 10.9 - HEX 		- 1
PE
 Enquire
014 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
015 00RA056
NUT - M8-8 - LOCK HEX 		- 1
PE
 Enquire
016 00RA252
Screw - M6x20 - Hex Socket 		- 3
PE
 Enquire
017 00RC028
WASHER - M6 FORM C 		- 3
PE
 Enquire
018 12G0442CP
Bracket - Mounting - Clutch Actuator 		$385.87 1
TO
019 12G0259CP
Pipe Assembly - Clutch Actuator - Feed 		$1,299.87 1
TO
020 00RB007
CLIP - 18-20MM - FEMALE 		- 3
PE
 Enquire
021 00RB047
Swivel Clip - 9-9.5 - Male-Female 		- 3
PE
 Enquire
022 12G0262CP
Pipe Assy - CSC Bleed 		$1,379.54 1
TO
023 00RA152
SCREW CAP - M6X25 - HEX SOCKET 		- 2
PE
 Enquire
024 12G0437CP
Washer - M6 - Plain - FTE Isolator 		$171.18 2
TO
025 12G0438CP
Washer - M6 - Top-Hat - FTE Isolator 		$171.18 2
TO
