McLaren P1 Coupe - 39 - TRANSMISSION COOLING SYSTEMS - 39.3 - CLUTCH OIL COOLER FEED AND RETURN PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12G0353CP Hose - Clutch Cooler - Feed $913.96 To Order
Photo Part No Description Price (each) Stock
12G0354CP Hose - Clutch Cooler - Return $974.90 To Order
Photo Part No Description Price (each) Stock
11G0158CP O-ring - Cooler - Trans/Clutch $17.25 To Order
Photo Part No Description Price (each) Stock
11G0234CP O-ring - Clutch Cooler $12.89 To Order
Photo Part No Description Price (each) Stock
12G0357CP Bracket - Clutch Cooler Pipes - Front $534.43 To Order
Photo Part No Description Price (each) Stock
12G0405CP Bracket - Clutch Cooler Pipes - Rear $622.51 To Order
Photo Part No Description Price (each) Stock
12G0359CP Bracket - Clutch Cooler Pipes - Rear Frame - LH $76.15 To Order
Photo Part No Description Price (each) Stock
12G0360CP Bracket - Clutch Cooler Pipes - Rear Frame - RH $76.15 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA309 NUT - M6-SS - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
12G0281CP Pipe Assy - Hybrid Drive Assembly - Feed - inc. Banjo bolts and washers $649.93 To Order

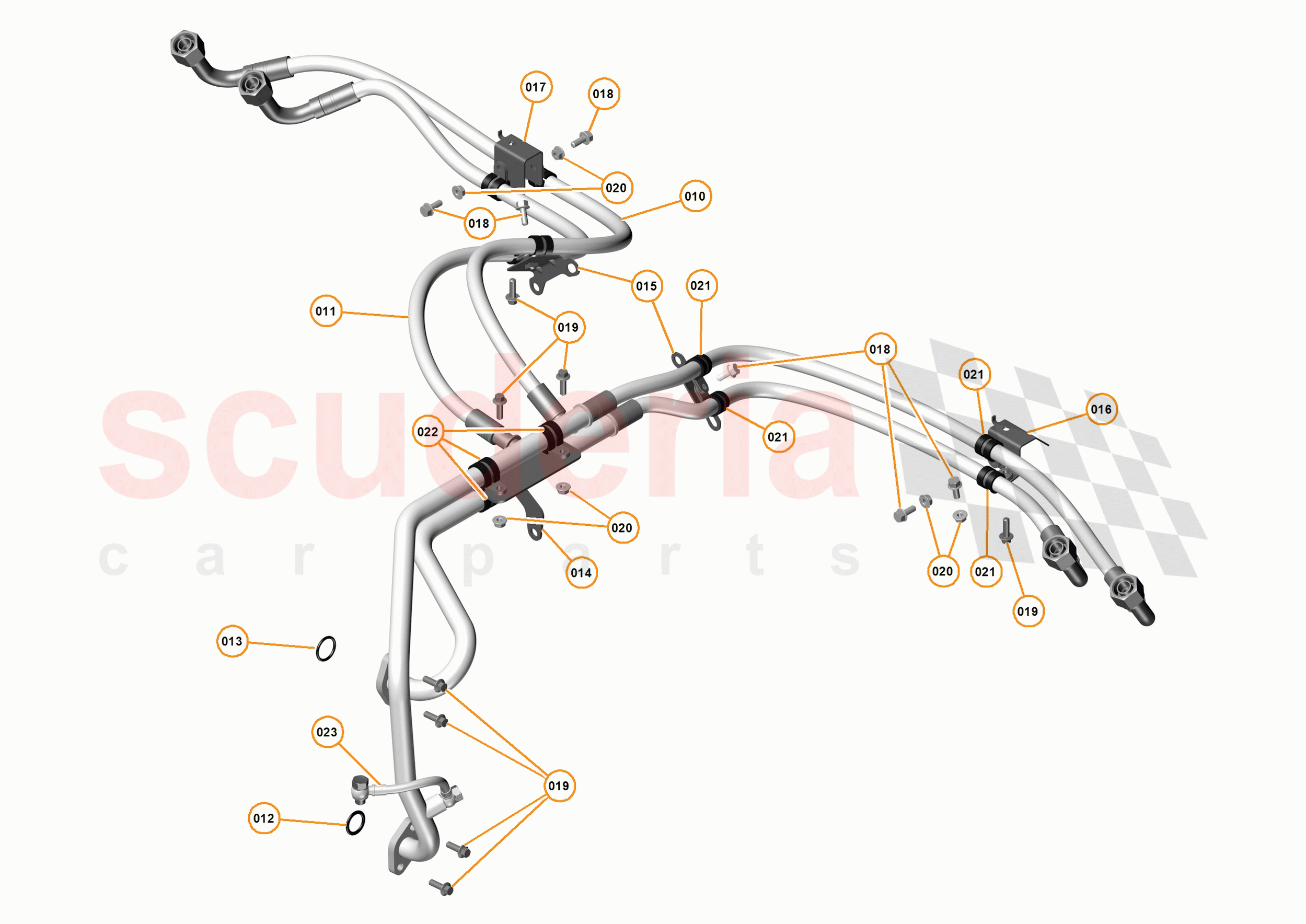

39 - TRANSMISSION COOLING SYSTEMS - 39.3 - CLUTCH OIL COOLER FEED AND RETURN PIPES of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12G0353CP
Hose - Clutch Cooler - Feed 		$913.96 1
TO
011 12G0354CP
Hose - Clutch Cooler - Return 		$974.90 1
TO
012 11G0158CP
O-ring - Cooler - Trans/Clutch 		$17.25 1
TO
013 11G0234CP
O-ring - Clutch Cooler 		$12.89 1
TO
014 12G0357CP
Bracket - Clutch Cooler Pipes - Front 		$534.43 1
TO
015 12G0405CP
Bracket - Clutch Cooler Pipes - Rear 		$622.51 2
TO
016 12G0359CP
Bracket - Clutch Cooler Pipes - Rear Frame - LH 		$76.15 1
TO
017 12G0360CP
Bracket - Clutch Cooler Pipes - Rear Frame - RH 		$76.15 1
TO
018 00RA061
Screw - M6x16 - Flange Hex 		- 6
PE
 Enquire
019 00RA083
SCREW - M6X20 - FLANGE HEX 		- 8
PE
 Enquire
020 00RA309
NUT - M6-SS - HEX 		- 6
PE
 Enquire
021 00RB005
P CLIP - DIA 16 		- 8
PE
 Enquire
022 00RB060
P CLIP - DIA 20 		- 4
PE
 Enquire
023 12G0281CP
Pipe Assy - Hybrid Drive Assembly - Feed - inc. Banjo bolts and washers 		$649.93 1
TO
