37 - Engine Mounting - 37.1 - Engine Mounting System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0248CP BRACKET - SUPPORT - ENGINE LINK $223.40 To Order
Photo Part No Description Price (each) Stock
00RX049 BOLT - M8X60 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12F0198CP Link Assy - Engine Mount $779.73 To Order
Photo Part No Description Price (each) Stock
11F0619CP ENGINE LINK MOUNT-SUPPORT $45.68 To Order
Photo Part No Description Price (each) Stock
11F2681CP SPACER BUSH LOCATOR $121.84 To Order
Photo Part No Description Price (each) Stock
00RA382 Bolt - Hex Head - Flange - M12x85 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RX048 BOLT - M12X90 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA005 NUT - M12 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
12F0202CP LINK ASSY - LATERAL - ENGINE MOUNT $779.73 To Order
Photo Part No Description Price (each) Stock
11F2680CP SPACER BUSH-ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
00RC061 WASHER - M12X40X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RX047 BOLT - M12X100 - HEX Enquire To Order

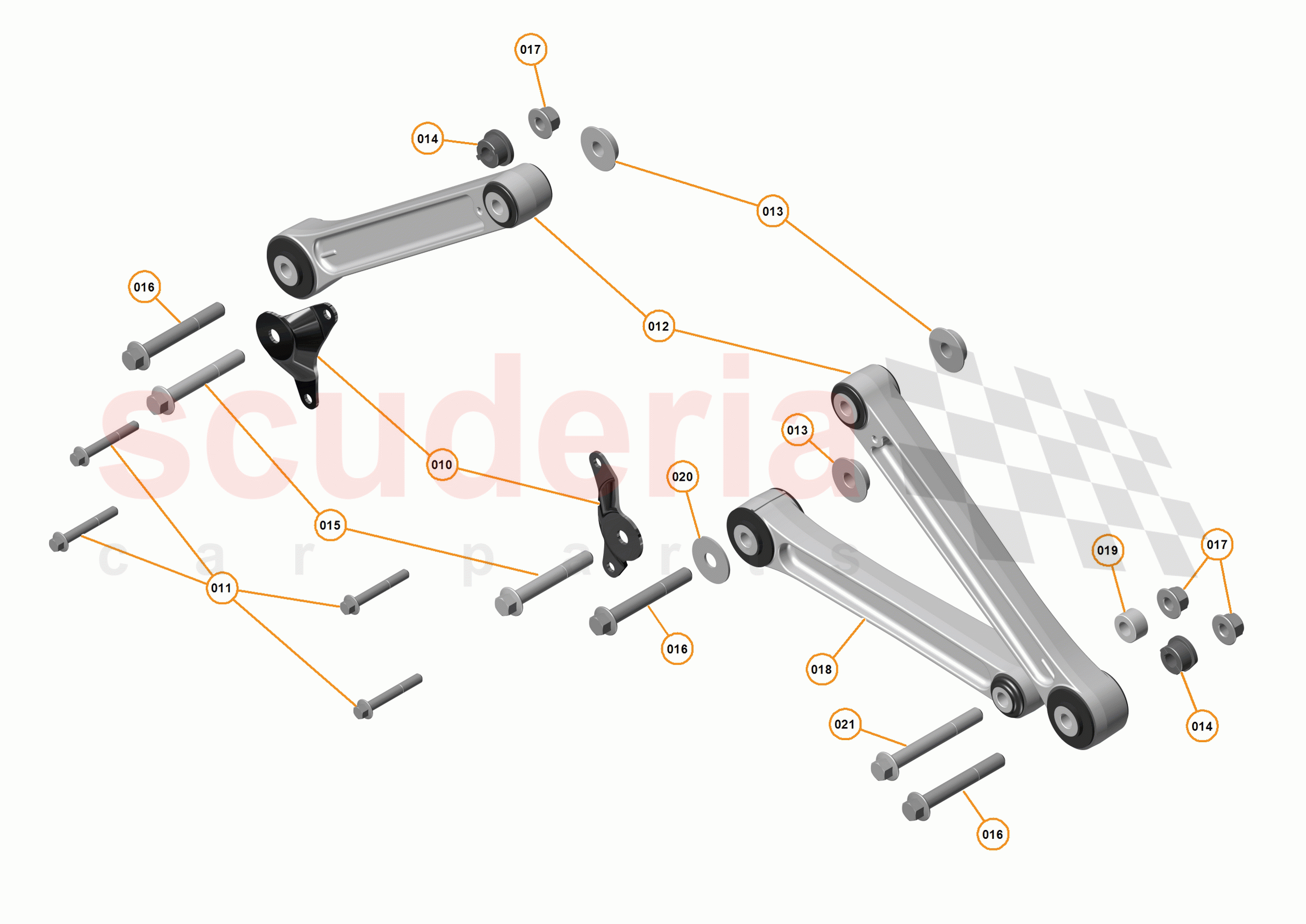

37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12F0248CP
BRACKET - SUPPORT - ENGINE LINK 		$223.40 1
TO
011 00RX049
BOLT - M8X60 - HEX 		- 4
PE
 Enquire
012 12F0198CP
Link Assy - Engine Mount 		$779.73 2
TO
013 11F0619CP
ENGINE LINK MOUNT-SUPPORT 		$45.68 3
TO
014 11F2681CP
SPACER BUSH LOCATOR 		$121.84 2
TO
015 00RA382
Bolt - Hex Head - Flange - M12x85 - 10.9 		- 2
PE
 Enquire
016 00RX048
BOLT - M12X90 - HEX 		- 3
PE
 Enquire
017 00RA005
NUT - M12 - LOCK HEX 		- 3
PE
 Enquire
018 12F0202CP
LINK ASSY - LATERAL - ENGINE MOUNT 		$779.73 1
TO
019 11F2680CP
SPACER BUSH-ENGINE 		$111.69 1
TO
020 00RC061
WASHER - M12X40X2 		- 1
PE
 Enquire
021 00RX047
BOLT - M12X100 - HEX 		- 1
PE
 Enquire
