34 - Engine Oil System - 34.1 - Engine Oil Tank

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0839CP Bolt - M8x40 - Engine - Shouldered $16.22 To Order
Photo Part No Description Price (each) Stock
12F0638CP Oil Tank - Engine $4,753.39 To Order
Photo Part No Description Price (each) Stock
11F0146CP BRKT MOUNT-OIL TAN24 $85.58 To Order
Photo Part No Description Price (each) Stock
11F0289CP AV MOUNT-WCAC 24 $25.37 To Order
Photo Part No Description Price (each) Stock
11F0430CP Spacer - Oil Tank $30.44 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA066 Bolt - M6x35 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $35.54 To Order
Photo Part No Description Price (each) Stock
23FA328CP Washer - Crush - Aluminium - 14x18x1.35 $6.93 To Order
Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $382.67 To Order
Photo Part No Description Price (each) Stock
12F0639CP Breather - Oil Tank $2,173.24 To Order
Photo Part No Description Price (each) Stock
12FA016CP O-RING ID30 X THK2.5 $50.76 To Order

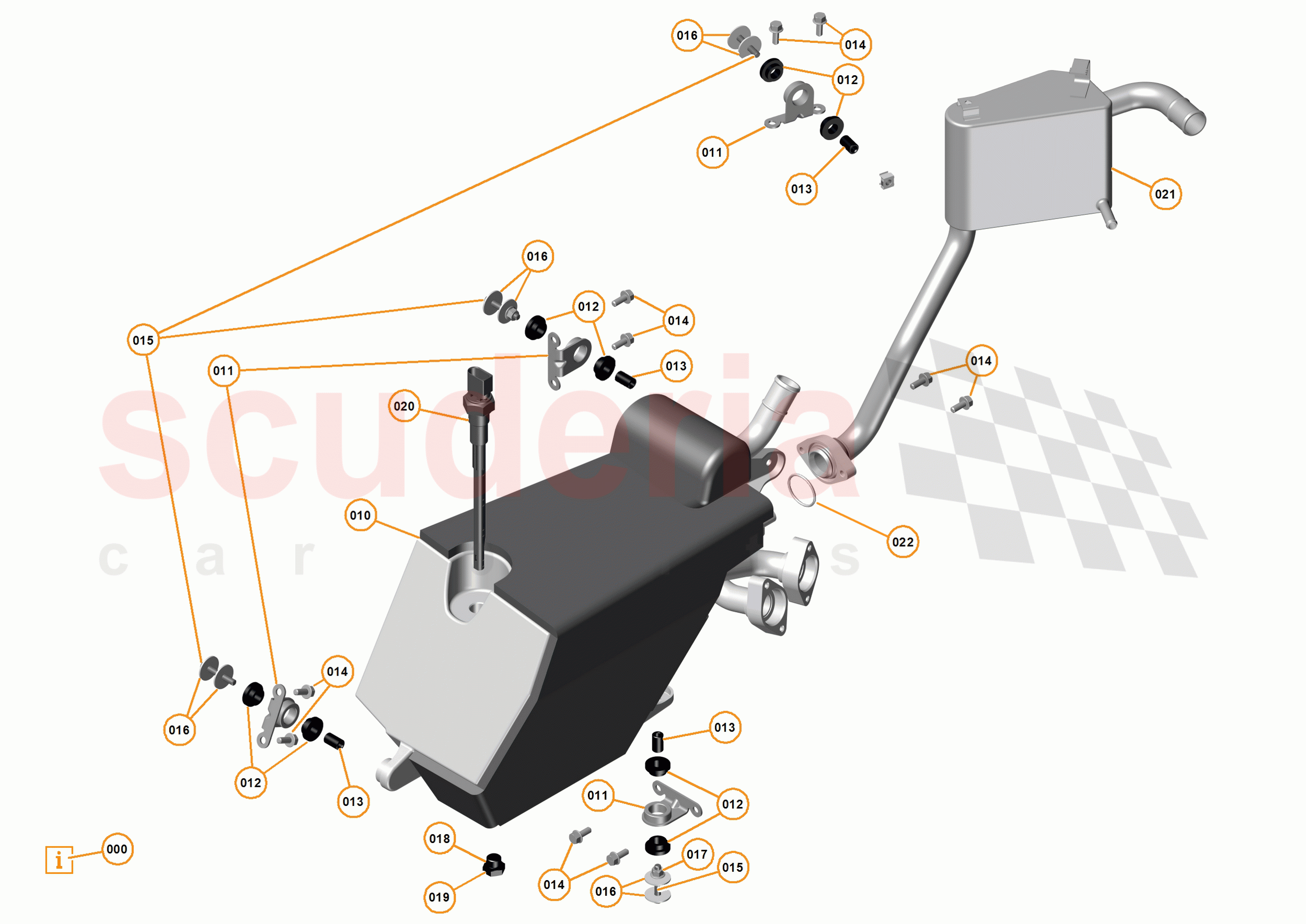

34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F0839CP
Bolt - M8x40 - Engine - Shouldered 		$16.22 1
TO
010 12F0638CP
Oil Tank - Engine 		$4,753.39 1
TO
011 11F0146CP
BRKT MOUNT-OIL TAN24 		$85.58 4
TO
012 11F0289CP
AV MOUNT-WCAC 24 		$25.37 8
TO
013 11F0430CP
Spacer - Oil Tank 		$30.44 4
TO
014 00RA061
Screw - M6x16 - Flange Hex 		- 10
PE
 Enquire
015 00RA066
Bolt - M6x35 - Hex 		- 4
PE
 Enquire
016 00RC043
WASHER - M6XOD25 		- 8
PE
 Enquire
017 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
018 11F0021CP
Drain Plug - Oil Tank - M14 		$35.54 1
TO
019 23FA328CP
Washer - Crush - Aluminium - 14x18x1.35 		$6.93 1
TO
020 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$382.67 1
TO
021 12F0639CP
Breather - Oil Tank 		$2,173.24 1
TO
022 12FA016CP
O-RING ID30 X THK2.5 		$50.76 1
TO
