33 - ENGINE AIR SYSTEMS - 33.2 - CHARGE AIR COOLING SYSTEM of McLaren McLaren P1 Coupe

McLaren P1 Coupe - 33 - ENGINE AIR SYSTEMS - 33.2 - CHARGE AIR COOLING SYSTEM

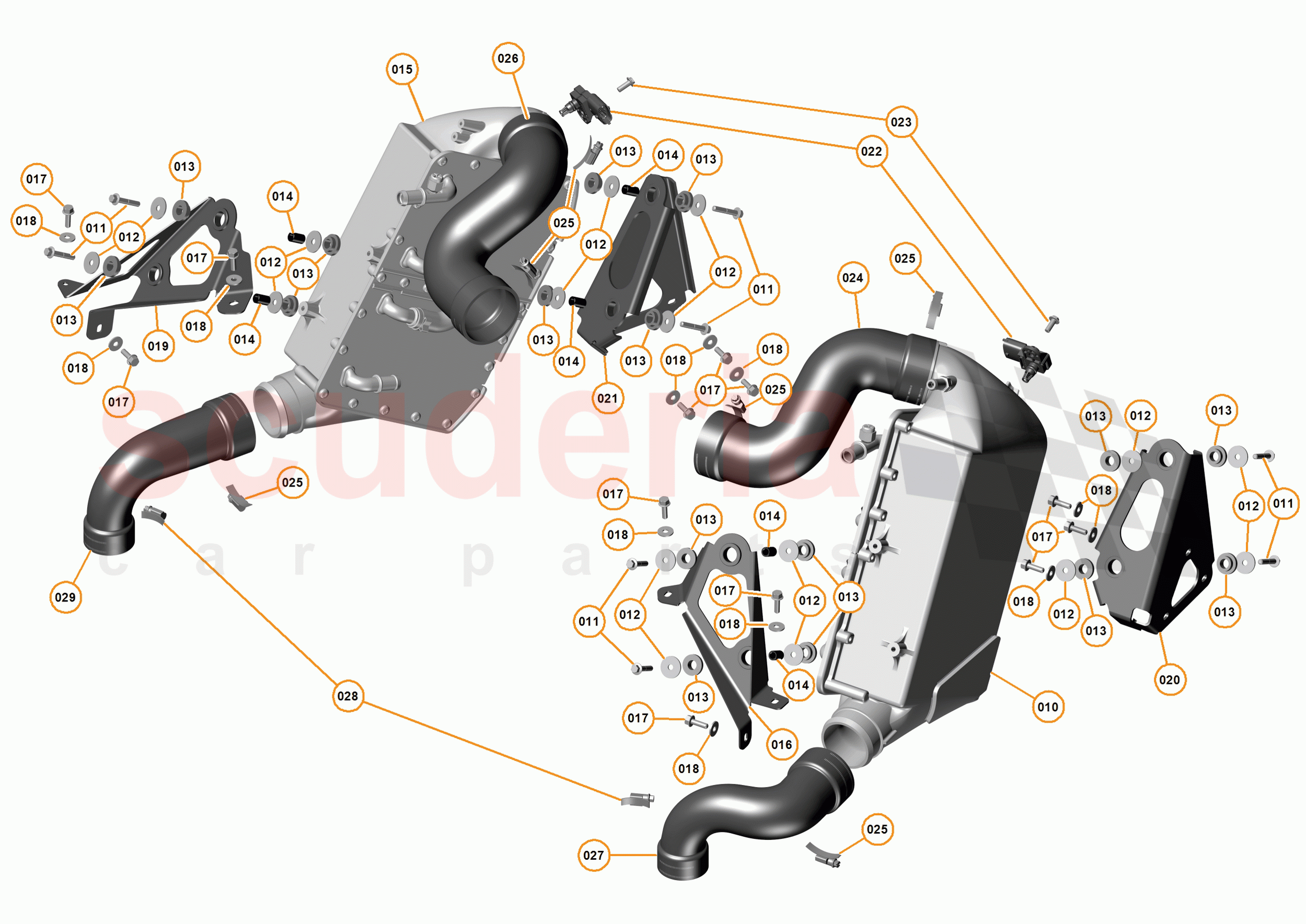

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12F0360CP	Water Charge Air Cooler - LH	$3,818.74	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA066	Bolt - M6x35 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0289CP	AV MOUNT-WCAC 24	$25.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0290CP	SPACER-WCAC 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0361CP	Water Charge Air Cooler - RH	$3,758.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0819CP	Bracket - Water Charge Air Cooler - Front - LH	$1,035.84	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0425CP	Bracket - Water Charge Air Cooler - Front - RH	$1,035.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0426CP	Bracket - Water Charge Air Cooler - Rear - LH	$1,035.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0427CP	Bracket - Water Charge Air Cooler - Rear - RH	$1,035.84	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA294	Screw - M6x16 - Taptite Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0053CP	Hose - Water Charge Air Cooler to - Throttle Body - LH	$507.76	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0054CP	Hose - Water Charge Air Cooler to - Throttle Body - RH	$507.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0509CP	Hose - Turbocharger to - Water Charge Air Cooler - LH	$446.82	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB049	HOSE CLAMP - 40-60MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0511CP	Hose - Turbocharger to - Water Charge Air Cooler - RH	$446.82	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	12F0360CP	Water Charge Air Cooler - LH	12F0360CP Water Charge Air Cooler - LH	$3,818.74	1	TO
011	00RA066	Bolt - M6x35 - Hex	00RA066 Bolt - M6x35 - Hex	-	8	PE	Enquire
012	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25	-	16	PE	Enquire
013	11F0289CP	AV MOUNT-WCAC 24	11F0289CP AV MOUNT-WCAC 24	$25.37	16	TO
014	11F0290CP	SPACER-WCAC 24	11F0290CP SPACER-WCAC 24	-	8	PE	Enquire
015	12F0361CP	Water Charge Air Cooler - RH	12F0361CP Water Charge Air Cooler - RH	$3,758.76	1	TO
016	12F0819CP	Bracket - Water Charge Air Cooler - Front - LH	12F0819CP Bracket - Water Charge Air Cooler - Front - LH	$1,035.84	1	TO
017	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	12	PE	Enquire
018	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	12	PE	Enquire
019	12F0425CP	Bracket - Water Charge Air Cooler - Front - RH	12F0425CP Bracket - Water Charge Air Cooler - Front - RH	$1,035.84	1	TO
020	12F0426CP	Bracket - Water Charge Air Cooler - Rear - LH	12F0426CP Bracket - Water Charge Air Cooler - Rear - LH	$1,035.84	1	TO
021	12F0427CP	Bracket - Water Charge Air Cooler - Rear - RH	12F0427CP Bracket - Water Charge Air Cooler - Rear - RH	$1,035.84	1	TO
022	11M0852CP	Sensor - Temperature - Manifold Absolute Pressure	11M0852CP Sensor - Temperature - Manifold Absolute Pressure	$223.40	2	TO
023	00RA294	Screw - M6x16 - Taptite Hex	00RA294 Screw - M6x16 - Taptite Hex	-	2	PE	Enquire
024	12G0053CP	Hose - Water Charge Air Cooler to - Throttle Body - LH	12G0053CP Hose - Water Charge Air Cooler to - Throttle Body - LH	$507.76	1	TO
025	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	00RB030 HOSE CLAMP - 60-80 - NORMA TORRO	-	6	PE	Enquire
026	12G0054CP	Hose - Water Charge Air Cooler to - Throttle Body - RH	12G0054CP Hose - Water Charge Air Cooler to - Throttle Body - RH	$507.76	1	TO
027	12F0509CP	Hose - Turbocharger to - Water Charge Air Cooler - LH	12F0509CP Hose - Turbocharger to - Water Charge Air Cooler - LH	$446.82	1	TO
028	00RB049	HOSE CLAMP - 40-60MM	00RB049 HOSE CLAMP - 40-60MM	-	2	PE	Enquire
029	12F0511CP	Hose - Turbocharger to - Water Charge Air Cooler - RH	12F0511CP Hose - Turbocharger to - Water Charge Air Cooler - RH	$446.82	1	TO
