32 - Engine - 32.9 - Electrical System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 32 - ENGINE - 32.9 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1019CP CONNCTR HOUSING-IG24COIL-ENGIN $60.42 To Order
11F1035CP Repair Flylead - Ignition Coil $75.52 To Order
Photo Part No Description Price (each) Stock
11F0385CP Ignition Coil - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0271CP Spark Plug - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F1894CP Sensor - Engine - Knock Enquire To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $13.14 To Order
Photo Part No Description Price (each) Stock
11F0817CP ENGINE-BRACKET HAR24SS SUPPORT $101.53 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0743CP Harness - Engine Link - Vee $422.96 To Order
Photo Part No Description Price (each) Stock
11F0744CP ENGINE LINK HARNESS INJECTORS $926.49 To Order
Photo Part No Description Price (each) Stock
11F0745CP Harness - Engine Link - Inlet Manifold $302.10 To Order
Photo Part No Description Price (each) Stock
12F0725CP SENSOR - ENGINE - CRANK POSITION $284.34 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
12F0830CP Bracket - Crankchaft Position Sensor $31.57 To Order
Photo Part No Description Price (each) Stock
12F0757CP CONNECTOR MOUNT - TYCO = 368260 $18.64 To Order
Photo Part No Description Price (each) Stock
12F0761CP BOLT - M8X8 $19.14 To Order
Photo Part No Description Price (each) Stock
00RL022 EDGE CLIP - 202X4.6MM - INLINE Enquire To Order
Photo Part No Description Price (each) Stock
12F0726CP SPACER - CRANK POSITION SENSOR $142.16 To Order

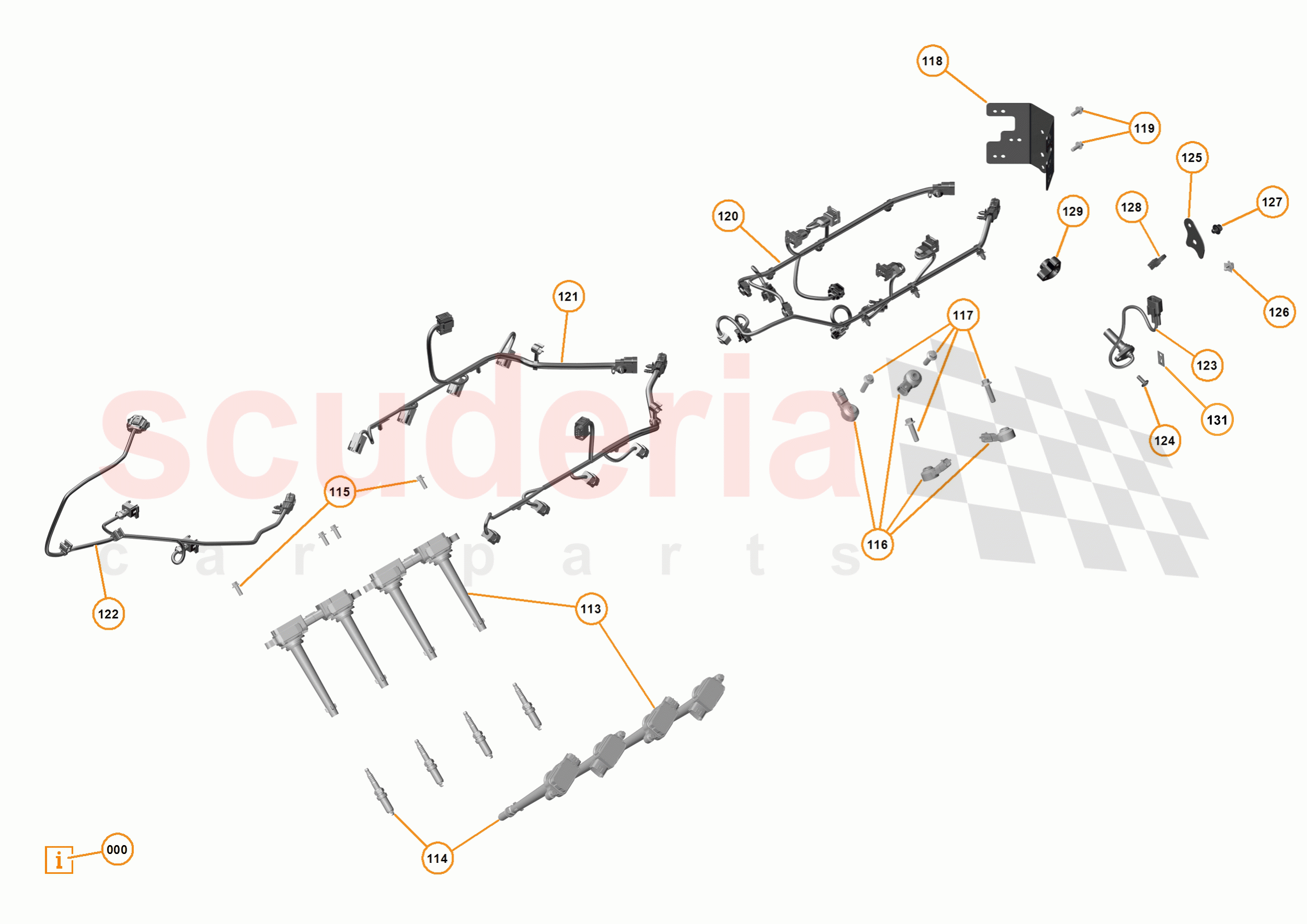

32 - ENGINE - 32.9 - ELECTRICAL SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1019CP
CONNCTR HOUSING-IG24COIL-ENGIN 		$60.42 1
TO
000 11F1035CP
Repair Flylead - Ignition Coil 		$75.52 1
TO
113 11F0385CP
Ignition Coil - Engine 		- 8
PE
 Enquire
114 11F0271CP
Spark Plug - Engine 		- 8
PE
 Enquire
115 11F1793CP
BOLT - M6X20 - HEX 		$11.14 8
TO
116 11F1894CP
Sensor - Engine - Knock 		- 4
PE
 Enquire
117 11F0809CP
Bolt - M8x30 - Engine - Thermostat 		$13.14 4
TO
118 11F0817CP
ENGINE-BRACKET HAR24SS SUPPORT 		$101.53 1
TO
119 11F0822CP
Bolt - M6x16 - Engine 		- 2
PE
 Enquire
120 11F0743CP
Harness - Engine Link - Vee 		$422.96 1
TO
121 11F0744CP
ENGINE LINK HARNESS INJECTORS 		$926.49 1
TO
122 11F0745CP
Harness - Engine Link - Inlet Manifold 		$302.10 1
TO
123 12F0725CP
SENSOR - ENGINE - CRANK POSITION 		$284.34 1
TO
124 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 1
PE
 Enquire
125 12F0830CP
Bracket - Crankchaft Position Sensor 		$31.57 1
TO
126 12F0757CP
CONNECTOR MOUNT - TYCO = 368260 		$18.64 1
TO
127 12F0761CP
BOLT - M8X8 		$19.14 1
TO
128 00RL022
EDGE CLIP - 202X4.6MM - INLINE 		- 1
PE
 Enquire
129 12F0726CP
SPACER - CRANK POSITION SENSOR 		$142.16 1
TO
131 00RL014
TIE WRAP BLOCK - 25*13 - TC105A 		- 1
PE
 Enquire
