32 - Engine - 32.7 - Vacuum Assembly

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 32 - ENGINE - 32.7 - VACUUM ASSEMBLY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1215CP Vacuum Pipe Kit - Check Valve to Vacuum Tank $76.15 To Order
11F1087CP Clip - Vacuum Assy - Engine - Raymond - 017548 $12.17 To Order
11F1086CP Clip - Vacuum Assy - Engine - Raymond - 081289 $25.37 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12F0502CP Main Vacuum Assy - Engine $3,574.69 To Order
Photo Part No Description Price (each) Stock
11F0958CP Bolt - Bracket - Vacuum Lines - Engine $25.37 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order

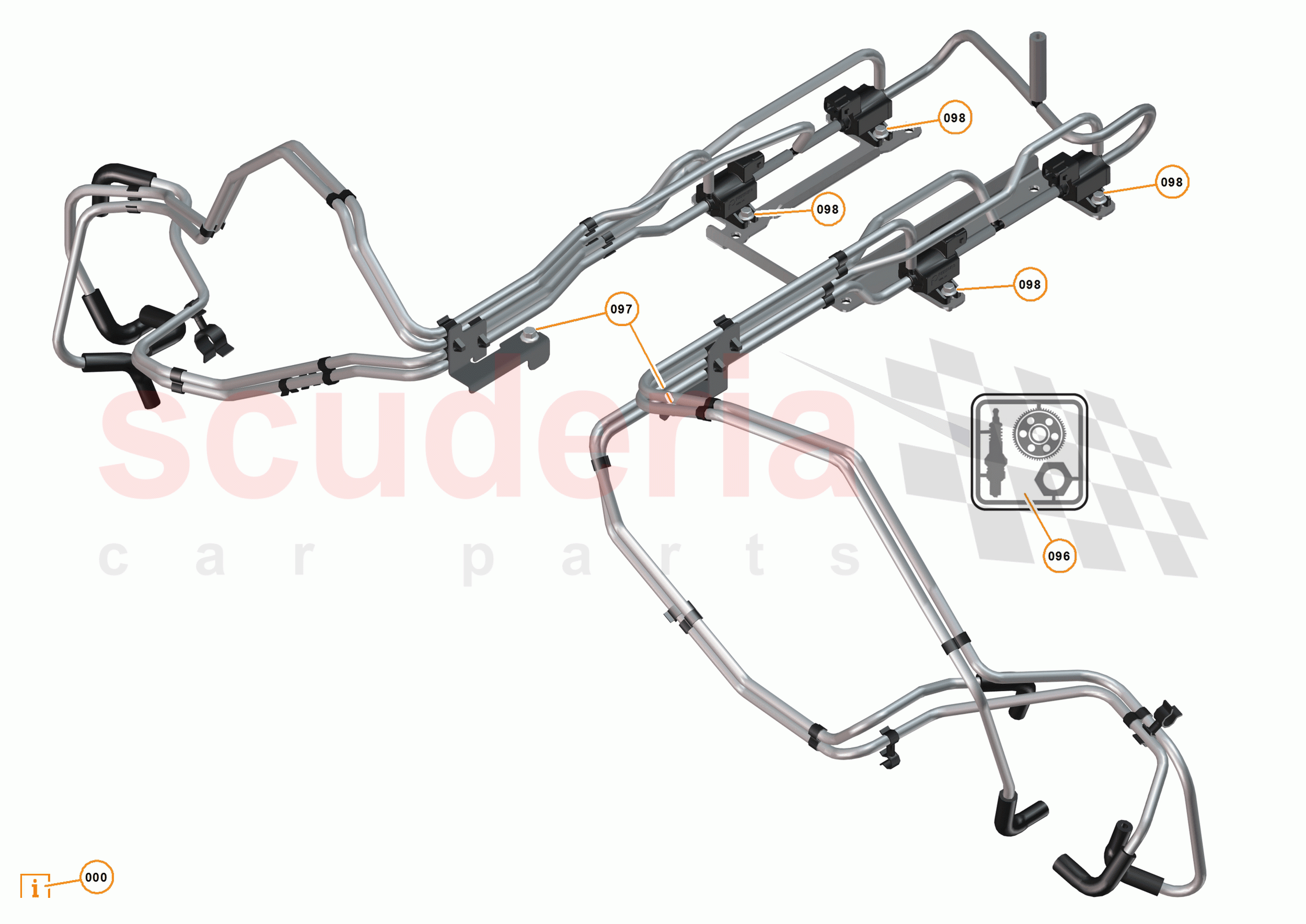

32 - ENGINE - 32.7 - VACUUM ASSEMBLY of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1215CP
Vacuum Pipe Kit - Check Valve to Vacuum Tank 		$76.15 1
TO
000 11F1087CP
Clip - Vacuum Assy - Engine - Raymond - 017548 		$12.17 1
TO
000 11F1086CP
Clip - Vacuum Assy - Engine - Raymond - 081289 		$25.37 1
TO
000 11F1085CP
Clip - Vacuum Assy - Engine - Raymond - 081077 		$25.37 1
TO
000 11F1084CP
Clip - Vacuum Assy - Engine - Raymond - 060696 		$17.25 1
TO
000 11F1083CP
Clip - Vacuum Assy - Engine - Raymond - 012440 		$8.31 1
TO
096 12F0502CP
Main Vacuum Assy - Engine 		$3,574.69 1
TO
097 11F0958CP
Bolt - Bracket - Vacuum Lines - Engine 		$25.37 2
TO
098 11F0822CP
Bolt - M6x16 - Engine 		- 4
PE
 Enquire
