32 - Engine - 32.4 - Exhaust Manifold And Turbochargers

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 32 - ENGINE - 32.4 - EXHAUST MANIFOLD AND TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0993CP Elbow Kit - Turbo - Dump Valve $139.38 To Order
12F0785CP Wastegate Assembly - Turbocharger - Engine $1,137.39 To Order
11F1023CP Clip Set - Heatshield - Turbocharger & Manifold $19.27 To Order
Photo Part No Description Price (each) Stock
12F0787CP Turbocharger Assy - Engine - LH $22,932.53 To Order
Photo Part No Description Price (each) Stock
12F0786CP Turbocharger Assy - Engine - RH $22,752.58 To Order
Photo Part No Description Price (each) Stock
11F0733CP Exhaust Manifold - Engine $3,338.90 To Order
Photo Part No Description Price (each) Stock
13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE $96.45 To Order
Photo Part No Description Price (each) Stock
11F0689CP Stud - Exhaust Manifold $16.06 To Order
Photo Part No Description Price (each) Stock
11F0813CP Nut Set - Engine - Exhaust Manifold $45.68 To Order
Photo Part No Description Price (each) Stock
11F0687CP Gasket - Turbocharger to Manifold - inc Nuts $132.00 To Order
Photo Part No Description Price (each) Stock
12F0499CP HEATSHIELD - ENGINE - TURBOCHARGER SMALL $404.57 To Order
Photo Part No Description Price (each) Stock
12F0774CP HEAT SHIELD - EXHAUST MANIFOLD - LOWER - LH $777.77 To Order
Photo Part No Description Price (each) Stock
12F0775CP Heat Shield - Exhaust Manifold - Lower - RH $777.77 To Order
Photo Part No Description Price (each) Stock
12F0776CP Heat Shield - Exhaust Manifold - Upper - RH $812.40 To Order
Photo Part No Description Price (each) Stock
12F0777CP Heat Shield - Exhaust Manifold - Upper - LH $777.77 To Order
Photo Part No Description Price (each) Stock
11F0815CP Bolt Set - Engine - Exhaust Turbocharger - Heatshield $35.54 To Order
Photo Part No Description Price (each) Stock
11F0811CP ENGINE-HEAD HEATSHIELD-LH $132.00 To Order
Photo Part No Description Price (each) Stock
11F0812CP Heatshield - Head - Engine - RH $132.00 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order

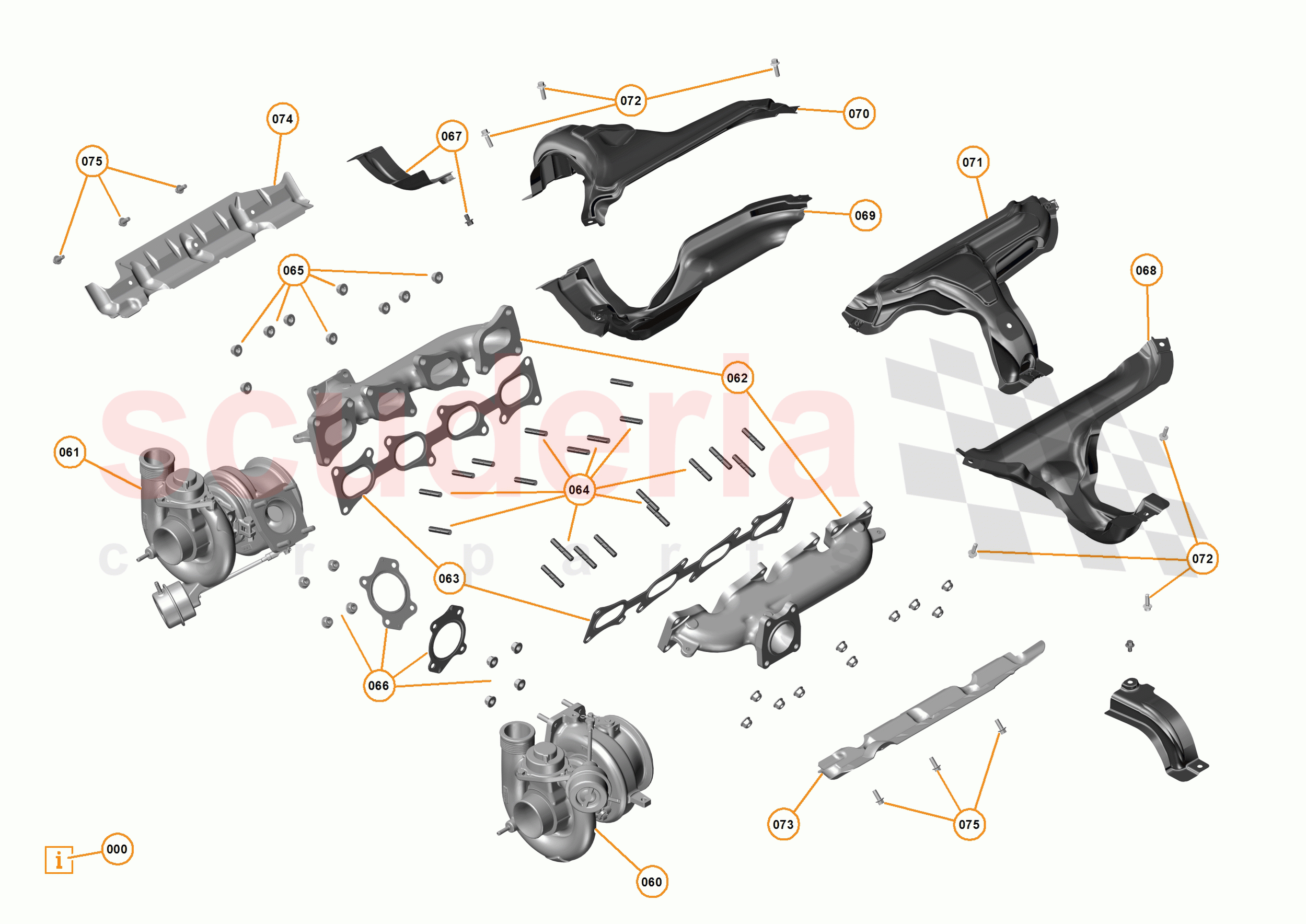

32 - ENGINE - 32.4 - EXHAUST MANIFOLD AND TURBOCHARGERS of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 12F0993CP
Elbow Kit - Turbo - Dump Valve 		$139.38 1
TO
000 12F0785CP
Wastegate Assembly - Turbocharger - Engine 		$1,137.39 2
TO
000 11F1023CP
Clip Set - Heatshield - Turbocharger & Manifold 		$19.27 1
TO
060 12F0787CP
Turbocharger Assy - Engine - LH 		$22,932.53 1
TO
061 12F0786CP
Turbocharger Assy - Engine - RH 		$22,752.58 1
TO
062 11F0733CP
Exhaust Manifold - Engine 		$3,338.90 2
TO
063 13F0599CP
GASKET - EXHAUST MANIFOLD - ENGINE 		$96.45 2
TO
064 11F0689CP
Stud - Exhaust Manifold 		$16.06 20
TO
065 11F0813CP
Nut Set - Engine - Exhaust Manifold 		$45.68 2
TO
066 11F0687CP
Gasket - Turbocharger to Manifold - inc Nuts 		$132.00 2
TO
067 12F0499CP
HEATSHIELD - ENGINE - TURBOCHARGER SMALL 		$404.57 2
TO
068 12F0774CP
HEAT SHIELD - EXHAUST MANIFOLD - LOWER - LH 		$777.77 1
TO
069 12F0775CP
Heat Shield - Exhaust Manifold - Lower - RH 		$777.77 1
TO
070 12F0776CP
Heat Shield - Exhaust Manifold - Upper - RH 		$812.40 1
TO
071 12F0777CP
Heat Shield - Exhaust Manifold - Upper - LH 		$777.77 1
TO
072 11F0815CP
Bolt Set - Engine - Exhaust Turbocharger - Heatshield 		$35.54 2
TO
073 11F0811CP
ENGINE-HEAD HEATSHIELD-LH 		$132.00 1
TO
074 11F0812CP
Heatshield - Head - Engine - RH 		$132.00 1
TO
075 11F0822CP
Bolt - M6x16 - Engine 		- 6
PE
 Enquire
