32 - Engine - 32.13 - Assy-Venturi Purge Hose

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 32 - ENGINE - 32.13 - ASSY-VENTURI PURGE HOSE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0397CP Venturi Purge Hose - Fuel $1,848.27 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order

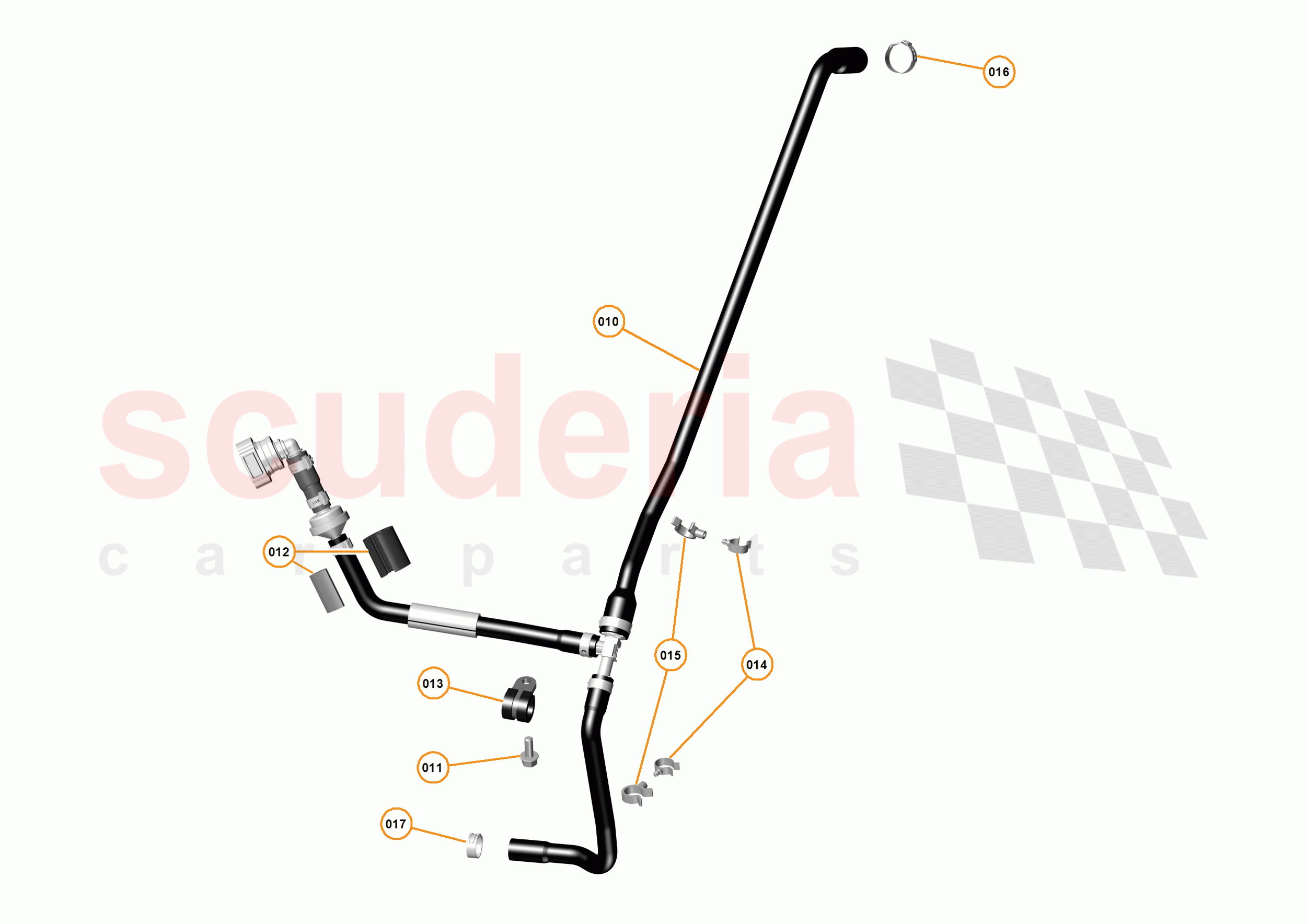

32 - ENGINE - 32.13 - ASSY-VENTURI PURGE HOSE of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12F0397CP
Venturi Purge Hose - Fuel 		$1,848.27 1
TO
011 00RA061
Screw - M6x16 - Flange Hex 		- 1
PE
 Enquire
012 00RA357
PIPE PROTECTOR 		- 1
PE
 Enquire
013 00RB005
P CLIP - DIA 16 		- 1
PE
 Enquire
014 00RB018
CLIP - 11-13MM - MALE 		- 2
PE
 Enquire
015 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
016 00RB094
OETIKER CLIP - 21.0 		- 1
PE
 Enquire
017 00RB096
STEPLESS EAR CLAMP - 16.2-706R 		- 1
PE
 Enquire
