49 - Interior Systems - 49.8 - Lower & Rear Trim

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 49 - INTERIOR SYSTEMS - 49.8 - LOWER & REAR TRIM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RM006 ANIXTER RIVET - WHITE Enquire To Order
12N1282CP ADHESIVE TAPE - 3M-PT1100 $345.26 To Order
11N2385CP Clip - Raymond - 1.5-2.0 - 018545 $6.87 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12N1257CP Cover - Hybrid Disconnect $548.37 To Order
Photo Part No Description Price (each) Stock
12N1258CP Seal - Hybrid Disconnect $151.05 To Order
Photo Part No Description Price (each) Stock
12N0172CP Stowage Net $345.26 To Order
Photo Part No Description Price (each) Stock
00RA487 Screw - Hex - Countersunk - M4x20 Enquire To Order
Photo Part No Description Price (each) Stock
12NA012CP SPACER CL601 - COMPRESSION LIMITER - M4X5 ALUMINIUM HEAD $9.33 To Order
Photo Part No Description Price (each) Stock
00RG014 Hook - Stowage Net - Plastic Enquire To Order
Photo Part No Description Price (each) Stock
12N0822CP Bracket - Cargo Net - RH $324.96 To Order
Photo Part No Description Price (each) Stock
12N0823CP Bracket - Cargo Net - LH $324.96 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA098 Screw - M5x16 - Button Enquire To Order
Photo Part No Description Price (each) Stock
00RC086 Washer - Flat - O/D 9.53 - I/D 5.33 Enquire To Order
Photo Part No Description Price (each) Stock
12N0780CP Grille - Speaker - Assembly - LH $771.79 To Order
Photo Part No Description Price (each) Stock
12N0781CP Grille - Speaker - Assembly - RH $771.79 To Order
Photo Part No Description Price (each) Stock
12N1252CP Carpet Tub - Driver - Federal Enquire To Order
12N1250CP Carpet - Tub - Driver $2,739.24 To Order
Photo Part No Description Price (each) Stock
12N1251CP Carpet - Tub - Passenger $2,739.24 To Order
Photo Part No Description Price (each) Stock
12N0604CP Carpet Tub Console - Driver $1,007.06 To Order
Photo Part No Description Price (each) Stock
12N0605CP Carpet Tub Console - Passenger $1,007.06 To Order
Photo Part No Description Price (each) Stock
12N0615CP Assy HVAC Shroud - LH $1,198.32 To Order
Photo Part No Description Price (each) Stock
12N0618CP Assy HVAC Shroud - RH $1,198.32 To Order
Photo Part No Description Price (each) Stock
12N1254CP Carpet - Fuel Cell - Bulkhead - Highline - US Enquire To Order
12N1253CP Carpet - Fuel Cell - Bulkhead - US Enquire To Order
12N0777CP Carpet - Bulkhead - High Line $2,720.71 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12N0940CP Foam Block - Seat - Lower - LH $172.62 To Order
Photo Part No Description Price (each) Stock
12N0941CP Foam Block - Seat - Lower - RH $172.62 To Order
Photo Part No Description Price (each) Stock
12N0875CP PROTECTIVE TAPE - FOOTWELL - DRIVER $243.70 To Order
Photo Part No Description Price (each) Stock
11N1491CP Footrest - US - Driver Enquire To Order
11N0975CP FOOTREST - LHD - DRIVER Enquire To Order
11N0643CP FOOTREST - FOAM - LHD - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
11N1412CP BRKT FOOTREST SUPPORT DRIVER $182.79 To Order
Photo Part No Description Price (each) Stock
11N1490CP FOOTREST - ADAPTOR - US - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
12N1231CP Footrest - Passenger - Fire Extinguisher $609.32 To Order
12N1205CP Footrest - Passenger $609.32 To Order
11N0977CP Footrest - US - Passenger Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12N0607CP Assy - Passenger Footrest Support $751.49 To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA518 SCREW - LOW CAP HEAD - HEX SOCKET - M4X16 Enquire To Order

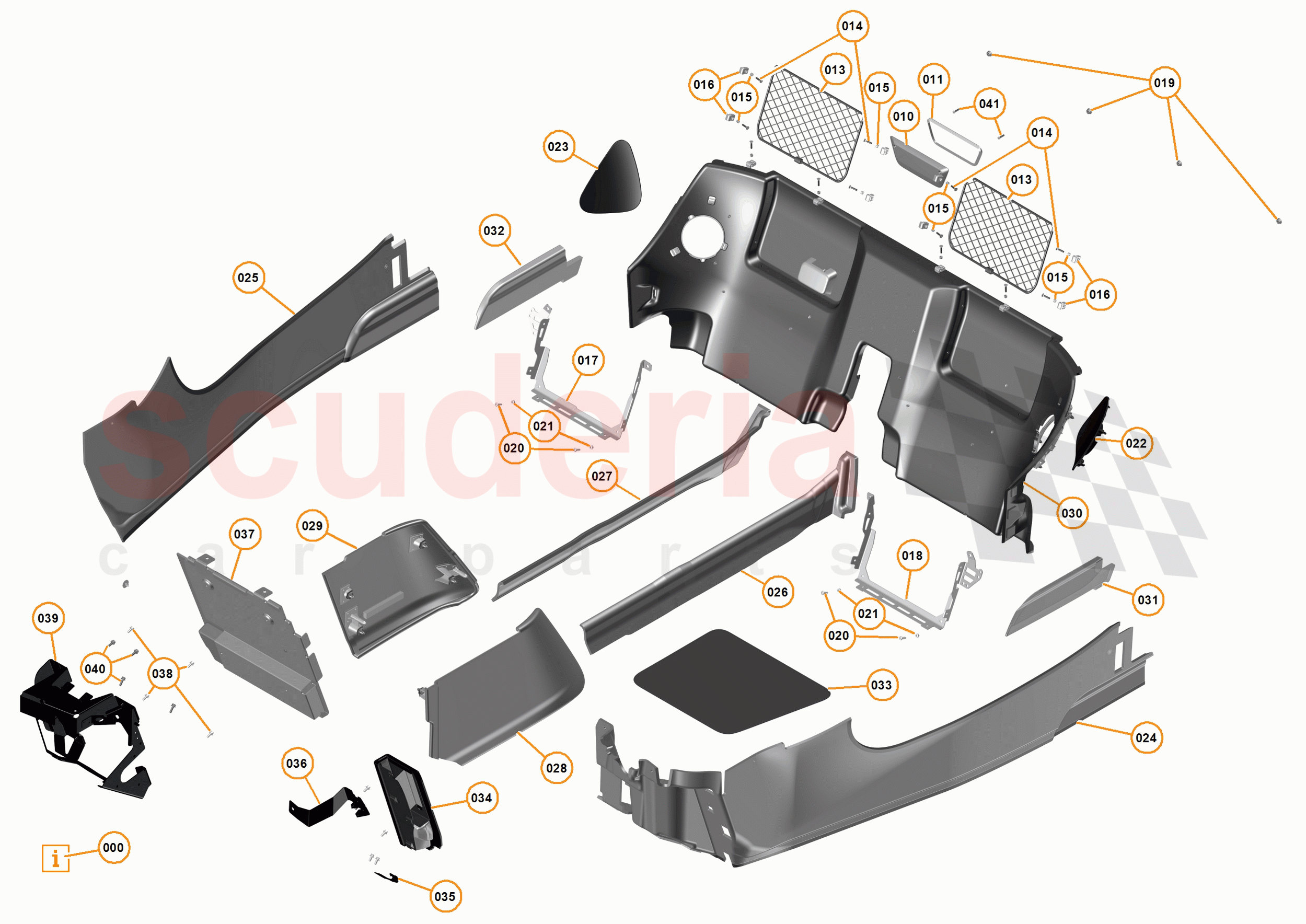

49 - INTERIOR SYSTEMS - 49.8 - LOWER & REAR TRIM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RM006
ANIXTER RIVET - WHITE 		- 2
PE
 Enquire
000 12N1282CP
ADHESIVE TAPE - 3M-PT1100 		$345.26 1
TO
000 11N2385CP
Clip - Raymond - 1.5-2.0 - 018545 		$6.87 6
TO
000 12N1200CP
Dedication Plaque 		$853.04 1
TO
000 11N2355CP
Clip - Lantern - Raymond 018526 		$6.06 9
TO
010 12N1257CP
Cover - Hybrid Disconnect 		$548.37 1
TO
011 12N1258CP
Seal - Hybrid Disconnect 		$151.05 1
TO
013 12N0172CP
Stowage Net 		$345.26 2
TO
014 00RA487
Screw - Hex - Countersunk - M4x20 		- 12
PE
 Enquire
015 12NA012CP
SPACER CL601 - COMPRESSION LIMITER - M4X5 ALUMINIUM HEAD 		$9.33 12
TO
016 00RG014
Hook - Stowage Net - Plastic 		- 12
PE
 Enquire
017 12N0822CP
Bracket - Cargo Net - RH 		$324.96 1
TO
018 12N0823CP
Bracket - Cargo Net - LH 		$324.96 1
TO
019 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 4
PE
 Enquire
020 00RA098
Screw - M5x16 - Button 		- 4
PE
 Enquire
021 00RC086
Washer - Flat - O/D 9.53 - I/D 5.33 		- 4
PE
 Enquire
022 12N0780CP
Grille - Speaker - Assembly - LH 		$771.79 1
TO
023 12N0781CP
Grille - Speaker - Assembly - RH 		$771.79 1
TO
024 12N1252CP
Carpet Tub - Driver - Federal 		- 1
PE
 Enquire
024 12N1250CP
Carpet - Tub - Driver 		$2,739.24 1
TO
025 12N1251CP
Carpet - Tub - Passenger 		$2,739.24 1
TO
026 12N0604CP
Carpet Tub Console - Driver 		$1,007.06 1
TO
027 12N0605CP
Carpet Tub Console - Passenger 		$1,007.06 1
TO
028 12N0615CP
Assy HVAC Shroud - LH 		$1,198.32 1
TO
029 12N0618CP
Assy HVAC Shroud - RH 		$1,198.32 1
TO
030 12N1254CP
Carpet - Fuel Cell - Bulkhead - Highline - US 		- 1
PE
 Enquire
030 12N1253CP
Carpet - Fuel Cell - Bulkhead - US 		- 1
PE
 Enquire
030 12N0777CP
Carpet - Bulkhead - High Line 		$2,720.71 1
TO
030 12N0770CP
Carpet - Fuel Cell - Bulkhead - Assembly 		$2,899.04 1
TO
031 12N0940CP
Foam Block - Seat - Lower - LH 		$172.62 1
TO
032 12N0941CP
Foam Block - Seat - Lower - RH 		$172.62 1
TO
033 12N0875CP
PROTECTIVE TAPE - FOOTWELL - DRIVER 		$243.70 1
TO
034 11N1491CP
Footrest - US - Driver 		- 1
PE
 Enquire
034 11N0975CP
FOOTREST - LHD - DRIVER 		- 1
PE
 Enquire
034 11N0643CP
FOOTREST - FOAM - LHD - DRIVER 		- 1
PE
 Enquire
035 11N1412CP
BRKT FOOTREST SUPPORT DRIVER 		$182.79 1
TO
036 11N1490CP
FOOTREST - ADAPTOR - US - DRIVER 		- 1
PE
 Enquire
037 12N1231CP
Footrest - Passenger - Fire Extinguisher 		$609.32 1
TO
037 12N1205CP
Footrest - Passenger 		$609.32 1
TO
037 11N0977CP
Footrest - US - Passenger 		- 1
PE
 Enquire
038 00RA064
BOLT - M5X12 - HEX 		- 8
PE
 Enquire
039 12N0607CP
Assy - Passenger Footrest Support 		$751.49 1
TO
040 00RA063
Screw - M5x16 - Hex 		- 4
PE
 Enquire
041 00RA518
SCREW - LOW CAP HEAD - HEX SOCKET - M4X16 		- 2
PE
 Enquire
