48 - Infotainment - 48.3 - Antenna System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 48 - INFOTAINMENT - 48.3 - ANTENNA SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS $191.32 To Order
Photo Part No Description Price (each) Stock
12M0555CP CONNECTOR HOLDER - SINGLE $14.21 To Order
Photo Part No Description Price (each) Stock
11M1076CP ANTENNA - SATELLITE TRACKING - GSM $120.83 To Order
Photo Part No Description Price (each) Stock
11M0776CP ANTENNA - SATELLITE TRACKING - RF $140.97 To Order
Photo Part No Description Price (each) Stock
11M1928CP Cable Extension - Antenna - Satellite Tracking - RF - RHD $182.79 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0438CP Antenna - GPS - Navigation $221.54 To Order
Photo Part No Description Price (each) Stock
12M0412CP Ground Plane - GPS Antenna $71.07 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
11M0506CP Antenna - Wireless LAN $191.32 To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11M0454CP ANTENNA - AM/FM AMPLIFIER $191.32 To Order
Photo Part No Description Price (each) Stock
12M0638CP Ground Plane - AM-FM Antenna - A Pillar - RH $221.54 To Order
Photo Part No Description Price (each) Stock
00RA142 SCREW - M6X8 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
12M0630CP Header - Ground Plane - AM-FM Antenna $221.54 To Order
Photo Part No Description Price (each) Stock
00RA116 SCREW - M6X10 - BUTTON - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
12M0634CP Ground Plane - AM-FM Amplifier - Centre $71.07 To Order
Photo Part No Description Price (each) Stock
12M0632CP Bracket - AM-FM Amplifier - Centre $345.26 To Order
Photo Part No Description Price (each) Stock
12M0649CP Bracket - AM-FM Eylet - A Pillar - Upper - RH $182.79 To Order
Photo Part No Description Price (each) Stock
12M0654CP Link Lead - AM/FM Amplifier - Antenna - A Pillar - RH $443.10 To Order
Photo Part No Description Price (each) Stock
12M0643CP Bracket - AM-FM Amplifier - A Pillar - RH $243.70 To Order

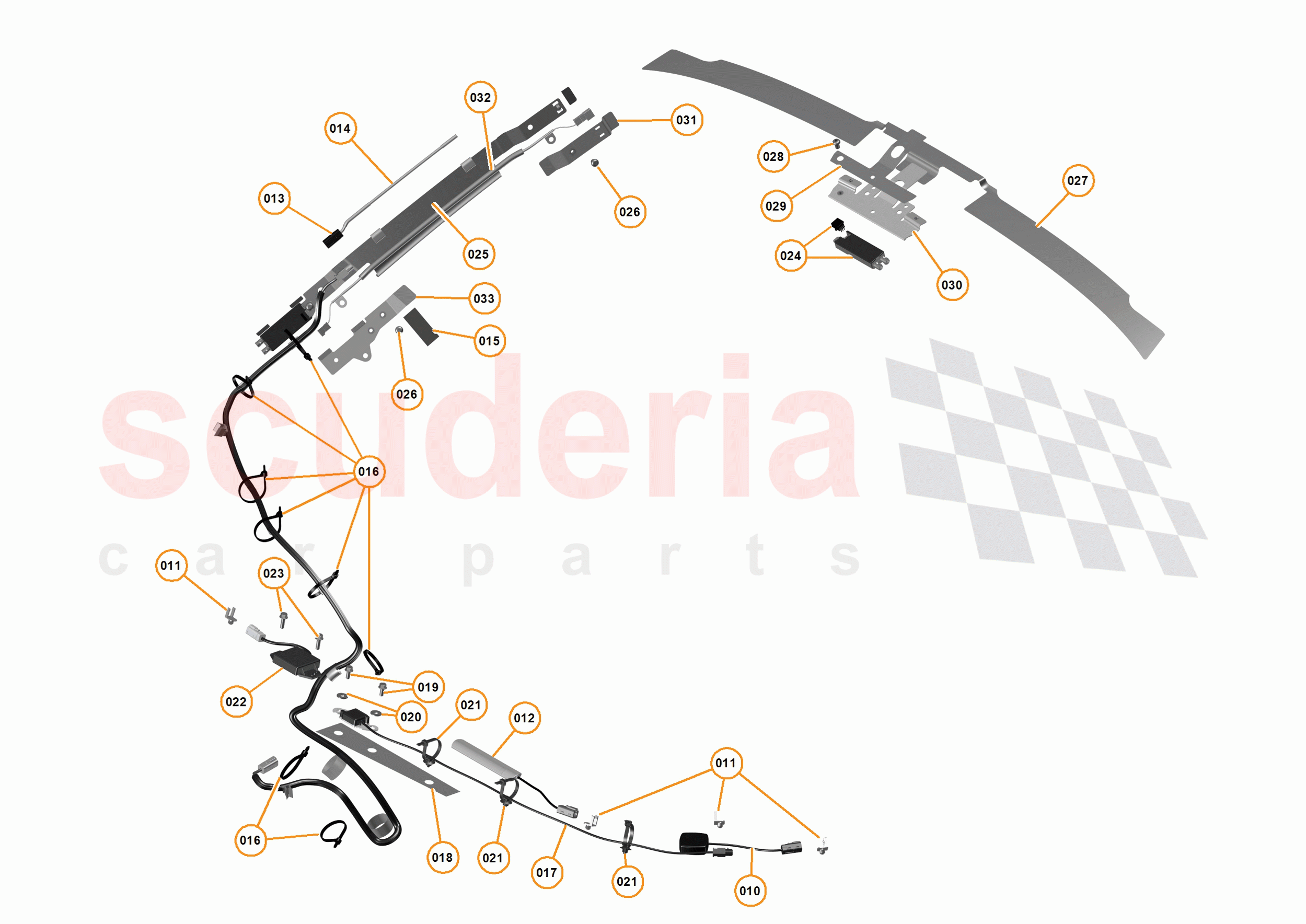

48 - INFOTAINMENT - 48.3 - ANTENNA SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M0066CP
ANTENNA - SATELLITE TRACKING - VDL - GPS 		$191.32 1
TO
011 12M0555CP
CONNECTOR HOLDER - SINGLE 		$14.21 4
TO
012 11M1076CP
ANTENNA - SATELLITE TRACKING - GSM 		$120.83 1
TO
013 11M0776CP
ANTENNA - SATELLITE TRACKING - RF 		$140.97 1
TO
014 11M1928CP
Cable Extension - Antenna - Satellite Tracking - RF - RHD 		$182.79 1
TO
015 00RL004
FELT TAPE
Felt Tape; 		- 1
PE
 Enquire
016 00RL012
CABLE TIE - 300X4.6MM 		- 8
PE
 Enquire
017 11M0438CP
Antenna - GPS - Navigation 		$221.54 1
TO
018 12M0412CP
Ground Plane - GPS Antenna 		$71.07 1
TO
019 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
020 00RC017
WASHER - M5X15X1.2 		- 2
PE
 Enquire
021 00RL001
CABLE TIE - FIRTREE BASE 		- 3
PE
 Enquire
022 11M0506CP
Antenna - Wireless LAN 		$191.32 1
TO
023 00RA063
Screw - M5x16 - Hex 		- 2
PE
 Enquire
024 11M0454CP
ANTENNA - AM/FM AMPLIFIER 		$191.32 2
TO
025 12M0638CP
Ground Plane - AM-FM Antenna - A Pillar - RH 		$221.54 1
TO
026 00RA142
SCREW - M6X8 - BUTTON 		- 3
PE
 Enquire
027 12M0630CP
Header - Ground Plane - AM-FM Antenna 		$221.54 1
TO
028 00RA116
SCREW - M6X10 - BUTTON - 8.8 		- 1
PE
 Enquire
029 12M0634CP
Ground Plane - AM-FM Amplifier - Centre 		$71.07 1
TO
030 12M0632CP
Bracket - AM-FM Amplifier - Centre 		$345.26 1
TO
031 12M0649CP
Bracket - AM-FM Eylet - A Pillar - Upper - RH 		$182.79 1
TO
032 12M0654CP
Link Lead - AM/FM Amplifier - Antenna - A Pillar - RH 		$443.10 1
TO
033 12M0643CP
Bracket - AM-FM Amplifier - A Pillar - RH 		$243.70 1
TO
