45 - Wiring Harness - 45.3 - Non-Body Wiring Harness

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 45 - WIRING HARNESS - 45.3 - NON-BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RL014 TIE WRAP BLOCK - 25*13 - TC105A Enquire To Order
00RC051 WASHER - M6X4.0MM Enquire To Order
14M1230CP TAPE - DUPLOCOLL - 17X30 $4.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12M0628CP Harness - Link - Dynamic Panel $463.23 To Order
Photo Part No Description Price (each) Stock
12M0668CP Wiring Harness - Audio $3,001.07 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
12M0854CP Wiring Harness - Centre Console $2,356.56 To Order
Photo Part No Description Price (each) Stock
12M0855CP Wiring Harness - Roof $1,832.86 To Order
Photo Part No Description Price (each) Stock
12M0856CP Wiring Harness - Front Bumper $1,099.62 To Order
Photo Part No Description Price (each) Stock
12M0922CP Wiring Harness - Rear Bumper - Lower $725.08 To Order
12M0921CP Wiring Harness - Rear Bumper $1,651.59 To Order
Photo Part No Description Price (each) Stock
12M0850CP Wiring Harness - Door card - Drivers Side - LHD $1,289.04 To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
Photo Part No Description Price (each) Stock
12M0851CP Wiring Harness - Door card - Passengers Side - LHD $382.67 To Order
Photo Part No Description Price (each) Stock
12M0923CP Wiring Harness - Drivers Door - LHD $4,651.16 To Order
Photo Part No Description Price (each) Stock
12M0559CP Bracket - Grommet Retention - LH $284.34 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
12M0924CP Wiring Harness - Passengers Door - LHD $3,412.22 To Order
Photo Part No Description Price (each) Stock
12M0560CP Bracket - Grommet Retention - RH $284.34 To Order
Photo Part No Description Price (each) Stock
12M0919CP Wiring Harness - Front Clam - ROW $4,169.29 To Order
12M0918CP Wiring Harness - Front Clam - Federal Enquire To Order
Photo Part No Description Price (each) Stock
12M0857CP Wiring Harness - Service Tray $523.66 To Order
Photo Part No Description Price (each) Stock
00RA179 SCREW - M6X10-10.9 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
12M0773CP HARNESS - HIGH VOLTAGE INTERLOCK LOOP $75.52 To Order
Photo Part No Description Price (each) Stock
12M0289CP Harness - Fuel Cell $709.01 To Order
Photo Part No Description Price (each) Stock
12M0794CP Wiring Harness - Dual Clutch Transmission - External $6,243.87 To Order
Photo Part No Description Price (each) Stock
12M0853CP Harness - Link - Hybrid Coolant Pump $624.38 To Order
Photo Part No Description Price (each) Stock
12M0795CP Wiring Harness - Engine $4,836.82 To Order

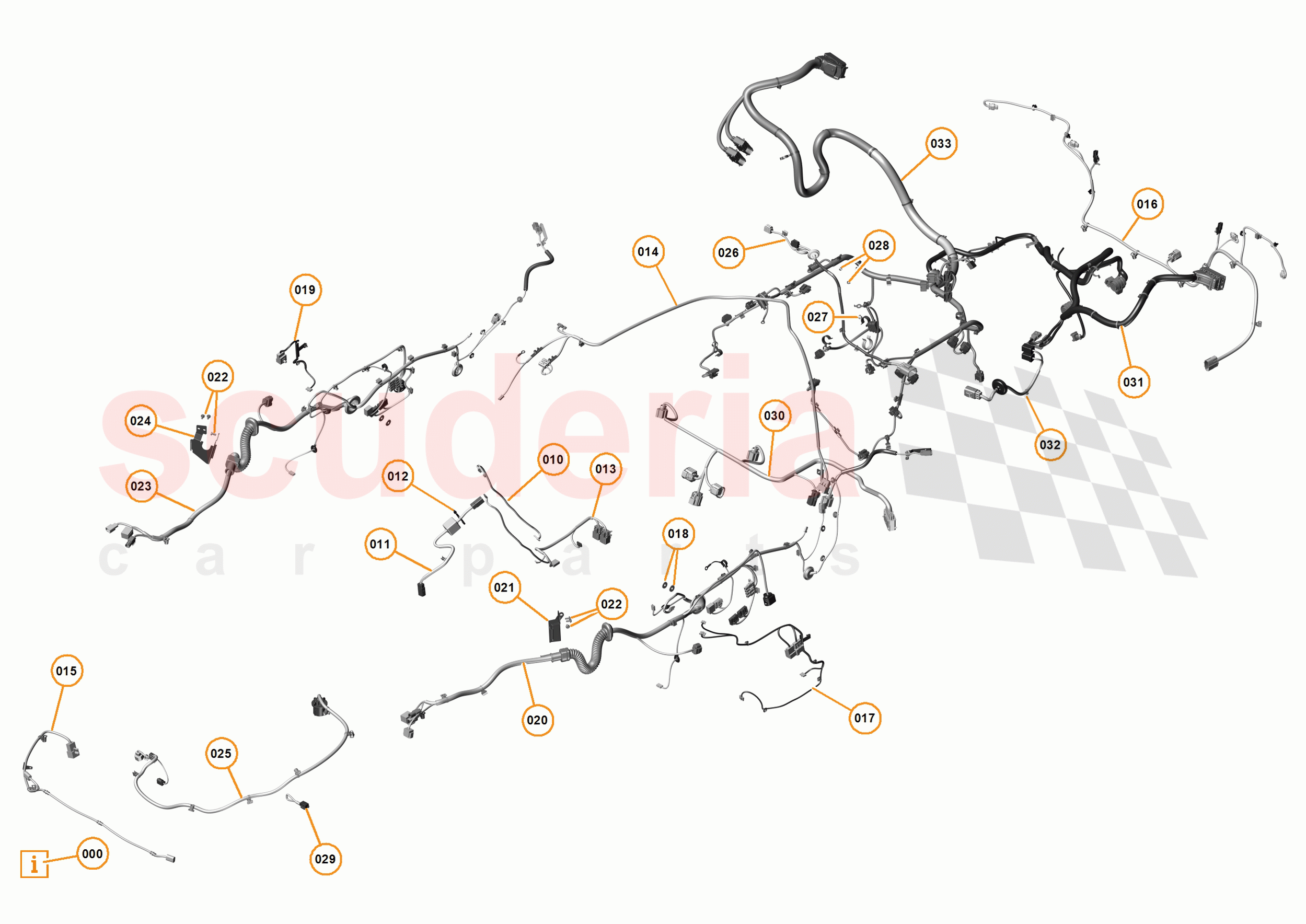

45 - WIRING HARNESS - 45.3 - NON-BODY WIRING HARNESS of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL014
TIE WRAP BLOCK - 25*13 - TC105A 		- 1
PE
 Enquire
000 00RC051
WASHER - M6X4.0MM 		- 4
PE
 Enquire
000 14M1230CP
TAPE - DUPLOCOLL - 17X30 		$4.04 6
TO
000 00RL004
FELT TAPE
Felt Tape; 		- 3
PE
 Enquire
010 12M0628CP
Harness - Link - Dynamic Panel 		$463.23 1
TO
011 12M0668CP
Wiring Harness - Audio 		$3,001.07 1
TO
012 00RL012
CABLE TIE - 300X4.6MM 		- 1
PE
 Enquire
013 12M0854CP
Wiring Harness - Centre Console 		$2,356.56 1
TO
014 12M0855CP
Wiring Harness - Roof 		$1,832.86 1
TO
015 12M0856CP
Wiring Harness - Front Bumper 		$1,099.62 1
TO
016 12M0922CP
Wiring Harness - Rear Bumper - Lower 		$725.08 1
TO
016 12M0921CP
Wiring Harness - Rear Bumper 		$1,651.59 1
TO
017 12M0850CP
Wiring Harness - Door card - Drivers Side - LHD 		$1,289.04 1
TO
018 00RC053
WASHER - M6X2.0MM 		- 4
PE
 Enquire
019 12M0851CP
Wiring Harness - Door card - Passengers Side - LHD 		$382.67 1
TO
020 12M0923CP
Wiring Harness - Drivers Door - LHD 		$4,651.16 1
TO
021 12M0559CP
Bracket - Grommet Retention - LH 		$284.34 1
TO
022 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 6
PE
 Enquire
023 12M0924CP
Wiring Harness - Passengers Door - LHD 		$3,412.22 1
TO
024 12M0560CP
Bracket - Grommet Retention - RH 		$284.34 1
TO
025 12M0919CP
Wiring Harness - Front Clam - ROW 		$4,169.29 1
TO
025 12M0918CP
Wiring Harness - Front Clam - Federal 		- 1
PE
 Enquire
026 12M0857CP
Wiring Harness - Service Tray 		$523.66 1
TO
027 00RA179
SCREW - M6X10-10.9 - BUTTON 		- 1
PE
 Enquire
028 00RL015
CABLE TIE - SF100 - 18X - 110MM 		- 2
PE
 Enquire
029 12M0773CP
HARNESS - HIGH VOLTAGE INTERLOCK LOOP 		$75.52 1
TO
030 12M0289CP
Harness - Fuel Cell 		$709.01 1
TO
031 12M0794CP
Wiring Harness - Dual Clutch Transmission - External 		$6,243.87 1
TO
032 12M0853CP
Harness - Link - Hybrid Coolant Pump 		$624.38 1
TO
033 12M0795CP
Wiring Harness - Engine 		$4,836.82 1
TO
