30 - COOLING - HYBRID - 30.1 - HYBRID COOLING CIRCUIT & PIPES of McLaren McLaren P1 Coupe

McLaren P1 Coupe - 30 - COOLING - HYBRID - 30.1 - HYBRID COOLING CIRCUIT & PIPES

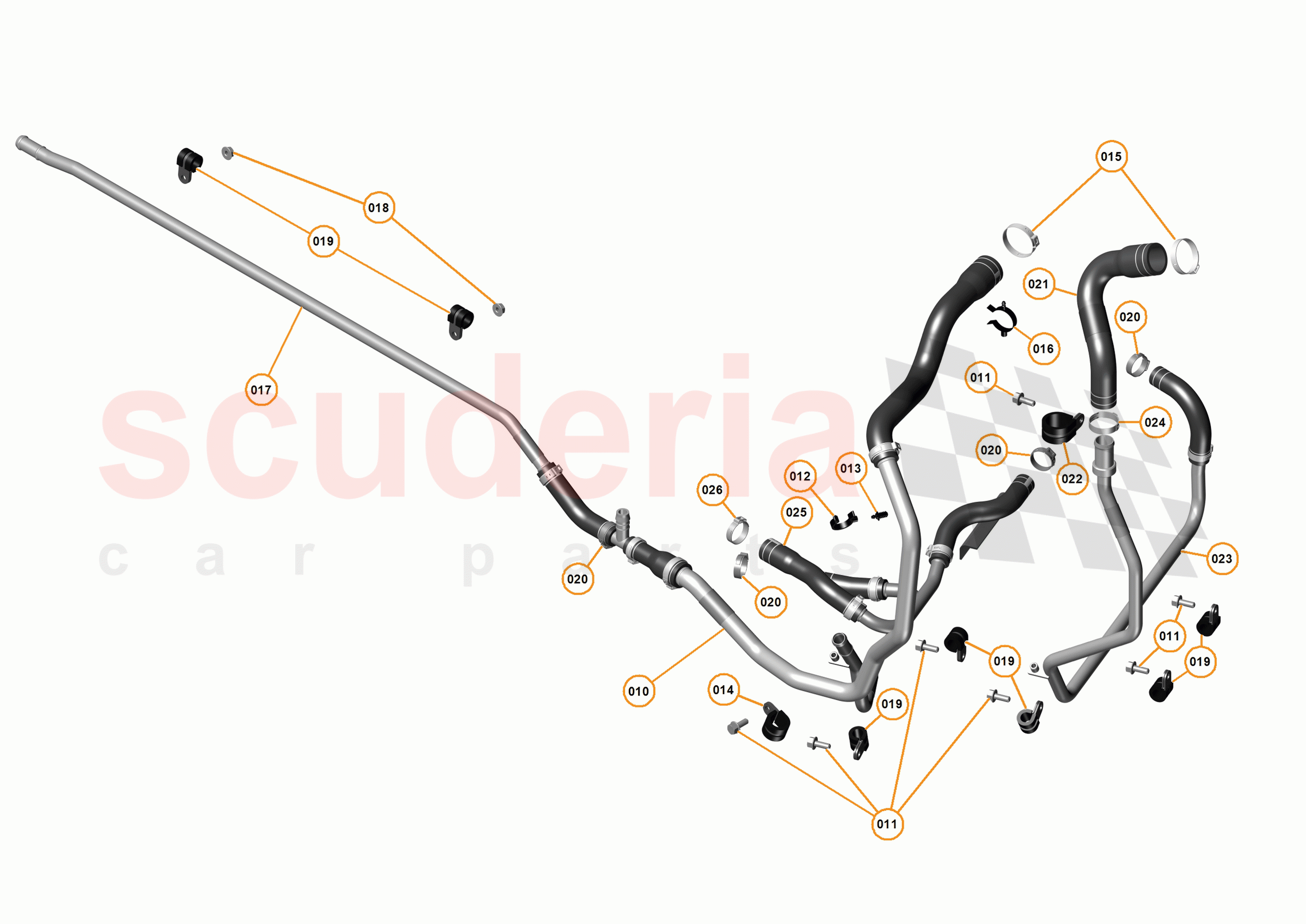

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12L0262CP	Pipe Assy - Hybrid Cooling Pipe to Pump	$446.82	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0059CP	Pipe Assy - Hybrid Cooling - Lateral to Battery	$162.46	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT-HEX HEAD-FLANGE-M6-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB003	P Clip - DIA 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB113	Hose Clamp - 22.6-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0060CP	Pipe Assy - Electric Water Pump to E Motor - Upper	$203.09	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB085	P-CLIP - NORMA - DIA 25X15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0196CP	Pipe Assy - Hybrid Cooling to E Motor	$264.02	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB154	Hose Clamp - Oetiker - 27.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0197CP	Pipe Assy - Hybrid Cooling to - E Motor and Engine	$417.99	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB138	HOSE CLAMP - 23.5-706R	Enquire	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	12L0262CP	Pipe Assy - Hybrid Cooling Pipe to Pump	12L0262CP Pipe Assy - Hybrid Cooling Pipe to Pump Superseded parts: 12L0058CP;	$446.82	1	TO
011	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex	-	5	PE	Enquire
012	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE	-	7	PE	Enquire
013	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	1	PE	Enquire
014	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20	-	1	PE	Enquire
015	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR	-	2	PE	Enquire
016	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	-	1	PE	Enquire
017	12L0059CP	Pipe Assy - Hybrid Cooling - Lateral to Battery	12L0059CP Pipe Assy - Hybrid Cooling - Lateral to Battery	$162.46	1	TO
018	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8	-	2	PE	Enquire
019	00RB003	P Clip - DIA 14	00RB003 P Clip - DIA 14	-	7	PE	Enquire
020	00RB113	Hose Clamp - 22.6-706R	00RB113 Hose Clamp - 22.6-706R	-	4	PE	Enquire
021	12L0060CP	Pipe Assy - Electric Water Pump to E Motor - Upper	12L0060CP Pipe Assy - Electric Water Pump to E Motor - Upper	$203.09	1	TO
022	00RB085	P-CLIP - NORMA - DIA 25X15	00RB085 P-CLIP - NORMA - DIA 25X15	-	1	PE	Enquire
023	12L0196CP	Pipe Assy - Hybrid Cooling to E Motor	12L0196CP Pipe Assy - Hybrid Cooling to E Motor	$264.02	1	TO
024	00RB154	Hose Clamp - Oetiker - 27.1	00RB154 Hose Clamp - Oetiker - 27.1	-	1	PE	Enquire
025	12L0197CP	Pipe Assy - Hybrid Cooling to - E Motor and Engine	12L0197CP Pipe Assy - Hybrid Cooling to - E Motor and Engine	$417.99	1	TO
026	00RB138	HOSE CLAMP - 23.5-706R	00RB138 HOSE CLAMP - 23.5-706R	-	1	PE	Enquire
