McLaren P1 Coupe - 28 - COOLING - HIGH TEMP - 28.1 - HIGH TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
Photo Part No Description Price (each) Stock
12L0256CP Hose - Radiator from Engine - LH $406.20 To Order
Photo Part No Description Price (each) Stock
00RB092 Oetiker Clip - 44.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB089 Stepless Ear Clamp - 48.5-706R Enquire To Order
Photo Part No Description Price (each) Stock
12L0259CP Hose - With Braded Sleeve - Radiator from Engine - RH $406.20 To Order
Photo Part No Description Price (each) Stock
12L0039CP Hose - Radiator Water Bleed - LH $76.15 To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order
Photo Part No Description Price (each) Stock
12L0040CP Hose - Radiator Water Bleed - RH $81.23 To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
12L0037CP Hose - Engine To Radiator - Upper - LH $385.87 To Order
Photo Part No Description Price (each) Stock
00RB057 CLIP - 39-45MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE $39.99 To Order
Photo Part No Description Price (each) Stock
00RB163 HOSE CLAMP - STEPLESS EAR - 42 DIA Enquire To Order

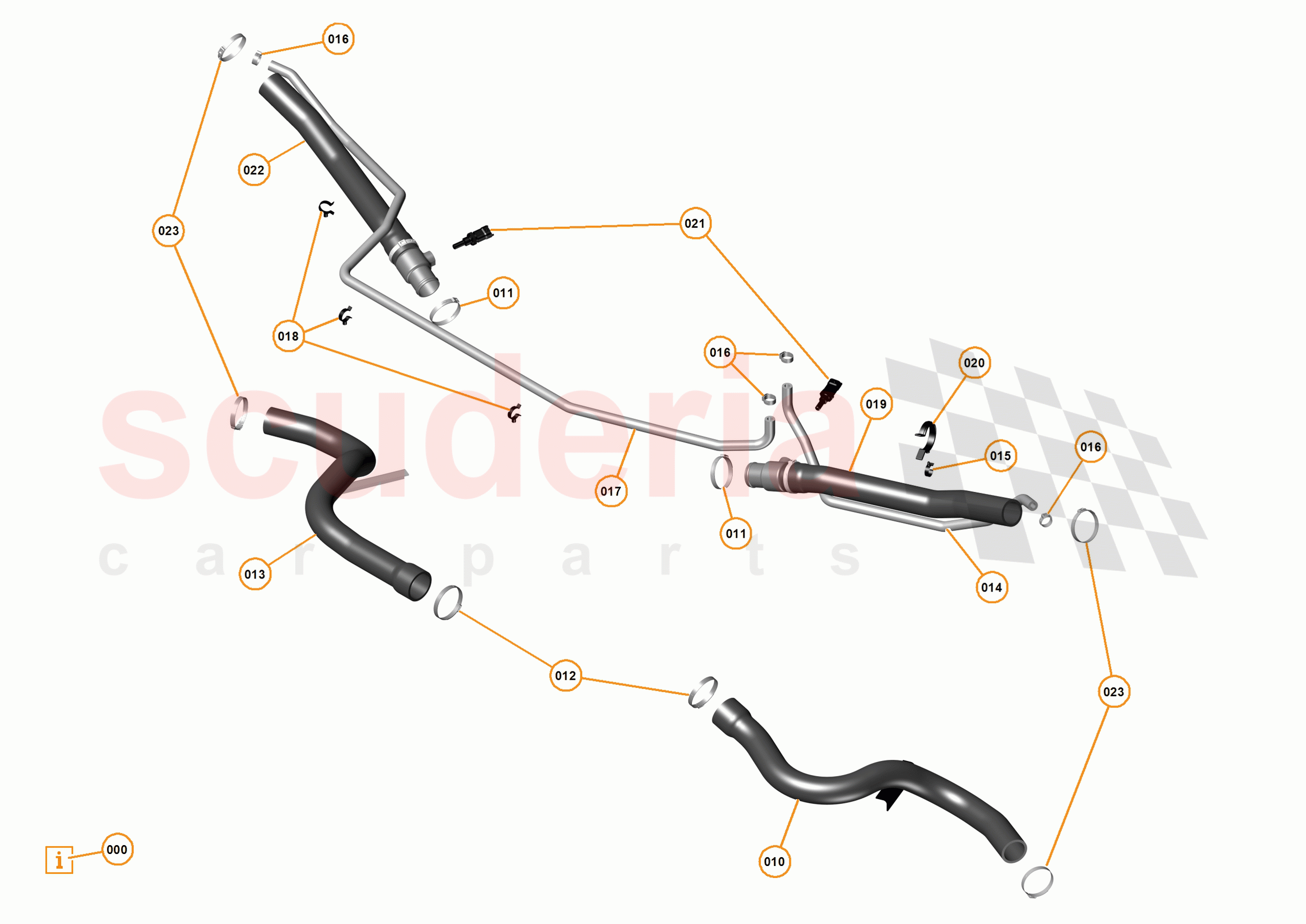

28 - COOLING - HIGH TEMP - 28.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB035
Cable Tie - Female - Dia 8-20 		- 1
PE
 Enquire
010 12L0256CP
Hose - Radiator from Engine - LH 		$406.20 1
TO
011 00RB092
Oetiker Clip - 44.0 		- 2
PE
 Enquire
012 00RB089
Stepless Ear Clamp - 48.5-706R 		- 2
PE
 Enquire
013 12L0259CP
Hose - With Braded Sleeve - Radiator from Engine - RH 		$406.20 1
TO
014 12L0039CP
Hose - Radiator Water Bleed - LH 		$76.15 1
TO

00RB044

SWIVEL PIPE CLIP - 16MM

 -
016 00RB096
STEPLESS EAR CLAMP - 16.2-706R 		- 4
PE
 Enquire
017 12L0040CP
Hose - Radiator Water Bleed - RH 		$81.23 1
TO
019 12L0037CP
Hose - Engine To Radiator - Upper - LH 		$385.87 1
TO
020 00RB057
CLIP - 39-45MM - FEMALE 		- 1
PE
 Enquire
021 11L0247CP
SENSOR - COOLANT TEMPERATURE - ENGINE 		$39.99 2
TO
022 12L0038CP
Hose - Engine To Radiator - Upper - RH 		$385.87 1
TO
023 00RB163
HOSE CLAMP - STEPLESS EAR - 42 DIA 		- 4
PE
 Enquire
