27 - Fuel System - 27.2 - Fuel Delivery

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 27 - FUEL SYSTEM - 27.2 - FUEL DELIVERY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12K0243CP Pipe Assembly - Fuel Feed - Tank $304.64 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order

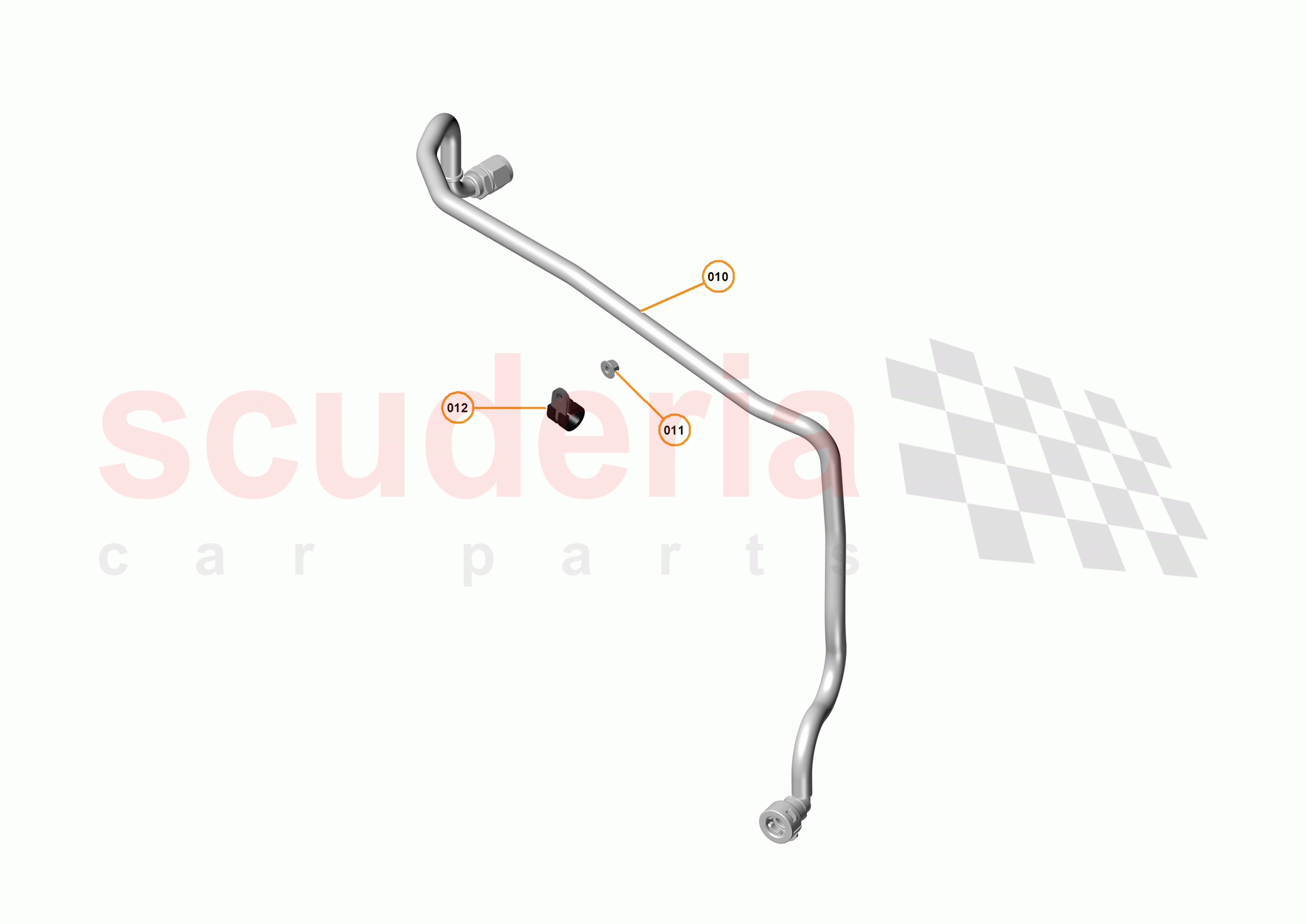

27 - FUEL SYSTEM - 27.2 - FUEL DELIVERY of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12K0243CP
Pipe Assembly - Fuel Feed - Tank 		$304.64 1
TO
011 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
012 00RB005
P CLIP - DIA 16 		- 1
PE
 Enquire
