McLaren P1 Coupe - 27 - FUEL SYSTEM - 27.1 - EVAPORATIVE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
12K0095CP Vent Assy - Fill Level Vent Valve - Fuel Tank $55.84 To Order
Photo Part No Description Price (each) Stock
12K0096CP Vent Assy - Roll Over Valve - Fuel Tank $30.44 To Order
Photo Part No Description Price (each) Stock
12K0170CP Seperator - Liquid/Vapour $385.87 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12K0099CP Pipe Assy - Vent - Separator to Canister $101.53 To Order
Photo Part No Description Price (each) Stock
12K0192CP Bracket - Pipe - Separator to Canister $81.23 To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
12K0098CP Pipe Assy - Purge $223.40 To Order
Photo Part No Description Price (each) Stock
00RB141 SWIVEL CLIP - FEMALE CSC9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
12K0168CP Hose - Breather Canister to Filter $132.00 To Order
Photo Part No Description Price (each) Stock
12K0207CP Heatshield Sleeve - Breather Hose $65.98 To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RB085 P-CLIP - NORMA - DIA 25X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG020 Swivel Clip - 20-24.5mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
12K0167CP Pipe - Breather - Moulded - Canister $172.62 To Order
Photo Part No Description Price (each) Stock
12K0196CP AIR FILTER - DIAGNOSIS MODULE TANK LEAKAGE $76.15 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
00RG038 GROMMET - OD 36.5 ID - 22.2X9.1 - THK Enquire To Order
Photo Part No Description Price (each) Stock
12K0202CP Bracket - DMTL Filter $55.84 To Order
Photo Part No Description Price (each) Stock
12K0206CP Heatshield - DMTL Bracket $60.90 To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA239 SCREW - M6X16 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
12K0197CP FILTER - CHARCOAL $2,051.37 To Order
Photo Part No Description Price (each) Stock
12K0193CP Seal - Foam - Carbon Filter $65.44 To Order
Photo Part No Description Price (each) Stock
12K0194CP Foam - Retaining - Carbon Filter $59.88 To Order
Photo Part No Description Price (each) Stock
12K0140CP Cool Box - Carbon Canister - Lower $2,945.05 To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RG037 Grommet - Reevite - PV77A Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC081 SPACER - NYLON - 6.3/15X7.5 OD Enquire To Order
Photo Part No Description Price (each) Stock
00RL027 STUD - M6X20 - BIG HEAD ROUND Enquire To Order
Photo Part No Description Price (each) Stock
12K0141CP Cool Box - Carbon Canister - Upper $2,538.83 To Order
Photo Part No Description Price (each) Stock
12K0241CP Bracket - Carbon Canister Cool Box - Upper $243.70 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB164 P Clip - DIA 18 Enquire To Order

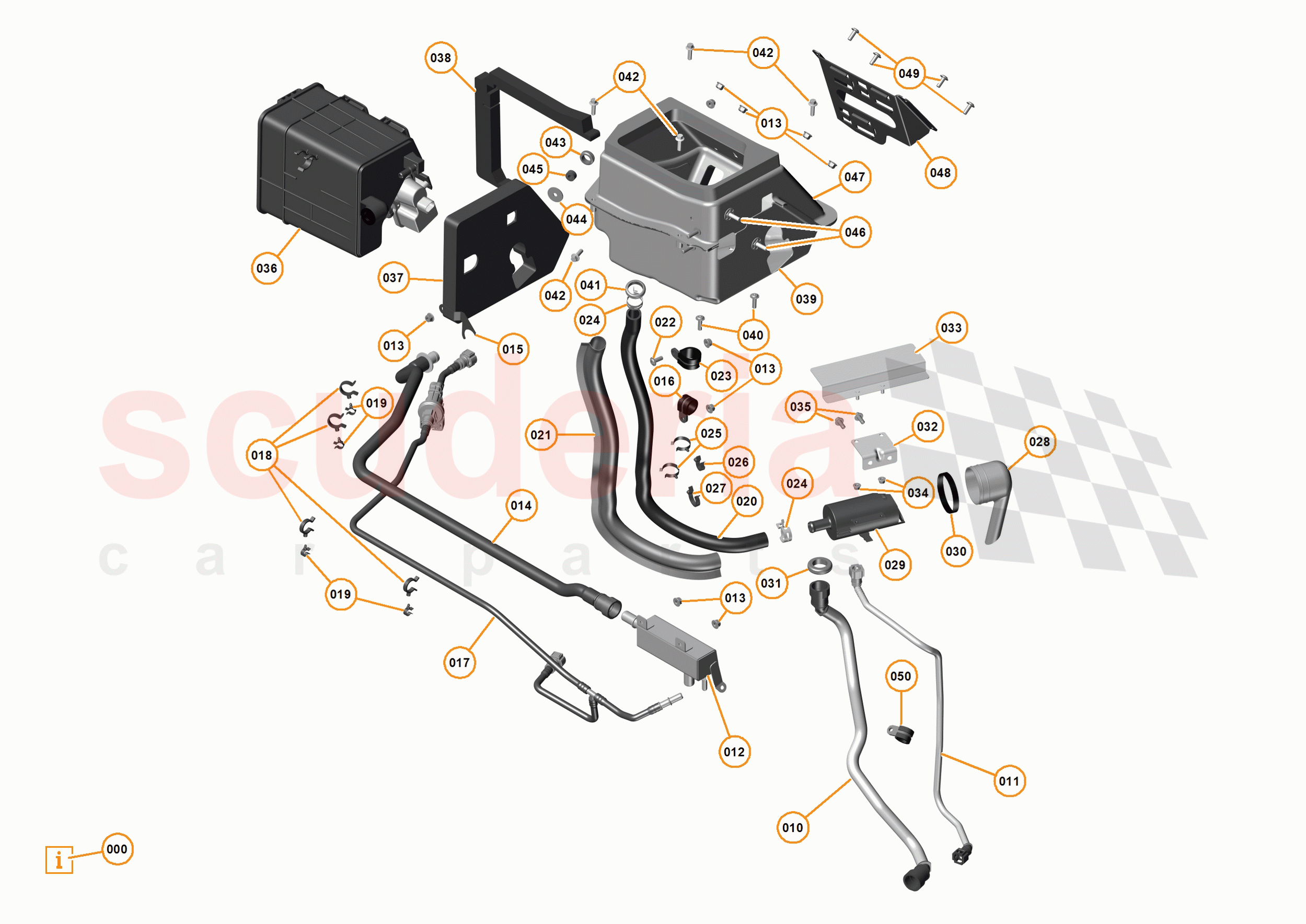

27 - FUEL SYSTEM - 27.1 - EVAPORATIVE SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL023
CABLE TIE - HIGH TEMP 		- 1
PE
 Enquire
010 12K0095CP
Vent Assy - Fill Level Vent Valve - Fuel Tank 		$55.84 1
TO
011 12K0096CP
Vent Assy - Roll Over Valve - Fuel Tank 		$30.44 1
TO
012 12K0170CP
Seperator - Liquid/Vapour 		$385.87 1
TO
013 00RA055
NUT - M6 - LOCKING - HEX 		- 10
PE
 Enquire
014 12K0099CP
Pipe Assy - Vent - Separator to Canister 		$101.53 1
TO
015 12K0192CP
Bracket - Pipe - Separator to Canister 		$81.23 1
TO
016 00RB005
P CLIP - DIA 16 		- 1
PE
 Enquire
017 12K0098CP
Pipe Assy - Purge 		$223.40 1
TO
018 00RB141
SWIVEL CLIP - FEMALE CSC9 		- 4
PE
 Enquire
019 00RB045
CLIP - 9.5-10MM - MALE 		- 4
PE
 Enquire
020 12K0168CP
Hose - Breather Canister to Filter 		$132.00 1
TO
021 12K0207CP
Heatshield Sleeve - Breather Hose 		$65.98 1
TO
022 00RA310
BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS 		- 1
PE
 Enquire
023 00RB085
P-CLIP - NORMA - DIA 25X15 		- 1
PE
 Enquire
024 00RB130
CLIP - SPRING BAND - 22/12 		- 2
PE
 Enquire
025 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 2
PE
 Enquire
026 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
027 00RG020
Swivel Clip - 20-24.5mm - Female 		- 1
PE
 Enquire
028 12K0167CP
Pipe - Breather - Moulded - Canister 		$172.62 1
TO
029 12K0196CP
AIR FILTER - DIAGNOSIS MODULE TANK LEAKAGE 		$76.15 1
TO
030 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1
PE
 Enquire
031 00RG038
GROMMET - OD 36.5 ID - 22.2X9.1 - THK 		- 1
PE
 Enquire
032 12K0202CP
Bracket - DMTL Filter 		$55.84 1
TO
033 12K0206CP
Heatshield - DMTL Bracket 		$60.90 1
TO
034 00RA054
Nut - M5 - Lock Hex 		- 2
PE
 Enquire
035 00RA239
SCREW - M6X16 - LOCK HEX 		- 2
PE
 Enquire
036 12K0197CP
FILTER - CHARCOAL 		$2,051.37 -
TO
037 12K0193CP
Seal - Foam - Carbon Filter 		$65.44 1
TO
038 12K0194CP
Foam - Retaining - Carbon Filter 		$59.88 1
TO
039 12K0140CP
Cool Box - Carbon Canister - Lower 		$2,945.05 1
TO
040 00RA263
SCREW - M6X20 - BUTTON 		- 2
PE
 Enquire
041 00RG037
Grommet - Reevite - PV77A 		- 1
PE
 Enquire
042 00RA083
SCREW - M6X20 - FLANGE HEX 		- 5
PE
 Enquire
043 00RG011
GROMMET - DIA 19 - RUBBER 		- 1
PE
 Enquire
044 00RC043
WASHER - M6XOD25 		- 1
PE
 Enquire
045 00RC081
SPACER - NYLON - 6.3/15X7.5 OD 		- 1
PE
 Enquire
046 00RL027
STUD - M6X20 - BIG HEAD ROUND 		- 2
PE
 Enquire
047 12K0141CP
Cool Box - Carbon Canister - Upper 		$2,538.83 1
TO
048 12K0241CP
Bracket - Carbon Canister Cool Box - Upper 		$243.70 1
TO
049 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 4
PE
 Enquire
050 00RB164
P Clip - DIA 18 		- 1
PE
 Enquire
