23 - Brakes - Systems - 23.3 - Vaccum System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12C0071CP EVAC Pump $487.43 To Order
Photo Part No Description Price (each) Stock
12C0278CP Mount - Rubber - Anti-Vibration $60.90 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
12C0072CP Sensor - Vacuum - Electric Vacuum Pump $302.10 To Order
Photo Part No Description Price (each) Stock
12C0189CP Hose - Sensor - Electric Vacuum Pump $345.26 To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB113 Hose Clamp - 22.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
12C0070CP Hose - Vacuum $324.96 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB069 Stepless Ear Clamp - 12.3-14.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RB087 Clamp - Stepless - 17.5mm Enquire To Order
Photo Part No Description Price (each) Stock
12C0215CP Vacuum Pipe - Assy - Manifold to Brake Booster $4,448.06 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
12C0324CP Hose - Connector to Vacuum Hose $30.44 To Order
Photo Part No Description Price (each) Stock
12C0325CP Valve - One Way - 180 Deg. $35.54 To Order

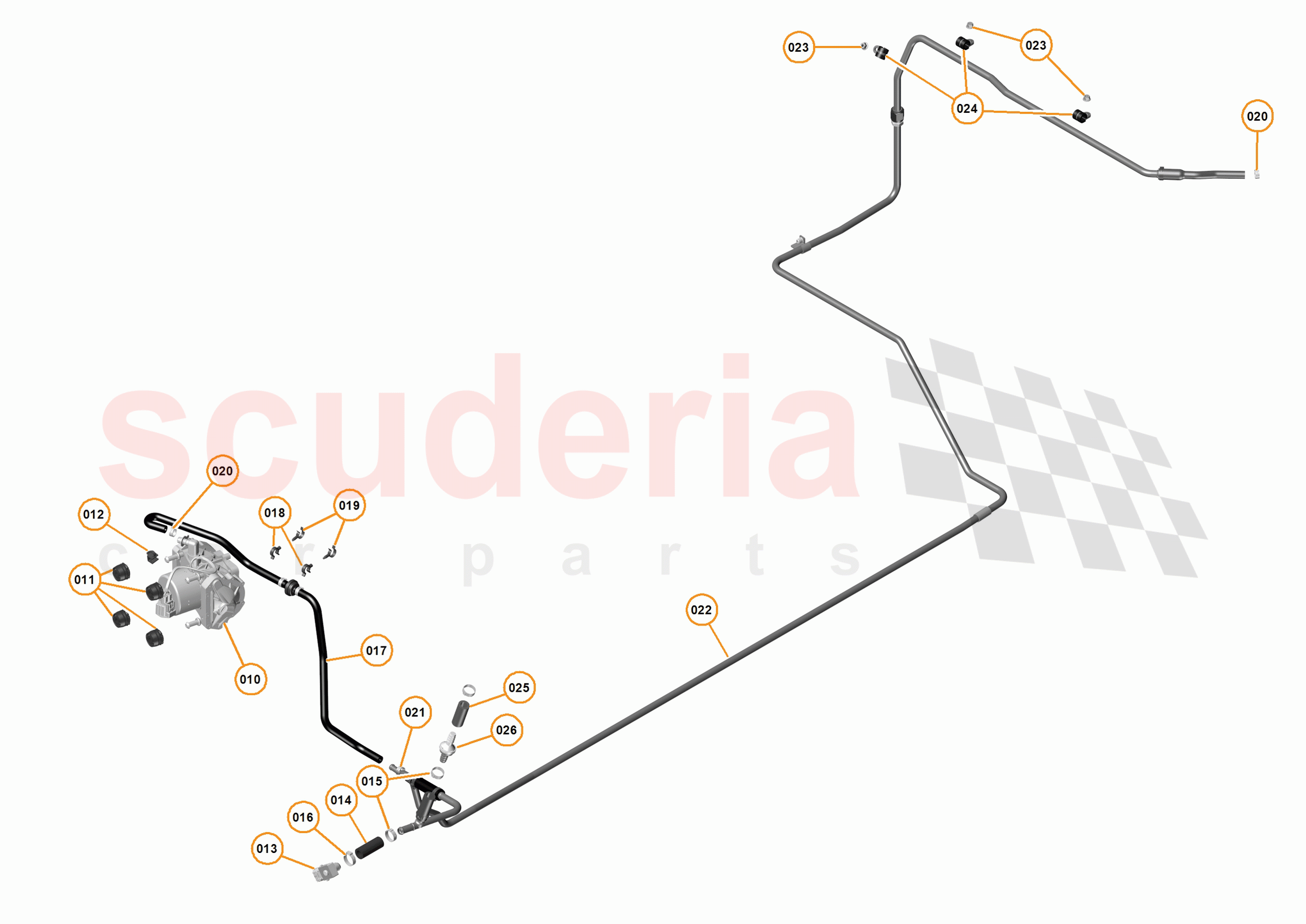

23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12C0071CP
EVAC Pump
EVAC Pump; 		$487.43 1
TO
011 12C0278CP
Mount - Rubber - Anti-Vibration 		$60.90 4
TO
012 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
013 12C0072CP
Sensor - Vacuum - Electric Vacuum Pump 		$302.10 1
TO
014 12C0189CP
Hose - Sensor - Electric Vacuum Pump 		$345.26 1
TO
015 00RB094
OETIKER CLIP - 21.0 		- 5
PE
 Enquire
016 00RB113
Hose Clamp - 22.6-706R 		- 1
PE
 Enquire
017 12C0070CP
Hose - Vacuum 		$324.96 1
TO
018 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
019 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
020 00RB069
Stepless Ear Clamp - 12.3-14.8 		- 2
PE
 Enquire
021 00RB087
Clamp - Stepless - 17.5mm 		- 1
PE
 Enquire
022 12C0215CP
Vacuum Pipe - Assy - Manifold to Brake Booster 		$4,448.06 1
TO
023 00RA055
NUT - M6 - LOCKING - HEX 		- 3
PE
 Enquire
024 00RB003
P Clip - DIA 14 		- 3
PE
 Enquire
025 12C0324CP
Hose - Connector to Vacuum Hose 		$30.44 1
TO
026 12C0325CP
Valve - One Way - 180 Deg. 		$35.54 1
TO
