23 - Brakes - Systems - 23.1 - Pedal Box

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 23 - BRAKES - SYSTEMS - 23.1 - PEDAL BOX

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11CA002CP THROTTLE PEDAL $966.78 To Order
Photo Part No Description Price (each) Stock
00RA285 SCREW - M6X30 - HEX - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11CA001CP BRAKE PEDAL ASSY - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA236 BOLT-HEX HEAD-FLANGE-M8X70-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA028 BOLT - M8X25 - 10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11C0273CP Pad - Brake Pedal $243.70 To Order
Photo Part No Description Price (each) Stock
11M0352CP Switch - Brake Light $80.54 To Order

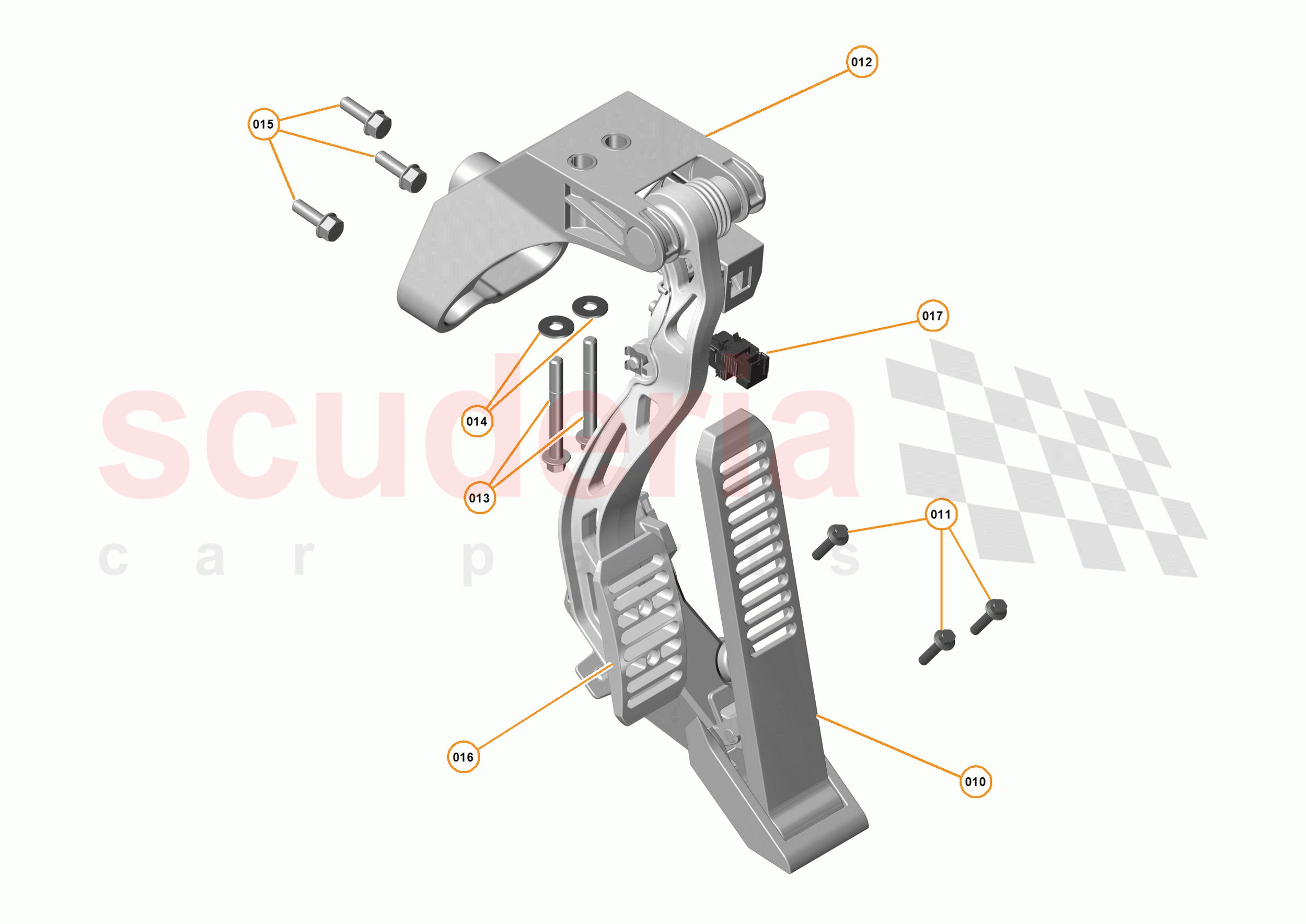

23 - BRAKES - SYSTEMS - 23.1 - PEDAL BOX of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11CA002CP
THROTTLE PEDAL
Superseded parts: 11C0388CP; 		$966.78 1
TO
011 00RA285
SCREW - M6X30 - HEX - BLACK 		- 3
PE
 Enquire
012 11CA001CP
BRAKE PEDAL ASSY - LHD 		- 1
PE
 Enquire
013 00RA236
BOLT-HEX HEAD-FLANGE-M8X70-8.8 		- 2
PE
 Enquire
014 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 2
PE
 Enquire
015 00RA028
BOLT - M8X25 - 10.9 - HEX 		- 3
PE
 Enquire
016 11C0273CP
Pad - Brake Pedal 		$243.70 1
TO
017 11M0352CP
Switch - Brake Light 		$80.54 1
TO
