17 - Suspension - Rear - 17.3 - Transverse Links Rear

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 17 - SUSPENSION - REAR - 17.3 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RD005 Circlip - Cirteq - NJB187 Enquire To Order
Photo Part No Description Price (each) Stock
11B0852CP Gaiter - Tie Rod - Link Rod $111.69 To Order
Photo Part No Description Price (each) Stock
11B0013CP Tie Rod - Ball Joint - Inner $223.40 To Order
Photo Part No Description Price (each) Stock
11B0388CP LINK ROD-TOE LINK-RR $111.69 To Order
Photo Part No Description Price (each) Stock
11B0378CP Tie Rod - Ball Joint - Outer $324.96 To Order
Photo Part No Description Price (each) Stock
00RA174 Half Nut - M14 Enquire To Order
Photo Part No Description Price (each) Stock
12B0497CP Wishbone - Rear - Upper - LH $3,330.96 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12B0498CP Wishbone - Rear - Upper - RH $3,330.96 To Order
Photo Part No Description Price (each) Stock
12B0766CP Wishbone - Rear - Lower - LH $3,777.80 To Order
Photo Part No Description Price (each) Stock
12B0479CP Tophat - Spacer - Diameter 23 - 10.3 ID $111.69 To Order
Photo Part No Description Price (each) Stock
12B0771CP Wishbone - Rear - Lower - RH $3,777.80 To Order

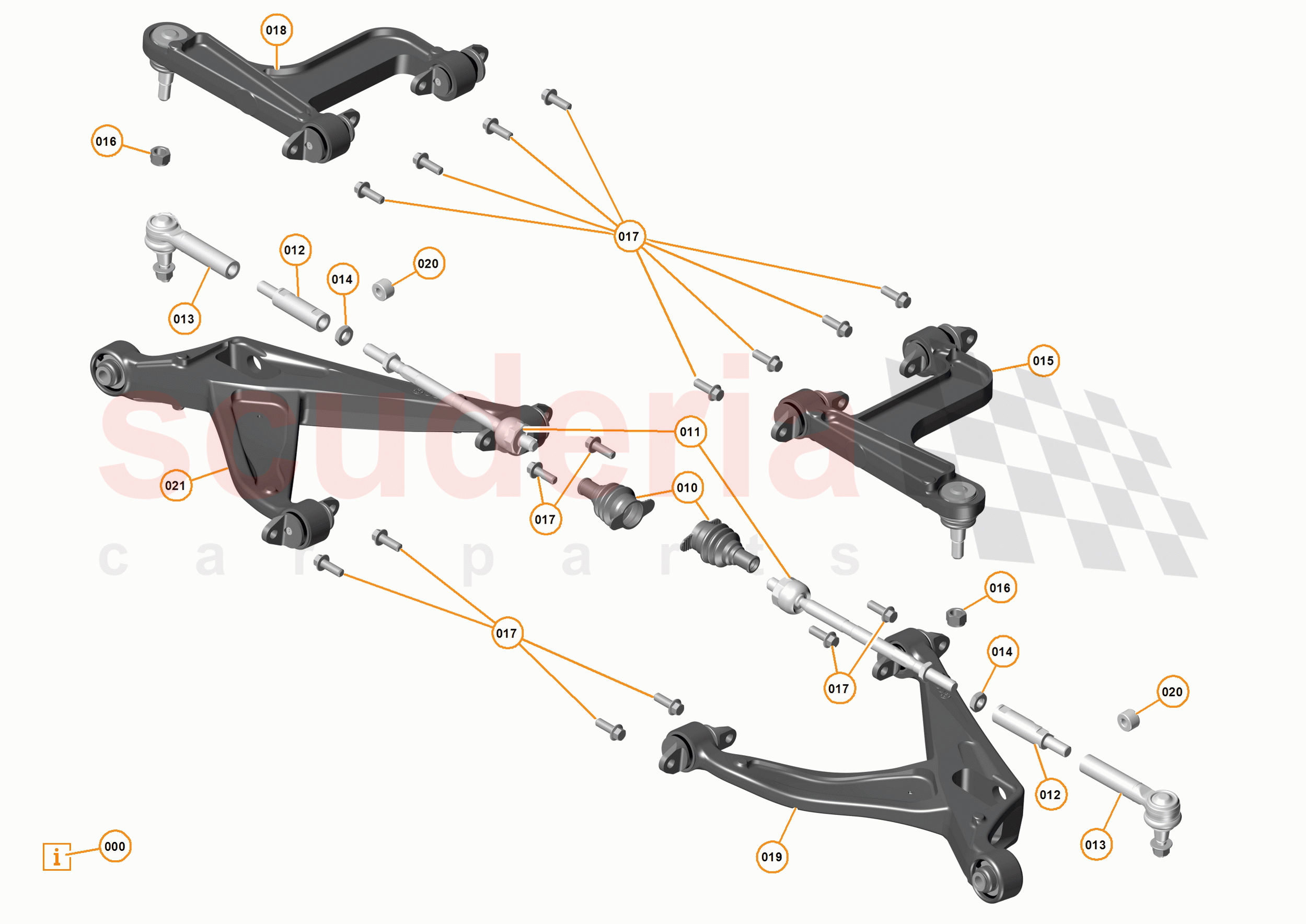

17 - SUSPENSION - REAR - 17.3 - TRANSVERSE LINKS REAR of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RD005
Circlip - Cirteq - NJB187 		- 2
PE
 Enquire
010 11B0852CP
Gaiter - Tie Rod - Link Rod 		$111.69 2
TO
011 11B0013CP
Tie Rod - Ball Joint - Inner 		$223.40 2
TO
012 11B0388CP
LINK ROD-TOE LINK-RR 		$111.69 2
TO
013 11B0378CP
Tie Rod - Ball Joint - Outer 		$324.96 2
TO
014 00RA174
Half Nut - M14 		- 2
PE
 Enquire
015 12B0497CP
Wishbone - Rear - Upper - LH
Superseded parts: 12B0658CP; 		$3,330.96 1
TO
016 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2
PE
 Enquire
017 00RA457
SCREW - M10X30-10.9 - HEX 		- 16
PE
 Enquire
018 12B0498CP
Wishbone - Rear - Upper - RH
Superseded parts: 12B0659CP; 		$3,330.96 1
TO
019 12B0766CP
Wishbone - Rear - Lower - LH
Superseded parts: 12B0921CP; 		$3,777.80 1
TO
020 12B0479CP
Tophat - Spacer - Diameter 23 - 10.3 ID 		$111.69 2
TO
021 12B0771CP
Wishbone - Rear - Lower - RH
Superseded parts: 12B0922CP; 		$3,777.80 1
TO
