McLaren P1 Coupe - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12A2568CP Frame Assy - Rear $27,825.84 To Order
Photo Part No Description Price (each) Stock
11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM $25.37 To Order
Photo Part No Description Price (each) Stock
11A1241CP Shim - 1mm - Rear - Upper $16.22 To Order
Photo Part No Description Price (each) Stock
11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 $15.21 To Order
Photo Part No Description Price (each) Stock
11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM $15.21 To Order
Photo Part No Description Price (each) Stock
11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM $9.89 To Order
Photo Part No Description Price (each) Stock
11A1734CP Shim - 0.5mm - Rear - Lower $14.21 To Order
Photo Part No Description Price (each) Stock
00RA153 Bolt - M10x40 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
12A0362CP Cross Beam - Transmission Floor $2,437.11 To Order
Photo Part No Description Price (each) Stock
00RA157 Screw -M10x30 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order

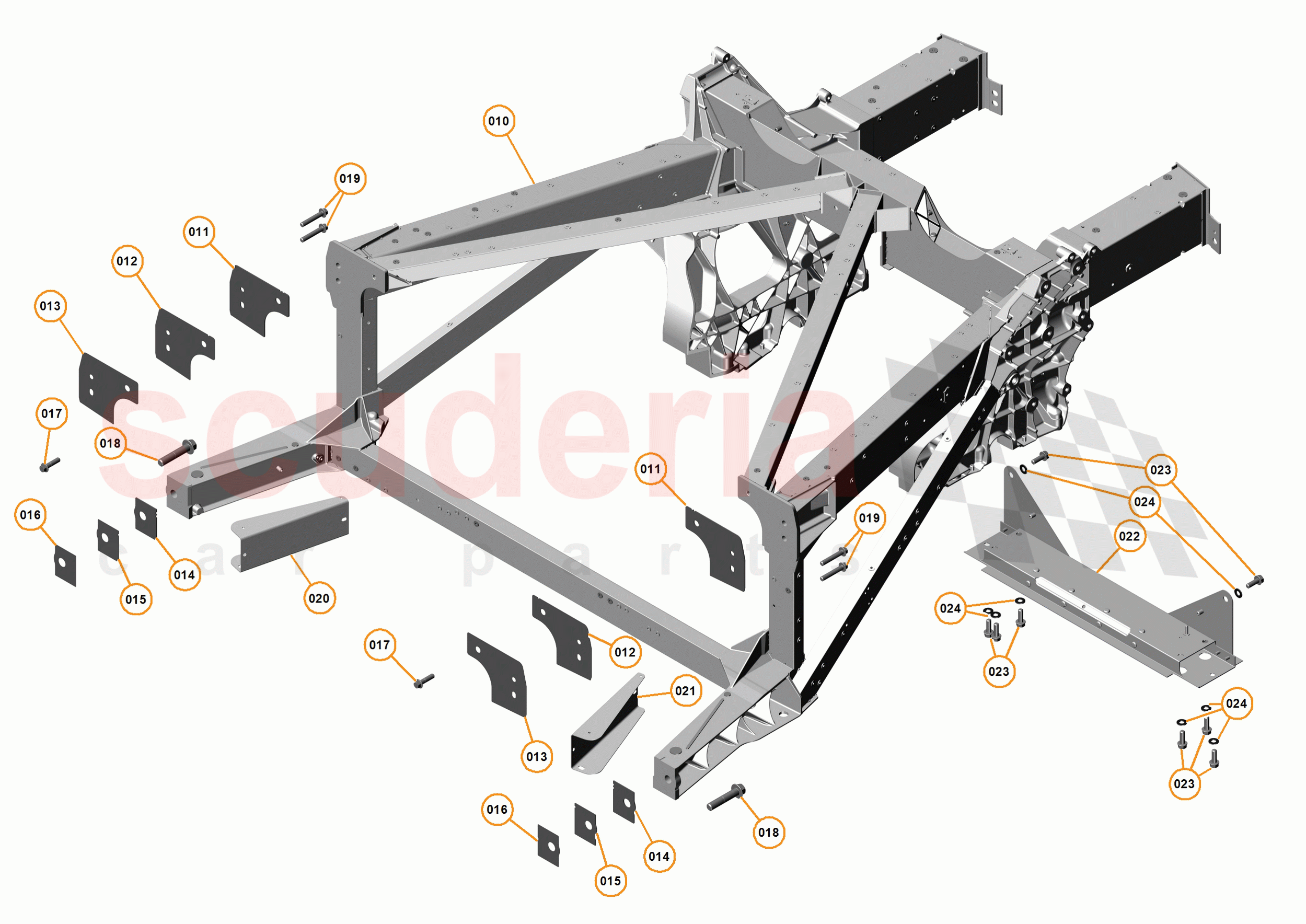

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12A2568CP
Frame Assy - Rear 		$27,825.84 1
TO
011 11A1240CP
SHIM REAR FRAME TO24UB-UPR-2MM 		$25.37 2
TO
012 11A1241CP
Shim - 1mm - Rear - Upper 		$16.22 2
TO
013 11A1242CP
SHIM REAR FRAME TO TUB-UPR-0.5 		$15.21 2
TO
014 11A1732CP
SHIM REAR FRAME TO TUB-LWR-2MM 		$15.21 2
TO
015 11A1733CP
SHIM REAR FRAME TO TUB-LWR-1MM 		$9.89 2
TO
016 11A1734CP
Shim - 0.5mm - Rear - Lower 		$14.21 2
TO
017 00RA153
Bolt - M10x40 - Hex 		- 2
PE
 Enquire
018 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2
PE
 Enquire
019 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4
PE
 Enquire
020 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
021 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
022 12A0362CP
Cross Beam - Transmission Floor 		$2,437.11 1
TO
023 00RA157
Screw -M10x30 - Hex 		- 8
PE
 Enquire
024 00RC065
WASHER - M10X21X2.0 		- 8
PE
 Enquire
