13 - Liners And Nvh - 13.2 - Rear Wheelarch Liners

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 13 - LINERS AND NVH - 13.2 - REAR WHEELARCH LINERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12A3344CP Bump On - Wheel Arch Liner - Rear $1.99 To Order
Photo Part No Description Price (each) Stock
12A1329CP Wheel Arch Liner - Rear - LH $15,045.76 To Order
Photo Part No Description Price (each) Stock
12A2139CP Foam - Sealing - Wheel Arch Liner - Rear - LH $345.26 To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA288 Bolt - M8x25 - Button Enquire To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
12A1330CP Wheel Arch Liner - Rear - RH $15,206.88 To Order
Photo Part No Description Price (each) Stock
12A2219CP Foam - Sealing - Wheel Arch Liner - Rear - RH $345.26 To Order
Photo Part No Description Price (each) Stock
12A2136CP Access Panel - Rear Wheel Arch - LH $1,198.32 To Order
Photo Part No Description Price (each) Stock
00RA408 BUTTON HD FLANGE - M4X8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA414 Multi Thread U Nuts - LB-4M-A Enquire To Order
Photo Part No Description Price (each) Stock
12A2137CP Access Panel - Rear Wheel Arch - RH $1,198.32 To Order
Photo Part No Description Price (each) Stock
12A2220CP Access Panel - Upper - Rear Wheel Arch - LH $1,259.26 To Order
Photo Part No Description Price (each) Stock
12A2221CP Access Panel - Upper - Rear Wheel Arch - RH $1,259.26 To Order
Photo Part No Description Price (each) Stock
12A1720CP Grille - Rear Wheel Arch Liner - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RM009 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
00RC030 Washer - M4x12x1 Enquire To Order
Photo Part No Description Price (each) Stock
12A1824CP Grille - Rear Wheel Arch Liner - RH Enquire To Order
Photo Part No Description Price (each) Stock
12A2140CP Closing Panel Assy - Wheel Arch Duct - Rear - LH $2,701.33 To Order
Photo Part No Description Price (each) Stock
12A2142CP Seal - Rear Wheel Arch Duct - LH $609.32 To Order
Photo Part No Description Price (each) Stock
12A2141CP Closing Panel Assy - Wheel Arch Duct - Rear - RH $2,701.33 To Order
Photo Part No Description Price (each) Stock
12A2143CP Seal - Rear Wheel Arch Duct - RH $609.32 To Order
Photo Part No Description Price (each) Stock
12A1279CP Grille - Induction - Body Side - Rear - LH $649.93 To Order
Photo Part No Description Price (each) Stock
12A1278CP Grille - Induction - Body Side - Rear - RH $649.93 To Order

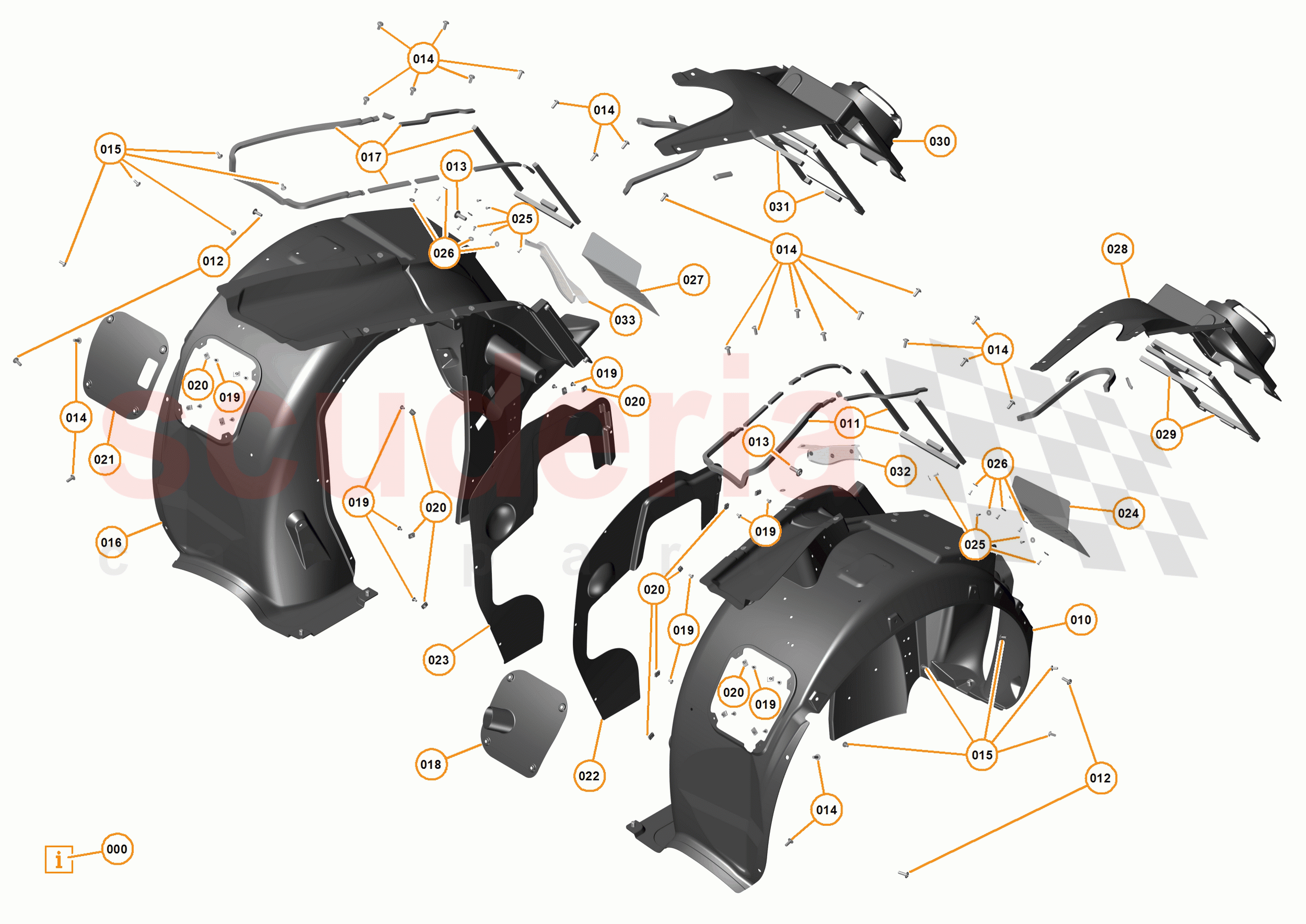

13 - LINERS AND NVH - 13.2 - REAR WHEELARCH LINERS of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 12A3344CP
Bump On - Wheel Arch Liner - Rear 		$1.99 1
TO
010 12A1329CP
Wheel Arch Liner - Rear - LH 		$15,045.76 1
TO
011 12A2139CP
Foam - Sealing - Wheel Arch Liner - Rear - LH 		$345.26 1
TO
012 00RA263
SCREW - M6X20 - BUTTON 		- 2
PE
 Enquire
013 00RA288
Bolt - M8x25 - Button 		- 4
PE
 Enquire
014 00RA310
BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS 		- 24
PE
 Enquire
015 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 10
PE
 Enquire
016 12A1330CP
Wheel Arch Liner - Rear - RH 		$15,206.88 1
TO
017 12A2219CP
Foam - Sealing - Wheel Arch Liner - Rear - RH 		$345.26 1
TO
018 12A2136CP
Access Panel - Rear Wheel Arch - LH 		$1,198.32 1
TO
019 00RA408
BUTTON HD FLANGE - M4X8 		- 18
PE
 Enquire
020 00RA414
Multi Thread U Nuts - LB-4M-A 		- 18
PE
 Enquire
021 12A2137CP
Access Panel - Rear Wheel Arch - RH 		$1,198.32 1
TO
022 12A2220CP
Access Panel - Upper - Rear Wheel Arch - LH 		$1,259.26 1
TO
023 12A2221CP
Access Panel - Upper - Rear Wheel Arch - RH 		$1,259.26 1
TO
024 12A1720CP
Grille - Rear Wheel Arch Liner - LH
Superseded parts: 12A0405CP; 		- 1
PE
 Enquire
025 00RM009
Rivet
Rivet; 		- 16
PE
 Enquire
026 00RC030
Washer - M4x12x1 		- 16
PE
 Enquire
027 12A1824CP
Grille - Rear Wheel Arch Liner - RH
Superseded parts: 12A0406CP; 		- 1
PE
 Enquire
028 12A2140CP
Closing Panel Assy - Wheel Arch Duct - Rear - LH 		$2,701.33 1
TO
029 12A2142CP
Seal - Rear Wheel Arch Duct - LH 		$609.32 1
TO
030 12A2141CP
Closing Panel Assy - Wheel Arch Duct - Rear - RH 		$2,701.33 1
TO
031 12A2143CP
Seal - Rear Wheel Arch Duct - RH 		$609.32 1
TO
032 12A1279CP
Grille - Induction - Body Side - Rear - LH 		$649.93 1
TO
033 12A1278CP
Grille - Induction - Body Side - Rear - RH 		$649.93 1
TO
