McLaren GT - 41 - INTERIOR SYSTEMS - 41.1 - ASSY FACIA - COMPONENTS & HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN $40.26 To Order
Photo Part No Description Price (each) Stock
13N1989CP COVER - EPB SWITCH $24.80 To Order
Photo Part No Description Price (each) Stock
14MA261CP BRKT - FACIA FUSEBOX Enquire To Order
Photo Part No Description Price (each) Stock
14N1539CP CLOSURE PANEL - FACIA - LH - LHD Enquire To Order
14N1541CP CLOSURE PANEL - FACIA - LH - RHD $423.50 To Order
Photo Part No Description Price (each) Stock
14N1540CP CLOSURE PANEL - FACIA - RH - LHD Enquire To Order
14N1542CP CLOSURE PANEL - FACIA - RH - RHD $282.33 To Order
14N1544CP CLOSURE PANEL - FACIA - RH - LHD - FEDERAL Enquire To Order
Photo Part No Description Price (each) Stock
13N2475CP COVER - CLUSTER - LOWER $193.36 To Order
Photo Part No Description Price (each) Stock
14N1560CP LAMP - FOOTWELL - LH $55.36 To Order
Photo Part No Description Price (each) Stock
14N1561CP LAMP - FOOTWELL - RH $55.36 To Order
Photo Part No Description Price (each) Stock
22NA526GP ASSY FACIA STRIP FINISHER LHD Enquire To Order
22NA528GP ASSY FACIA STRIP FINISHER-LIT LHD Enquire To Order
22NA534GP FACIA STRIP FINISHER FED Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13MA049CP MOUNTING - BODY CONTROL UNIT - FACIA $35.29 To Order
Photo Part No Description Price (each) Stock
13A2619CP SENSOR - CABIN TEMPERATURE $132.00 To Order
Photo Part No Description Price (each) Stock
11M2477CP BRACKET - OBD SOCKET MOUNTING $110.76 To Order
Photo Part No Description Price (each) Stock
13N0358CP GRILLE - WINDSCREEN - DEMIST $130.89 To Order
Photo Part No Description Price (each) Stock
13NA253CP AIRBAG - PASSENGER - LHD Enquire To Order
13NA254CP AIRBAG - PASSENGER - RHD $1,949.82 To Order
Photo Part No Description Price (each) Stock
14MA395CP SWITCH - MASTER LIGHTING $324.96 To Order
Photo Part No Description Price (each) Stock
14MA397CP SWITCH - MIRROR CONTROL - PDC $507.76 To Order
Photo Part No Description Price (each) Stock
22MA322GP TAILGATE OPEN SWITCH $162.46 To Order
Photo Part No Description Price (each) Stock
22MA407GP FRONT LUGGAGE COMPARTMENT SWITCH $192.93 To Order
Photo Part No Description Price (each) Stock
11N0999CP KNEEBAG - US Enquire To Order
Photo Part No Description Price (each) Stock
11N1083CP BRACKET - KNEEBOLSTER - REST OF WORLD $65.98 To Order
11N0986CP BRACKET - KNEEBAG Enquire To Order
Photo Part No Description Price (each) Stock
22MA380GP HARNESS FACIA FED NON-EC Enquire To Order
22MA379GP HARNESS FACIA RHD NON-EC Enquire To Order
22MA378GP HARNESS FACIA LHD NON-EC Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13NA251CP GAITER - STEERING COLUMN $121.84 To Order
13N2180CP GAITER - STEERING COLUMN - EC $138.84 To Order
Photo Part No Description Price (each) Stock
13N0304CP CROSS CAR BEAM - FACIA - LHD Enquire To Order
13N0097CP CROSS CAR BEAM - FACIA - RHD $1,348.23 To Order
13N0136CP CROSS CAR BEAM - FACIA - FEDERAL Enquire To Order
Photo Part No Description Price (each) Stock
13N1232CP DAMPER - GLOVEBOX $60.90 To Order
Photo Part No Description Price (each) Stock
13N1233CP RELEASE MECHANISM - GLOVEBOX $96.45 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
00RA595 SCREW - BUTTON HEAD - TORX FLANGED - M3X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA615 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
00RC101 WASHER - TOOTHED - M4 Enquire To Order
Photo Part No Description Price (each) Stock
00RA368 STARLOCK - DIAMETER 5MM SHAFT - 052675 Enquire To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA093 BOLT-HEX HEAD-FLAN12-M8X45-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
11N1167CP SPREADER - SCREW $6.63 To Order
Photo Part No Description Price (each) Stock
22NB488GP FOOTWEL LAMP - CENTRAL $132.00 To Order
Photo Part No Description Price (each) Stock
22NB088GP CLUSTER COVER - UPPER - FACIA Enquire To Order

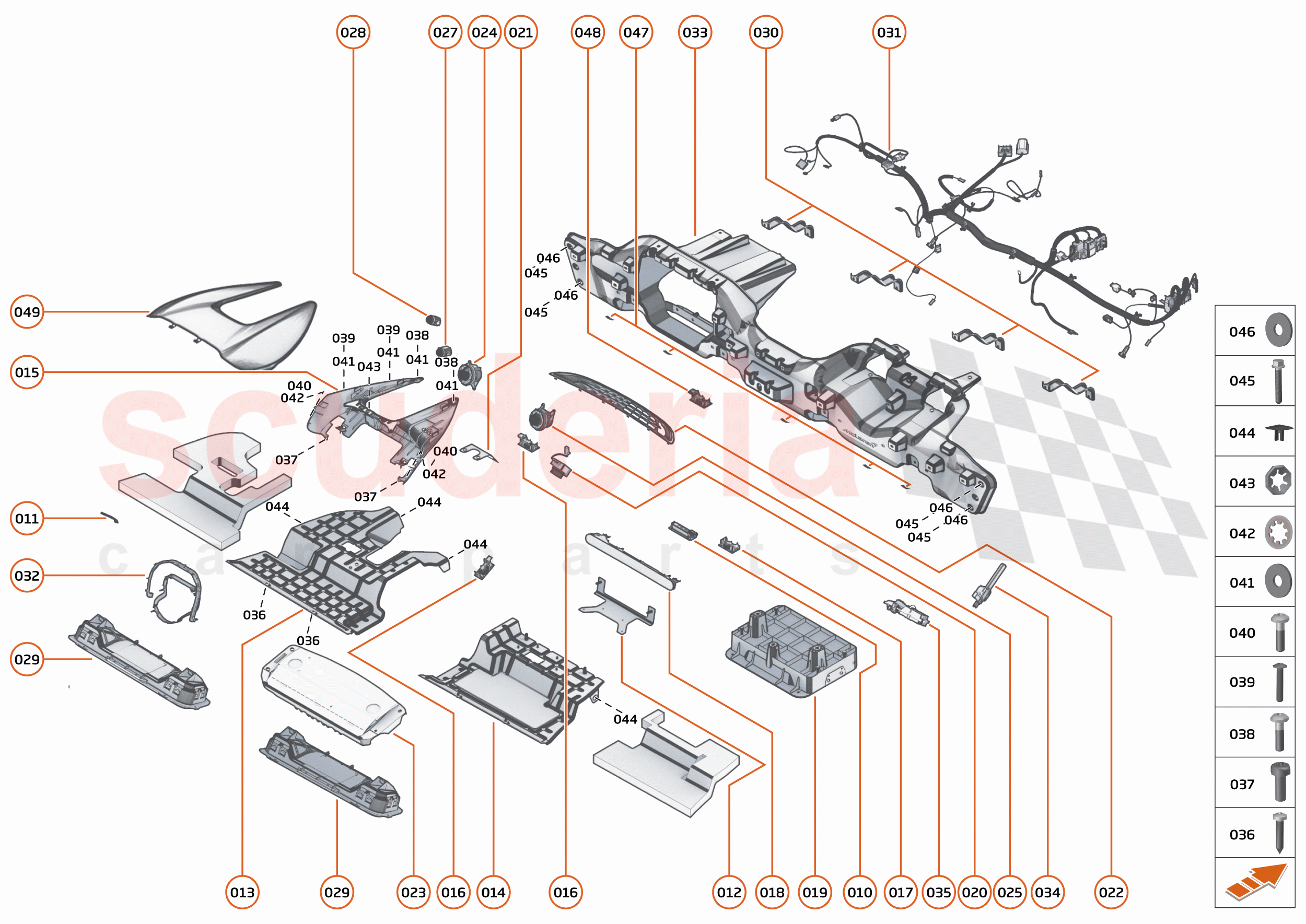

41 - INTERIOR SYSTEMS - 41.1 - ASSY FACIA - COMPONENTS & HARDWARE of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA129
SCREW - NR8X16 		- 2
PE
 Enquire
000 13N1286CP
DAMPER PIN
DAMPER PIN; 		$32.89 1
TO
010 13A5971CP
LAMP - LICENCE PLATE - LUGGAGE BIN 		$40.26 1
TO
011 13N1989CP
COVER - EPB SWITCH 		$24.80 1
TO
012 14MA261CP
BRKT - FACIA FUSEBOX 		- 1
PE
 Enquire
013 14N1539CP
CLOSURE PANEL - FACIA - LH - LHD 		- 1
PE
 Enquire
013 14N1541CP
CLOSURE PANEL - FACIA - LH - RHD 		$423.50 1
TO
014 14N1540CP
CLOSURE PANEL - FACIA - RH - LHD 		- 1
PE
 Enquire
014 14N1542CP
CLOSURE PANEL - FACIA - RH - RHD 		$282.33 1
TO
014 14N1544CP
CLOSURE PANEL - FACIA - RH - LHD - FEDERAL 		- 1
PE
 Enquire
015 13N2475CP
COVER - CLUSTER - LOWER 		$193.36 1
TO
016 14N1560CP
LAMP - FOOTWELL - LH 		$55.36 2
TO
017 14N1561CP
LAMP - FOOTWELL - RH 		$55.36 1
TO
018 22NA526GP
ASSY FACIA STRIP FINISHER LHD 		- 1
PE
 Enquire
018 22NA528GP
ASSY FACIA STRIP FINISHER-LIT LHD 		- 1
PE
 Enquire
018 22NA534GP
FACIA STRIP FINISHER FED 		- 1
PE
 Enquire
018 22NA536GP
FACIA STRIP FINISHER-LIT FED 		- 1
PE
 Enquire
019 13MA049CP
MOUNTING - BODY CONTROL UNIT - FACIA 		$35.29 1
TO
020 13A2619CP
SENSOR - CABIN TEMPERATURE 		$132.00 1
TO
021 11M2477CP
BRACKET - OBD SOCKET MOUNTING 		$110.76 1
TO
022 13N0358CP
GRILLE - WINDSCREEN - DEMIST 		$130.89 1
TO
023 13NA253CP
AIRBAG - PASSENGER - LHD 		- 1
PE
 Enquire
023 13NA254CP
AIRBAG - PASSENGER - RHD 		$1,949.82 1
TO
024 14MA395CP
SWITCH - MASTER LIGHTING 		$324.96 1
TO
025 14MA397CP
SWITCH - MIRROR CONTROL - PDC 		$507.76 1
TO
027 22MA322GP
TAILGATE OPEN SWITCH 		$162.46 1
TO
028 22MA407GP
FRONT LUGGAGE COMPARTMENT SWITCH 		$192.93 1
TO
029 11N0999CP
KNEEBAG - US 		- 2
PE
 Enquire
030 11N1083CP
BRACKET - KNEEBOLSTER - REST OF WORLD 		$65.98 4
TO
030 11N0986CP
BRACKET - KNEEBAG 		- 4
PE
 Enquire
031 22MA380GP
HARNESS FACIA FED NON-EC 		- 1
PE
 Enquire
031 22MA379GP
HARNESS FACIA RHD NON-EC 		- 1
PE
 Enquire
031 22MA378GP
HARNESS FACIA LHD NON-EC 		- 1
PE
 Enquire
031 22MA381GP
HARNESS FACIA LHD ELEC COLUMN 		- 1
PE
 Enquire
031 22MA382GP
HARNESS FACIA RHD ELEC COLUMN 		- 1
PE
 Enquire
031 22MA383GP
HARNESS FACIA FED ELEC COLUMN 		- 1
PE
 Enquire
032 13NA251CP
GAITER - STEERING COLUMN 		$121.84 1
TO
032 13N2180CP
GAITER - STEERING COLUMN - EC 		$138.84 1
TO
033 13N0304CP
CROSS CAR BEAM - FACIA - LHD 		- 1
PE
 Enquire
033 13N0097CP
CROSS CAR BEAM - FACIA - RHD 		$1,348.23 1
TO
033 13N0136CP
CROSS CAR BEAM - FACIA - FEDERAL 		- 1
PE
 Enquire
034 13N1232CP
DAMPER - GLOVEBOX 		$60.90 1
TO
035 13N1233CP
RELEASE MECHANISM - GLOVEBOX 		$96.45 1
TO
036 00RA112
TORX SCREW-WASHER 4.2X16 		- 7
PE
 Enquire
037 00RA140
SCREW - 3X8 - TORX 		- 2
PE
 Enquire
038 00RA464
SCREW - M4X12 - BUTTON HEAD - SOCKET 		- 2
PE
 Enquire
039 00RA595
SCREW - BUTTON HEAD - TORX FLANGED - M3X16 		- 2
PE
 Enquire
040 00RA615
SCREW - TORX - 3.5X12 		- 2
PE
 Enquire
041 00RC027
WASHER - M4 FORM C - LARGE 		- 4
PE
 Enquire
042 00RC101
WASHER - TOOTHED - M4 		- 2
PE
 Enquire
043 00RA368
STARLOCK - DIAMETER 5MM SHAFT - 052675 		- 1
PE
 Enquire
044 00RM005
ANIXTER RIVET - BLACK 		- 4
PE
 Enquire
045 00RA093
BOLT-HEX HEAD-FLAN12-M8X45-8.8 		- 4
PE
 Enquire
046 00RC015
WASHER - M8X24X2 		- 4
PE
 Enquire
047 11N1167CP
SPREADER - SCREW 		$6.63 5
TO
048 22NB488GP
FOOTWEL LAMP - CENTRAL 		$132.00 1
TO
049 22NB088GP
CLUSTER COVER - UPPER - FACIA 		- 1
PE
 Enquire
