McLaren GT - 36 - WIRING HARNESS - 36.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA179 SCREW - M6X10-10.9 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA595 SCREW - BUTTON HEAD - TORX FLANGED - M3X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA602 BOLT - M6X1X10 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB097 P-CLIP - DIA 25 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB100 P-CLIP - DIA 30 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB211 CLIP - PIPE - WINDSCREEN WASHER Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
22MA243GP HARNESS BODY GT LHD CCM Enquire To Order
22MA247GP HARNESS BODY GT RHD $21,979.53 To Order
22MA249GP HARNESS BODY GT LHD Enquire To Order
Photo Part No Description Price (each) Stock
11M1285CP NVH PAD - GROMMET - UPPER $40.26 To Order
Photo Part No Description Price (each) Stock
11M2517CP NVH PAD - GROMMET - LOWER - LHD $16.19 To Order
11M2530CP NVH PAD - GROMMET - LOWER - RHD $17.10 To Order

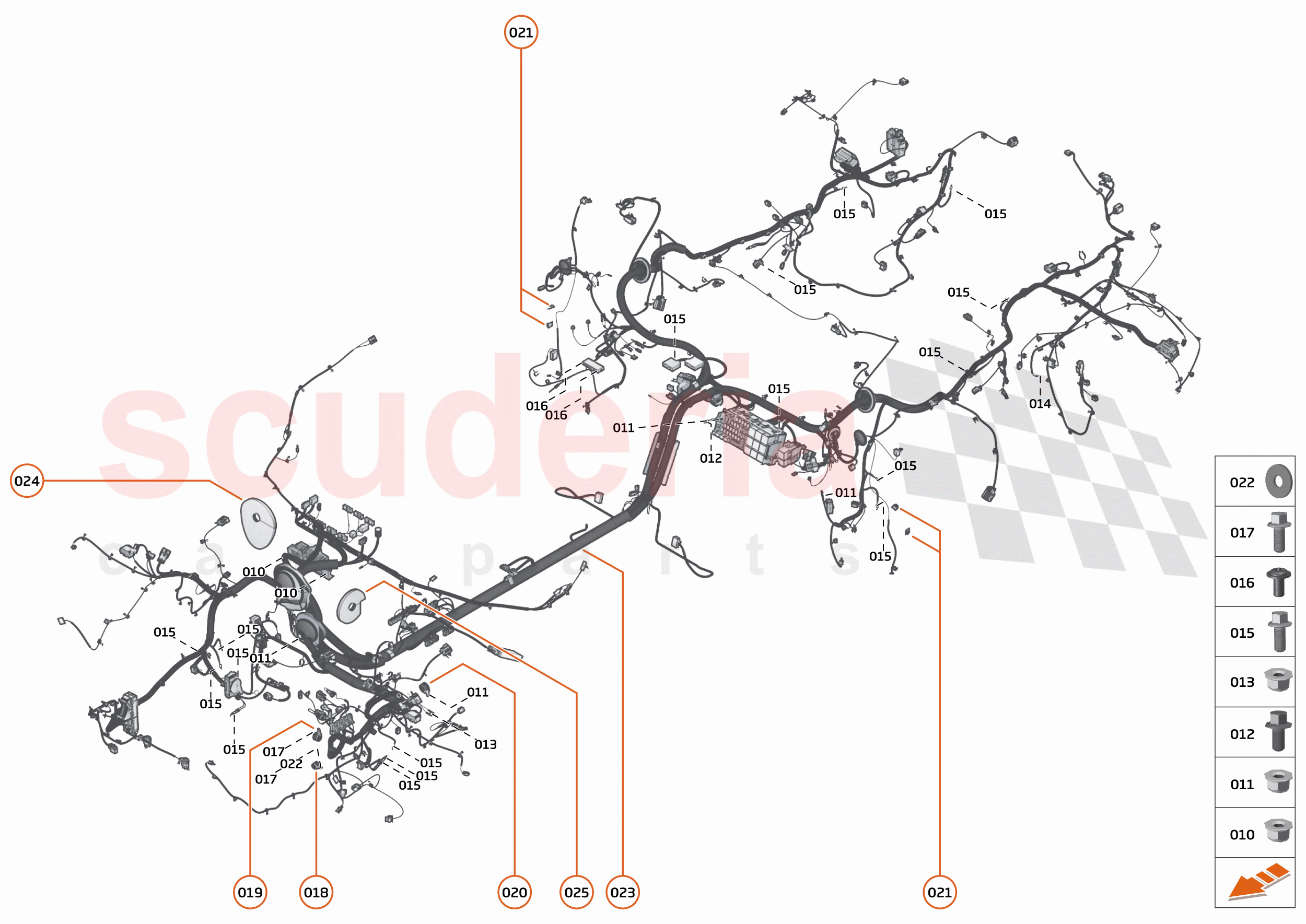

36 - WIRING HARNESS - 36.2 - BODY WIRING HARNESS of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 6
PE
 Enquire
011 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
012 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
013 00RA075
NUT - M8-8 - HEX 		- 2
PE
 Enquire
014 00RA179
SCREW - M6X10-10.9 - BUTTON 		- 1
PE
 Enquire
015 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
016 00RA595
SCREW - BUTTON HEAD - TORX FLANGED - M3X16 		- 2
PE
 Enquire
017 00RA602
BOLT - M6X1X10 - TORX 		- 2
PE
 Enquire
018 00RB060
P CLIP - DIA 20 		- 3
PE
 Enquire
019 00RB097
P-CLIP - DIA 25 - M6 		- 2
PE
 Enquire
020 00RB100
P-CLIP - DIA 30 - M6 		- 1
PE
 Enquire
021 00RB211
CLIP - PIPE - WINDSCREEN WASHER 		- 1
PE
 Enquire
022 00RC008
WASHER - M6X12.5X0.9 		- 2
PE
 Enquire
023 22MA243GP
HARNESS BODY GT LHD CCM 		- 1
PE
 Enquire
023 22MA247GP
HARNESS BODY GT RHD 		$21,979.53 1
TO
023 22MA249GP
HARNESS BODY GT LHD 		- 1
PE
 Enquire
024 11M1285CP
NVH PAD - GROMMET - UPPER 		$40.26 1
TO
025 11M2517CP
NVH PAD - GROMMET - LOWER - LHD 		$16.19 1
TO
025 11M2530CP
NVH PAD - GROMMET - LOWER - RHD 		$17.10 1
TO
