33 - Hvac - 33.1 - Hvac Inlet And Distribution

McLaren GT

Find Your Part

McLaren GT - 33 - HVAC - 33.1 - HVAC INLET AND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA369 SCREW - PLAS TECH - M6X16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC075 WASHER - NYLON - 14.35X6.45X2.39 Enquire To Order
Photo Part No Description Price (each) Stock
13A3588CP DISTRIBUTION UNIT - HVAC $897.76 To Order
Photo Part No Description Price (each) Stock
22LA029CP INTAKE UNIT - HVAC - R1234YF $1,299.87 To Order
13AB029CP INTAKE UNIT - HVAC - R1234YF $1,409.89 To Order
13A4013CP INTAKE UNIT - HVAC $1,265.76 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A4152CP HVAC CABIN AIR FILTER $81.23 IN STOCK

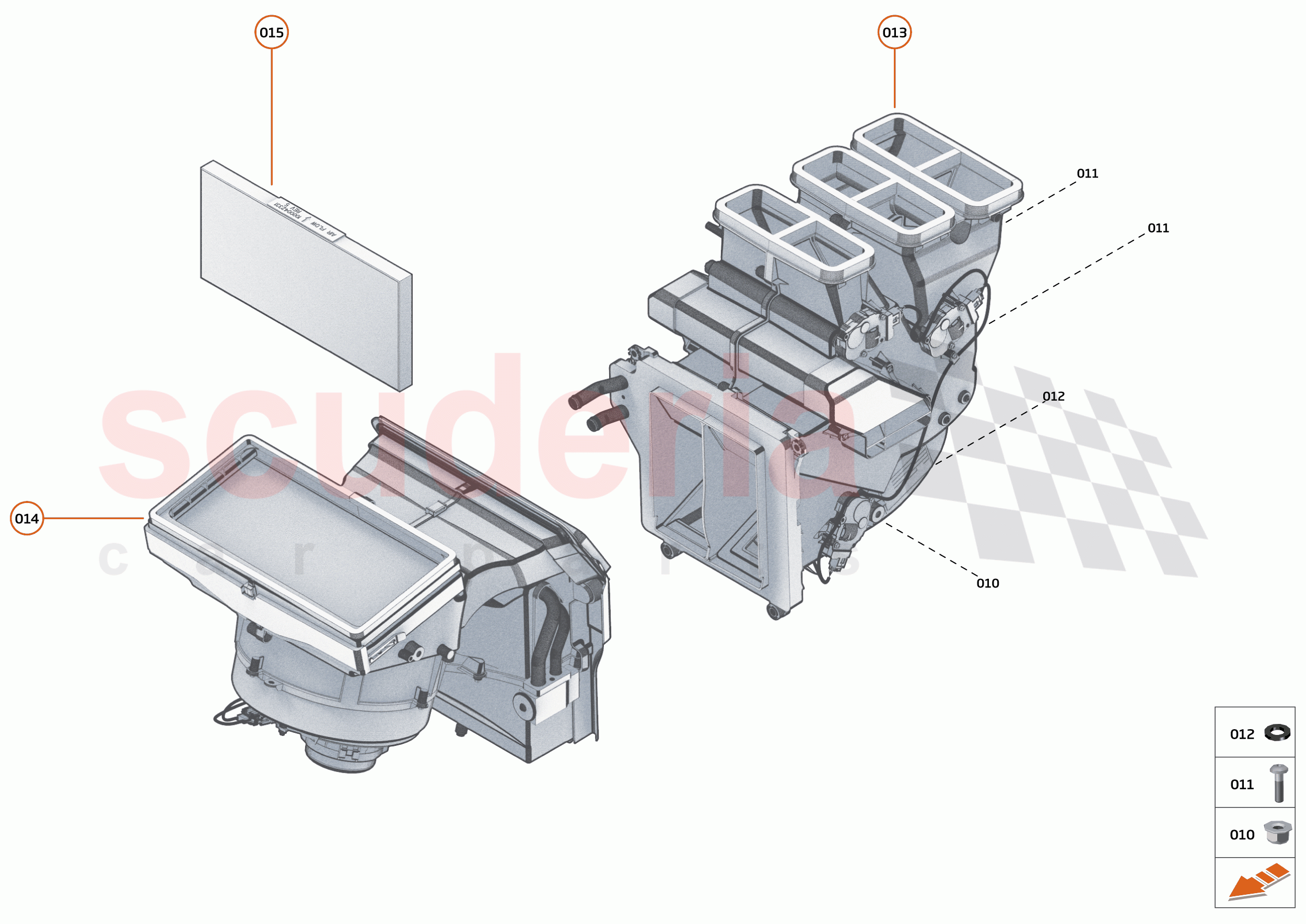

33 - HVAC - 33.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
011 00RA369
SCREW - PLAS TECH - M6X16MM 		- 2
PE
 Enquire
012 00RC075
WASHER - NYLON - 14.35X6.45X2.39 		- 2
PE
 Enquire
013 13A3588CP
DISTRIBUTION UNIT - HVAC 		$897.76 1
TO
014 22LA029CP
INTAKE UNIT - HVAC - R1234YF
Superseded parts: 13A5729CP; 		$1,299.87 1
TO
014 13AB029CP
INTAKE UNIT - HVAC - R1234YF 		$1,409.89 1
TO
014 13A4013CP
INTAKE UNIT - HVAC 		$1,265.76 1
TO
014 13AB030CP
INTAKE UNIT - HVAC 		$1,409.89 1
TO
014 22LA031CP
INTAKE UNIT - HVAC - ANTIALLERGENS 		- 1
PE
 Enquire
015 11A4152CP
HVAC CABIN AIR FILTER
IN STOCK 		$81.23 1
IN
