31 - Fuel System - 31.4 - Evaporative System

McLaren GT

Find Your Part

McLaren GT - 31 - FUEL SYSTEM - 31.4 - EVAPORATIVE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
14K0049CP PIPE ASSY - PURGE $50.76 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
Photo Part No Description Price (each) Stock
22FA045GP ASSY-VENTURI PURGE HOSE Enquire To Order

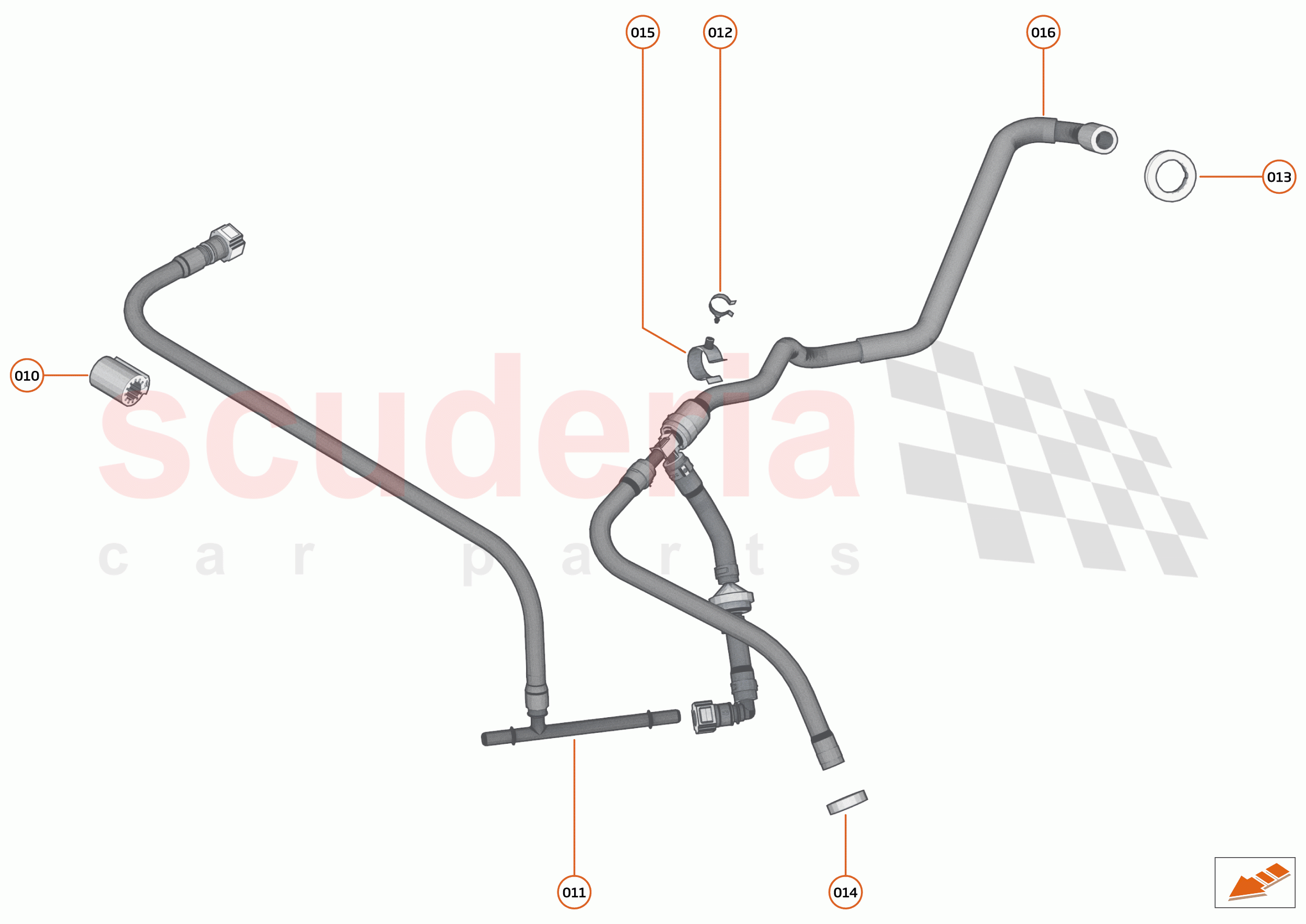

31 - FUEL SYSTEM - 31.4 - EVAPORATIVE SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
011 14K0049CP
PIPE ASSY - PURGE 		$50.76 1
TO
012 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
013 00RB094
OETIKER CLIP - 21.0 		- 2
PE
 Enquire
014 00RB096
STEPLESS EAR CLAMP - 16.2-706R 		- 1
PE
 Enquire
015 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22 		- 1
PE
 Enquire
016 22FA045GP
ASSY-VENTURI PURGE HOSE 		- 1
PE
 Enquire
