31 - Fuel System - 31.1 - Fuel Tank

McLaren GT

Find Your Part

McLaren GT - 31 - FUEL SYSTEM - 31.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
14KA064CP PIPE - BREATHER - MOULDED - CANISTER $50.76 To Order
Photo Part No Description Price (each) Stock
14K0053CP FILTER - CHARCOAL $812.40 To Order
Photo Part No Description Price (each) Stock
14K0054CP PIPE - PURGE - FUEL TANK $111.69 To Order
Photo Part No Description Price (each) Stock
14K0118CP HOSE - FUEL FEED $111.69 To Order
Photo Part No Description Price (each) Stock
14K0123CP BRACKET - CANISTER SUPPORT $18.26 To Order
Photo Part No Description Price (each) Stock
14K0140CP PAD - FUEL TANK - CANISTER $12.08 IN STOCK
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $71.07 To Order
Photo Part No Description Price (each) Stock
14K0079CP FLANGE - FUEL TANK $86.29 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $35.23 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $65.44 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $13.06 To Order
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $11.06 To Order
Photo Part No Description Price (each) Stock
14MA051CP HARNESS - FUEL CELL $110.76 To Order
Photo Part No Description Price (each) Stock
14KA060CP ASSY - FUEL TANK - COMPLETE - ROW $5,139.13 To Order
14KA062CP ASSY - FUEL TANK - COMPLETE - ASSY - CHINA FUEL TANK - COMPL Enquire To Order
14KA085CP ASSY FUEL TANK COMPLETE FED - FROM MY22 ONWARDS Enquire To Order
Photo Part No Description Price (each) Stock
14KA063CP CONTROLLER - FUEL PUMP $322.24 To Order
14KA014CP CONTROLLER - FUEL PUMP Enquire To Order

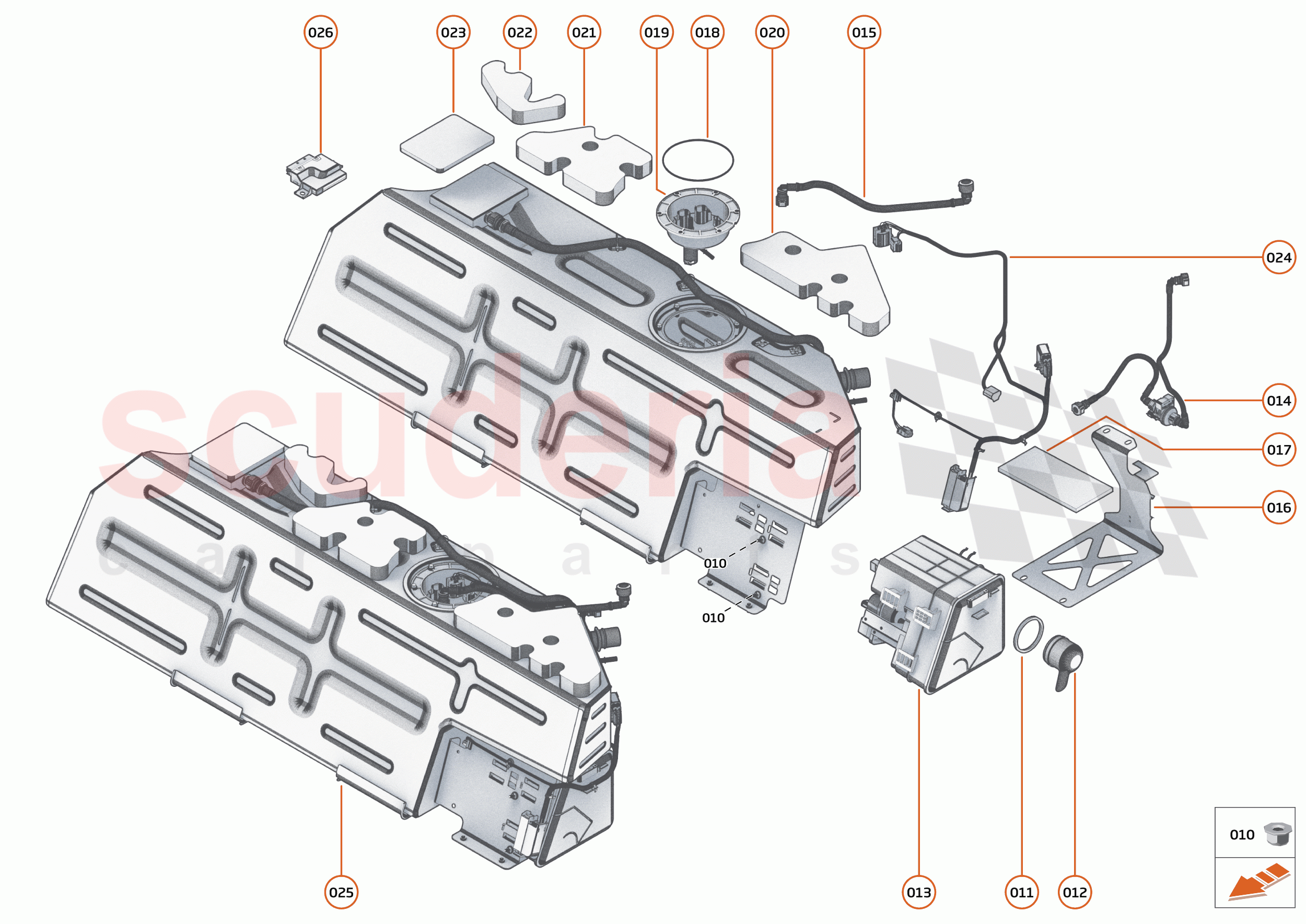

31 - FUEL SYSTEM - 31.1 - FUEL TANK of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 14KA018CP
FUEL FILTER 		$382.66 1
TO
000 14KA019CP
ASSY - FUEL PUMP 		$629.70 1
TO
010 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
011 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1
PE
 Enquire
012 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER 		$50.76 1
TO
013 14K0053CP
FILTER - CHARCOAL 		$812.40 1
TO
014 14K0054CP
PIPE - PURGE - FUEL TANK 		$111.69 1
TO
015 14K0118CP
HOSE - FUEL FEED 		$111.69 1
TO
016 14K0123CP
BRACKET - CANISTER SUPPORT 		$18.26 1
TO
017 14K0140CP
PAD - FUEL TANK - CANISTER
IN STOCK 		$12.08 1
IN
018 12K0229CP
SEAL - RETAINING RING - FUEL PUMP 		$71.07 1
TO
019 14K0079CP
FLANGE - FUEL TANK 		$86.29 1
TO
020 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$35.23 1
TO
021 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$65.44 1
TO
022 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$13.06 1
TO
023 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$11.06 1
TO
024 14MA051CP
HARNESS - FUEL CELL 		$110.76 1
TO
025 14KA060CP
ASSY - FUEL TANK - COMPLETE - ROW 		$5,139.13 1
TO
025 14KA062CP
ASSY - FUEL TANK - COMPLETE - ASSY - CHINA FUEL TANK - COMPL 		- 1
PE
 Enquire
025 14KA085CP
ASSY FUEL TANK COMPLETE FED - FROM MY22 ONWARDS 		- 1
PE
 Enquire
026 14KA063CP
CONTROLLER - FUEL PUMP 		$322.24 1
TO
026 14KA014CP
CONTROLLER - FUEL PUMP 		- 1
PE
 Enquire
