28 - Acoustic System - 28.1 - Intake Sound Generator (Isg)

McLaren GT

Find Your Part

McLaren GT - 28 - ACOUSTIC SYSTEM - 28.1 - INTAKE SOUND GENERATOR (ISG)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB097 P-CLIP - DIA 25 - M6 Enquire To Order
00RB085 P-CLIP - NORMA - DIA 25X15 Enquire To Order
Photo Part No Description Price (each) Stock
11F0651CP CLAMP - THROTTLE - INTAKE SOUND GENERATOR $60.90 To Order
Photo Part No Description Price (each) Stock
11F2298CP INTAKE SOUND GENERATOR - THROTTLE $1,198.32 To Order
Photo Part No Description Price (each) Stock
13F0839CP INTAKE SOUND GENERATOR $345.26 To Order
Photo Part No Description Price (each) Stock
22FA162GP PLATE ISG HOSES $71.07 To Order
Photo Part No Description Price (each) Stock
00RA594 SCREW - M6X55 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
22FA158GP ISG HOSE LH $162.46 To Order
Photo Part No Description Price (each) Stock
22FA159GP ISG HOSE RH $162.46 To Order
Photo Part No Description Price (each) Stock
22FA160GP HOSE SYMPOSER T- JOINT $69.32 To Order
Photo Part No Description Price (each) Stock
22FA161GP ISG - HOSE T JOINT $104.79 To Order

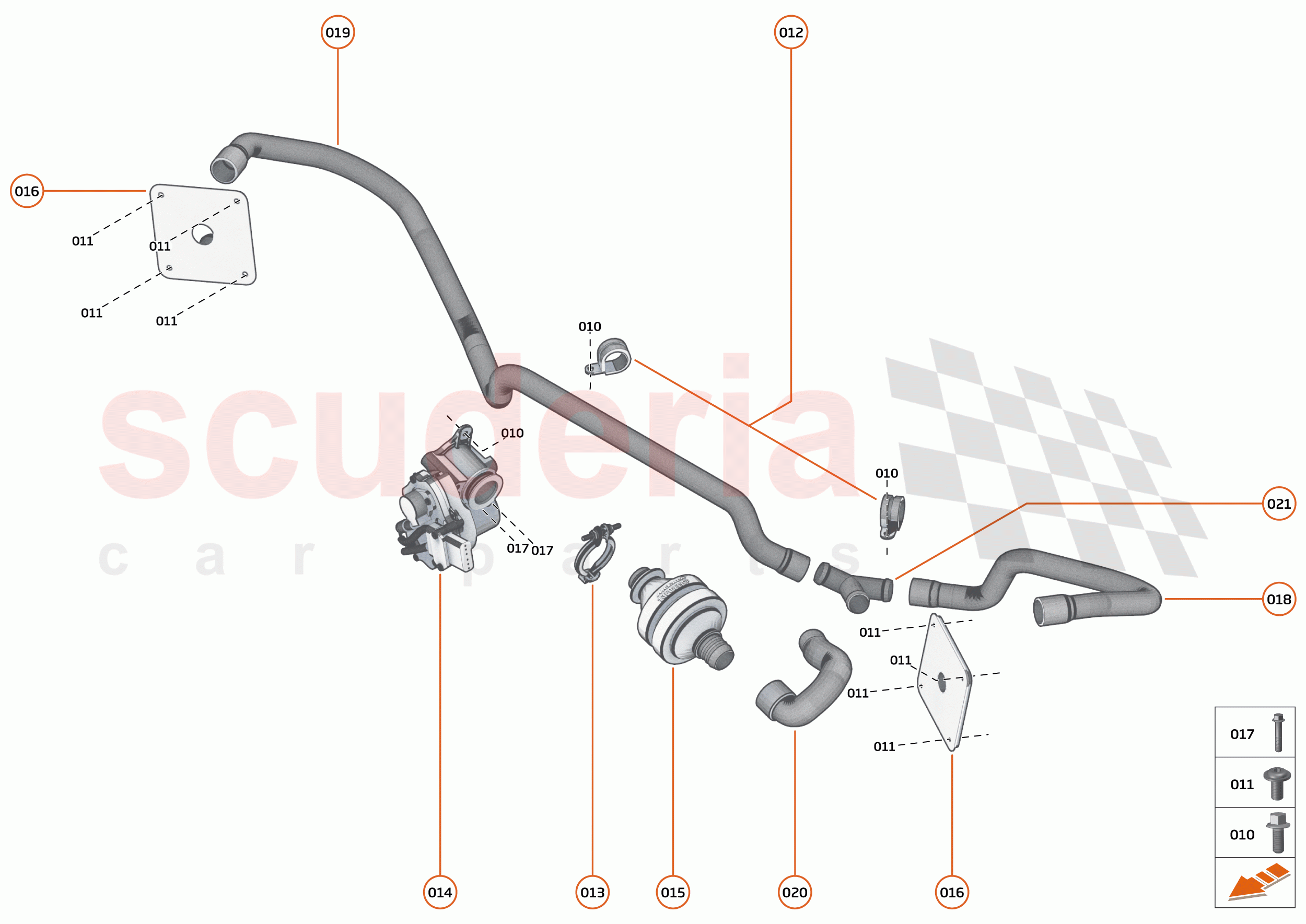

28 - ACOUSTIC SYSTEM - 28.1 - INTAKE SOUND GENERATOR (ISG) of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
011 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 2
PE
 Enquire
012 00RB097
P-CLIP - DIA 25 - M6 		- 2
PE
 Enquire
012 00RB085
P-CLIP - NORMA - DIA 25X15 		- 2
PE
 Enquire
013 11F0651CP
CLAMP - THROTTLE - INTAKE SOUND GENERATOR 		$60.90 1
TO
014 11F2298CP
INTAKE SOUND GENERATOR - THROTTLE 		$1,198.32 1
TO
015 13F0839CP
INTAKE SOUND GENERATOR 		$345.26 1
TO
016 22FA162GP
PLATE ISG HOSES 		$71.07 2
TO
017 00RA594
SCREW - M6X55 - FLANGE HEX 		- 2
PE
 Enquire
018 22FA158GP
ISG HOSE LH 		$162.46 1
TO
019 22FA159GP
ISG HOSE RH 		$162.46 1
TO
020 22FA160GP
HOSE SYMPOSER T- JOINT 		$69.32 1
TO
021 22FA161GP
ISG - HOSE T JOINT 		$104.79 1
TO
