McLaren GT - 27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
14F0200CP FILTER - AIR - ENGINE $164.98 To Order
Photo Part No Description Price (each) Stock
14F0362CP SENSOR - MASS AIR FLOW $299.89 To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
00RB031 CLAMP - HOSE - 90-110 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11F0471CP SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE $30.44 To Order
Photo Part No Description Price (each) Stock
14F0203CP HOSE - CLEAN AIRBOX TO DUCT - LH $109.94 To Order
Photo Part No Description Price (each) Stock
14F0204CP HOSE - CLEAN AIRBOX TO DUCT - RH $109.94 To Order
Photo Part No Description Price (each) Stock
14FA117CP DUCT - CLEAN AIR - LH $191.32 To Order
Photo Part No Description Price (each) Stock
11F0889CP SPACER - TOPHAT - AIRBOX $20.29 To Order
Photo Part No Description Price (each) Stock
14F0586CP GROMMET - CLEAN AIR BOX $1.61 To Order
Photo Part No Description Price (each) Stock
14FA119CP DUCT - CLEAN AIR - RH $191.32 To Order
Photo Part No Description Price (each) Stock
22FA024GP HOSE CLEAN AIR LH-DUCT TO TC $172.62 To Order
Photo Part No Description Price (each) Stock
14F0670CP SEAL - DIRTY AIR DUCT TO AIRBOX $12.17 To Order
Photo Part No Description Price (each) Stock
14F0198CP AIRBOX - LH Enquire To Order
Photo Part No Description Price (each) Stock
14F0201CP AIRBOX - RH $548.37 To Order
14FA250CP AIRBOX - RH $543.81 To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
00RL027 STUD - M6X20 - BIG HEAD ROUND Enquire To Order
Photo Part No Description Price (each) Stock
14FA175CP NVH - AIRBOX - LH $60.90 To Order
Photo Part No Description Price (each) Stock
14FA176CP NVH - AIRBOX - RH $60.90 To Order

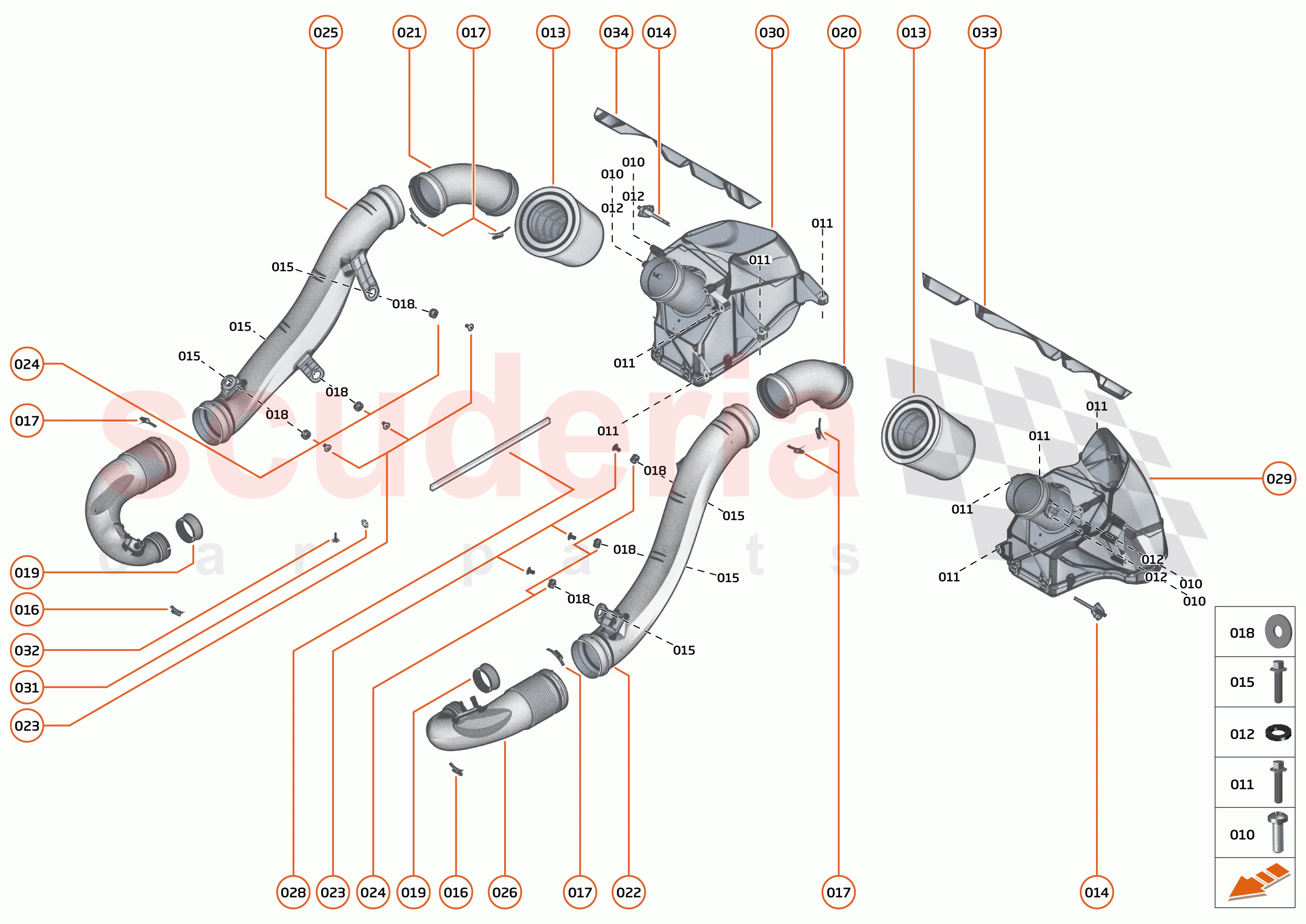

27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA464
SCREW - M4X12 - BUTTON HEAD - SOCKET 		- 4
PE
 Enquire
011 00RA606
BOLT - M8X1.25 - HEX 		- 8
PE
 Enquire
012 00RC027
WASHER - M4 FORM C - LARGE 		- 2
PE
 Enquire
013 14F0200CP
FILTER - AIR - ENGINE 		$164.98 1
TO
014 14F0362CP
SENSOR - MASS AIR FLOW 		$299.89 2
TO
015 00RA073
SCREW - M6X30 - HEX 		- 1
PE
 Enquire
016 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 2
PE
 Enquire
017 00RB031
CLAMP - HOSE - 90-110 		- 6
PE
 Enquire
018 00RC043
WASHER - M6XOD25 		- 1
PE
 Enquire
019 11F0471CP
SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE 		$30.44 2
TO
020 14F0203CP
HOSE - CLEAN AIRBOX TO DUCT - LH 		$109.94 1
TO
021 14F0204CP
HOSE - CLEAN AIRBOX TO DUCT - RH 		$109.94 1
TO
022 14FA117CP
DUCT - CLEAN AIR - LH 		$191.32 1
TO
023 11F0889CP
SPACER - TOPHAT - AIRBOX 		$20.29 1
TO
024 14F0586CP
GROMMET - CLEAN AIR BOX 		$1.61 1
TO
025 14FA119CP
DUCT - CLEAN AIR - RH 		$191.32 1
TO
026 22FA024GP
HOSE CLEAN AIR LH-DUCT TO TC 		$172.62 1
TO
027 22FA025GP
HOSE CLEAN AIR RH-DUCT TO TC 		$172.62 1
TO
028 14F0670CP
SEAL - DIRTY AIR DUCT TO AIRBOX 		$12.17 1
TO
029 14F0198CP
AIRBOX - LH 		- 1
PE
 Enquire
030 14F0201CP
AIRBOX - RH 		$548.37 1
TO
030 14FA250CP
AIRBOX - RH 		$543.81 1
TO
031 00RC039
WASHER - M6 - STAR LOCK 		- 5
PE
 Enquire
032 00RL027
STUD - M6X20 - BIG HEAD ROUND 		- 5
PE
 Enquire
033 14FA175CP
NVH - AIRBOX - LH 		$60.90 1
TO
034 14FA176CP
NVH - AIRBOX - RH 		$60.90 1
TO
