McLaren GT - 26 - NVH - HEAT INSULATION - 26.2 - INSULATION - VEHICLE MOUNTED

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
00RG054 CLIP - FIRTREE - 8X14 Enquire To Order
Photo Part No Description Price (each) Stock
14E0066CP HEATSHIELD - BULKHEAD - RH $161.11 To Order
Photo Part No Description Price (each) Stock
00RA146 SCRIVET - DIA 8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
14H0083CP GASKET - BULKHEAD $14.21 To Order
Photo Part No Description Price (each) Stock
14E0074CP NVH - BULKHEAD - CENTRE $75.52 To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15EA014CP HEATSHIELD - BULKHEAD - LH $385.87 To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
00RB194 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC016 WASHER - M6X12.5X1.8 Enquire To Order
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
22EA017GP CHIMNEY SUPPORT BKT LWR-RH $45.68 To Order
Photo Part No Description Price (each) Stock
22EA024GP CHIMNEY TAIL LH $91.37 To Order
Photo Part No Description Price (each) Stock
22EA025GP CHIMNEY TAIL RH $91.37 To Order
Photo Part No Description Price (each) Stock
22EA056GP HEATSHIELD MUFFLER UPR-FR-LH $111.69 To Order
Photo Part No Description Price (each) Stock
22EA057GP HEATSHIELD MUFFLER UPR-RR $304.64 To Order
Photo Part No Description Price (each) Stock
22EA069GP HEATSHIELD MUFFLER LWR-FR-LH $182.79 To Order
Photo Part No Description Price (each) Stock
22EA131GP HEATSHIELD MUFFLER UPR-RR - FEDERAL - FROM MY22 ONWARDS Enquire To Order
22EA058GP HEATSHIELD MUFFLER LWR-RR $467.13 To Order
22EA130GP HEATSHIELD MUFFLER LWR-RR - FEDERAL - FROM MY22 ONWARDS Enquire To Order
Photo Part No Description Price (each) Stock
22EA059GP HEATSHIELD MUFFLER UPR-FR-RH $111.69 To Order
Photo Part No Description Price (each) Stock
22EA070GP HEATSHIELD MUFFLER LWR-FR-RH $192.93 To Order
Photo Part No Description Price (each) Stock
22EA009GP SUPPORT BKT-HS MUFFLER UPR- FR-RH $50.76 To Order
Photo Part No Description Price (each) Stock
22EA014GP CHIMNEY SUPPORT BKT - RR- LH $45.68 To Order
Photo Part No Description Price (each) Stock
22EA015GP CHIMNEY SUPPORT BKT - RR- RH $45.68 To Order
Photo Part No Description Price (each) Stock
22EA016GP MUFFLER SUPPORT BKT - RR-RH $49.25 To Order
Photo Part No Description Price (each) Stock
22EA018GP CHIMNEY SUPPORT BKT - FR- LH $48.35 To Order
Photo Part No Description Price (each) Stock
22EA019GP CHIMNEY SUPPORT BKT - FR- RH $48.35 To Order
Photo Part No Description Price (each) Stock
22EA020GP MUFFLER SUPPORT BKT- RR-LH $49.25 To Order
Photo Part No Description Price (each) Stock
22EA006GP HEATSHIELD CHIMNEY INT- LH Enquire To Order
Photo Part No Description Price (each) Stock
22EA007GP HEATSHIELD CHIMNEY INT- RH Enquire To Order
Photo Part No Description Price (each) Stock
22EA012GP HEATSHIELD CHIMNEY OUT- RH Enquire To Order
Photo Part No Description Price (each) Stock
22EA013GP HEATSHIELD CHIMNEY OUT- LH Enquire To Order
Photo Part No Description Price (each) Stock
22EA008GP SUPPORT BKT-HS MUFFLER UPR- FR-LH $50.76 To Order
Photo Part No Description Price (each) Stock
22EA021GP CHIMNEY SUPPORT BKT LWR-LH $45.68 To Order

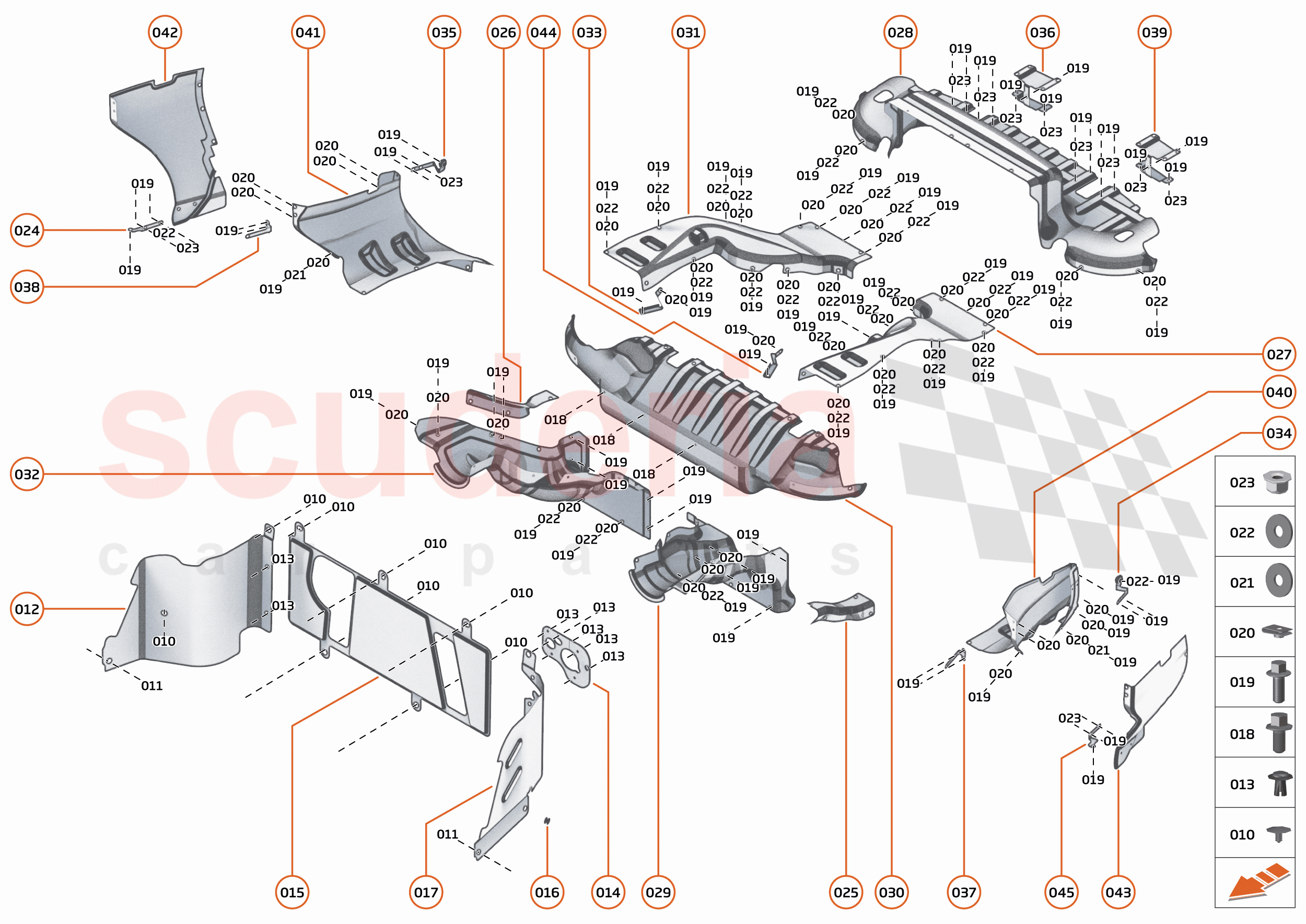

26 - NVH - HEAT INSULATION - 26.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RG003
FIRTREE 7.2X15X24 		- 3
PE
 Enquire
011 00RG054
CLIP - FIRTREE - 8X14 		- 1
PE
 Enquire
012 14E0066CP
HEATSHIELD - BULKHEAD - RH 		$161.11 1
TO
013 00RA146
SCRIVET - DIA 8 X 14 		- 2
PE
 Enquire
014 14H0083CP
GASKET - BULKHEAD 		$14.21 1
TO
015 14E0074CP
NVH - BULKHEAD - CENTRE 		$75.52 1
TO
016 00RM005
ANIXTER RIVET - BLACK 		- 2
PE
 Enquire
017 15EA014CP
HEATSHIELD - BULKHEAD - LH 		$385.87 1
TO
018 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 3
PE
 Enquire
019 00RA087
SCREW - M5X10 - HEX 		- 3
PE
 Enquire
019 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
020 00RB183
CLIP - U NUT - M6 		- 4
PE
 Enquire
020 00RB194
CLIP - U NUT - M6 		- 1
PE
 Enquire
021 00RC016
WASHER - M6X12.5X1.8 		- 4
PE
 Enquire
021 00RC017
WASHER - M5X15X1.2 		- 14
PE
 Enquire
022 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 10
PE
 Enquire
023 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
024 22EA017GP
CHIMNEY SUPPORT BKT LWR-RH 		$45.68 1
TO
025 22EA024GP
CHIMNEY TAIL LH 		$91.37 1
TO
026 22EA025GP
CHIMNEY TAIL RH 		$91.37 1
TO
027 22EA056GP
HEATSHIELD MUFFLER UPR-FR-LH 		$111.69 1
TO
028 22EA057GP
HEATSHIELD MUFFLER UPR-RR 		$304.64 1
TO
029 22EA069GP
HEATSHIELD MUFFLER LWR-FR-LH 		$182.79 1
TO
030 22EA131GP
HEATSHIELD MUFFLER UPR-RR - FEDERAL - FROM MY22 ONWARDS 		- 1
PE
 Enquire
030 22EA058GP
HEATSHIELD MUFFLER LWR-RR 		$467.13 1
TO
030 22EA130GP
HEATSHIELD MUFFLER LWR-RR - FEDERAL - FROM MY22 ONWARDS 		- 1
PE
 Enquire
031 22EA059GP
HEATSHIELD MUFFLER UPR-FR-RH 		$111.69 1
TO
032 22EA070GP
HEATSHIELD MUFFLER LWR-FR-RH 		$192.93 1
TO
033 22EA009GP
SUPPORT BKT-HS MUFFLER UPR- FR-RH 		$50.76 1
TO
034 22EA014GP
CHIMNEY SUPPORT BKT - RR- LH 		$45.68 1
TO
035 22EA015GP
CHIMNEY SUPPORT BKT - RR- RH 		$45.68 1
TO
036 22EA016GP
MUFFLER SUPPORT BKT - RR-RH 		$49.25 1
TO
037 22EA018GP
CHIMNEY SUPPORT BKT - FR- LH 		$48.35 1
TO
038 22EA019GP
CHIMNEY SUPPORT BKT - FR- RH 		$48.35 1
TO
039 22EA020GP
MUFFLER SUPPORT BKT- RR-LH 		$49.25 1
TO
040 22EA006GP
HEATSHIELD CHIMNEY INT- LH 		- 1
PE
 Enquire
041 22EA007GP
HEATSHIELD CHIMNEY INT- RH 		- 1
PE
 Enquire
042 22EA012GP
HEATSHIELD CHIMNEY OUT- RH 		- 1
PE
 Enquire
043 22EA013GP
HEATSHIELD CHIMNEY OUT- LH 		- 1
PE
 Enquire
044 22EA008GP
SUPPORT BKT-HS MUFFLER UPR- FR-LH 		$50.76 1
TO
045 22EA021GP
CHIMNEY SUPPORT BKT LWR-LH 		$45.68 1
TO
