McLaren GT - 24 - LUBRICATION SYSTEM OFF - ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
22FA090GP ASSY PIPE OIL FEED TO ENGINE $264.02 To Order
Photo Part No Description Price (each) Stock
22FA094GP O-RING 29 X 2.5MM $14.21 To Order
Photo Part No Description Price (each) Stock
00RB023 CLIP SPACER - 1MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
22FA096GP ASSY PIPE RETURN TO TANK $243.70 To Order

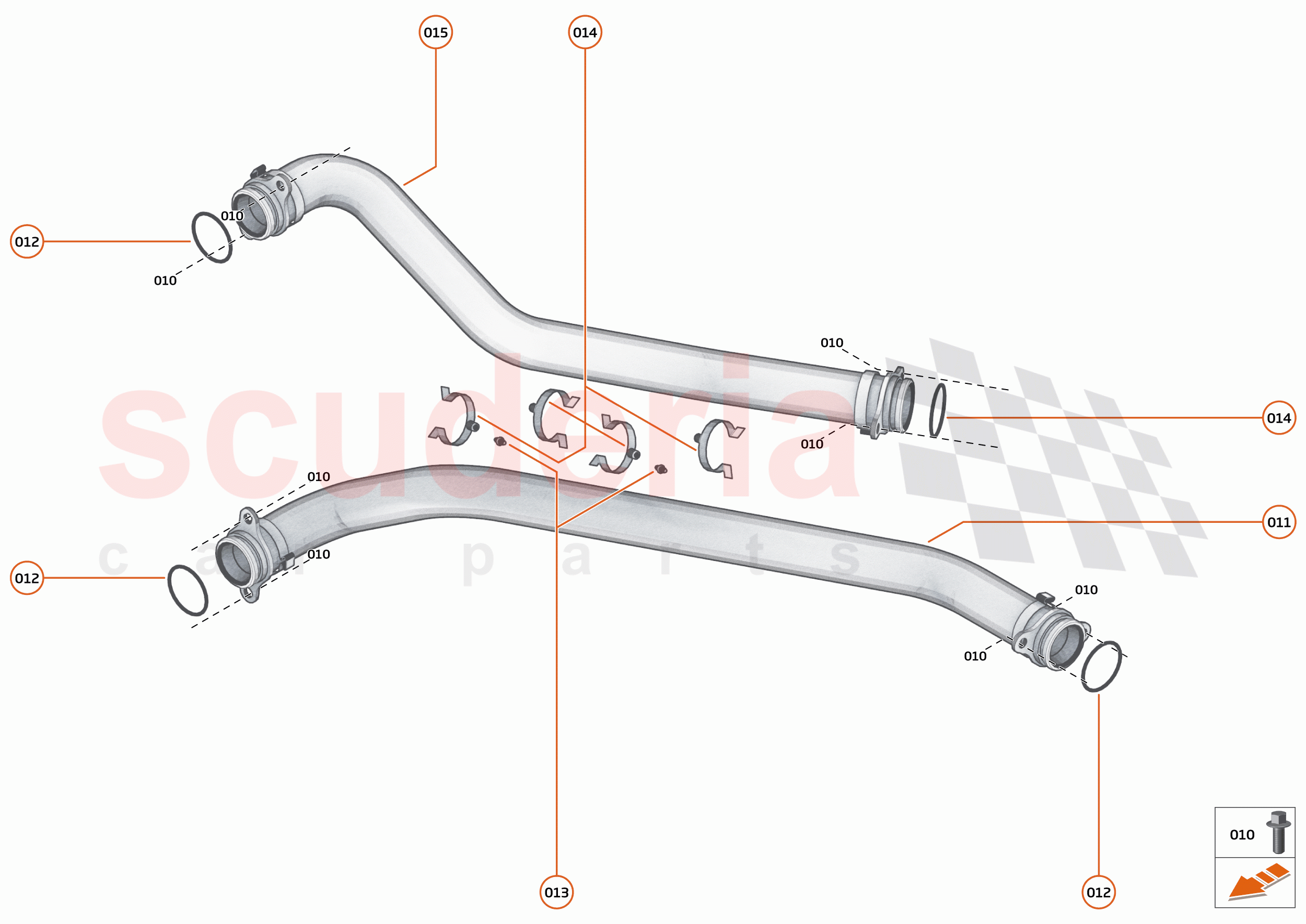

24 - LUBRICATION SYSTEM OFF - ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
011 22FA090GP
ASSY PIPE OIL FEED TO ENGINE 		$264.02 1
TO
012 22FA094GP
O-RING 29 X 2.5MM 		$14.21 2
TO
013 00RB023
CLIP SPACER - 1MM - MALE 		- 2
PE
 Enquire
014 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 4
PE
 Enquire
015 22FA096GP
ASSY PIPE RETURN TO TANK 		$243.70 1
TO
016 22FA092GP
END FITTING PIPE OIL FEED TO ENGINE 		$22.76 1
TO
017 22FA093GP
FIXING FLANGE PIPE OIL FEED TO ENGINE 		$8.33 1
TO
018 22FA095GP
CLAMP-STEPLESS EAR-OETIKER-33.1-706 		$6.27 1
TO
